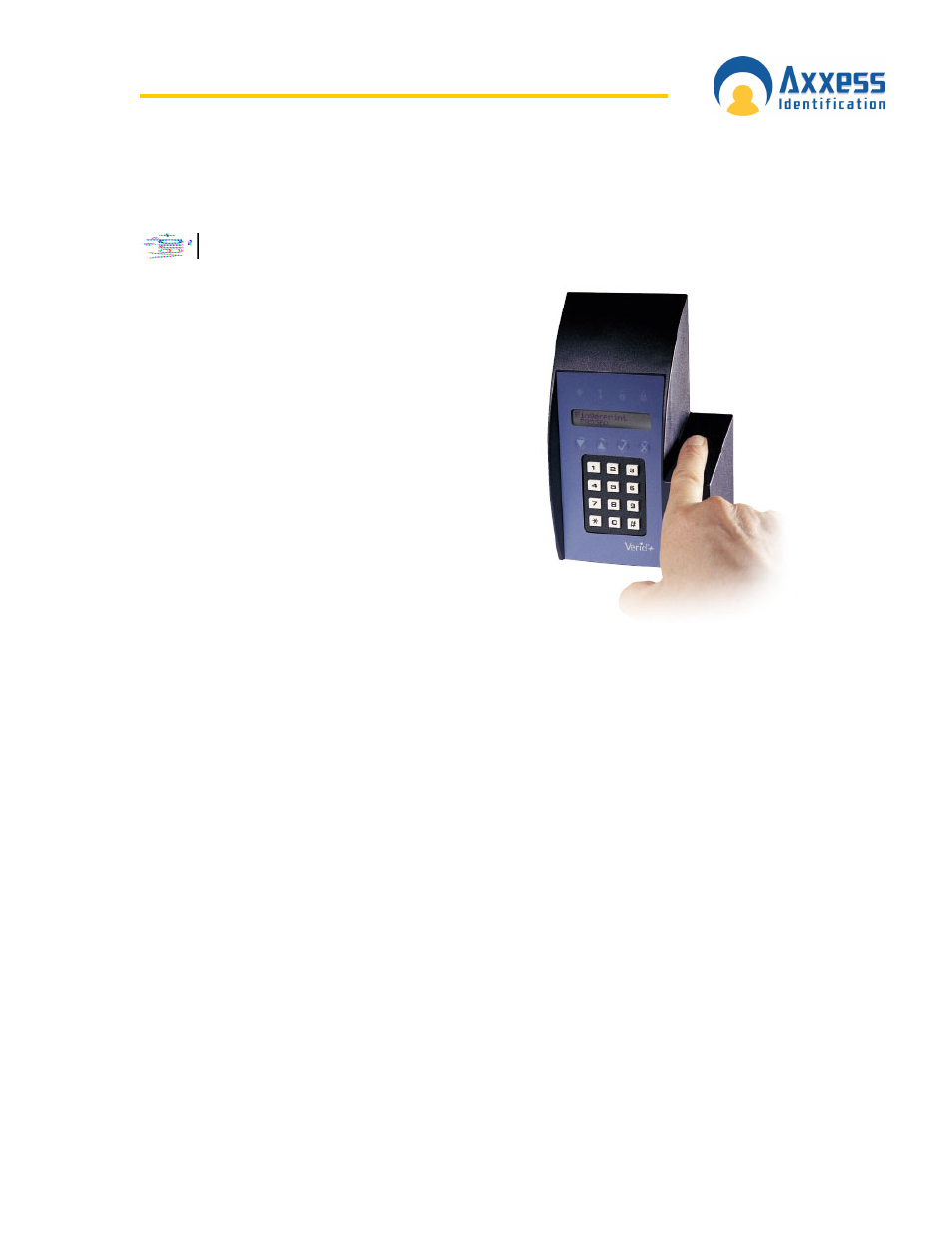

Fingerprint Reader

The Verid + fingerprint verification units are
standalone devices, designed to provide access
control system with instant improved security, or to
act as a means of identity verification in a wide range
of different applications.
The Verid + fingerprint verification units are available
as 3 variants: 1. Verid +, 2.Verid + PIN and 3.Verid +
PROX.
When used in an access control system, Verid + is
installed between the existing PIN device and door
controller, and confirms the identity of the person.

Connection Details

12V input power must be connected to J2 terminal
block located on the rear plate of the fingerprint
reader. Data0 (D0) & Clock (D1) connections on J3
terminal block are wired into Data0 (D0) & Data1 (D1)
connections on the AX100 Controller respectively.
The Power for AXP Proximity reader is taken from J6
block and D0 & D1 wires are connected to J7 terminal block. The required connections to and
from Verid+ are listed in the table below.
