ASSEMBLY INSTRUCTIONS

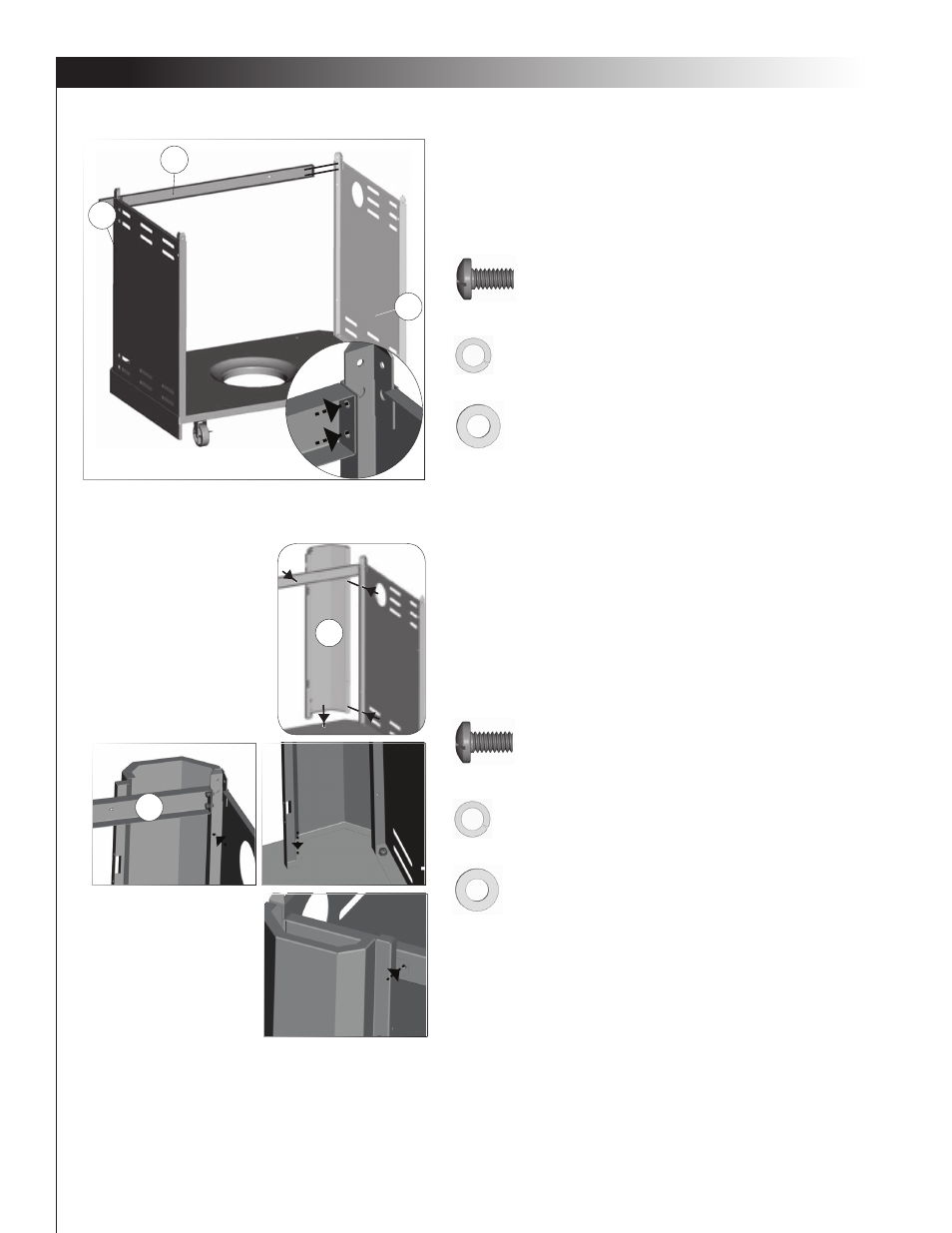

3. Attach the Front Brace (CJ) to the Left and right cart side
panels (EA and EB)
TIP: One person should align the left side, while the
second person assembles the right side.
3
EB
CJ
EA
Back view
4
4. Assemble the Left and right Pillars (EC and ED), to the cart
side panels, as shown in fi gure A and B.
Next, assemble the left and right pillars to the Front brace
(CJ) and the Bottom shelf (EG), as shown in fi gure C and D.
TIP: One person should align the left side, while the
second person assembles the right side.
A
B D
C
EC
CJ
#6 - NO. 10-24UNCx10 Screw (x4)
#7 - ø5 Lock Washer (x4)
#8. ø5 Washer (x4)
#6 - NO. 10-24UNCx10 Screw (x8)
#7 - ø5 Lock Washer (x8)
#8. ø5 Washer (x8)
