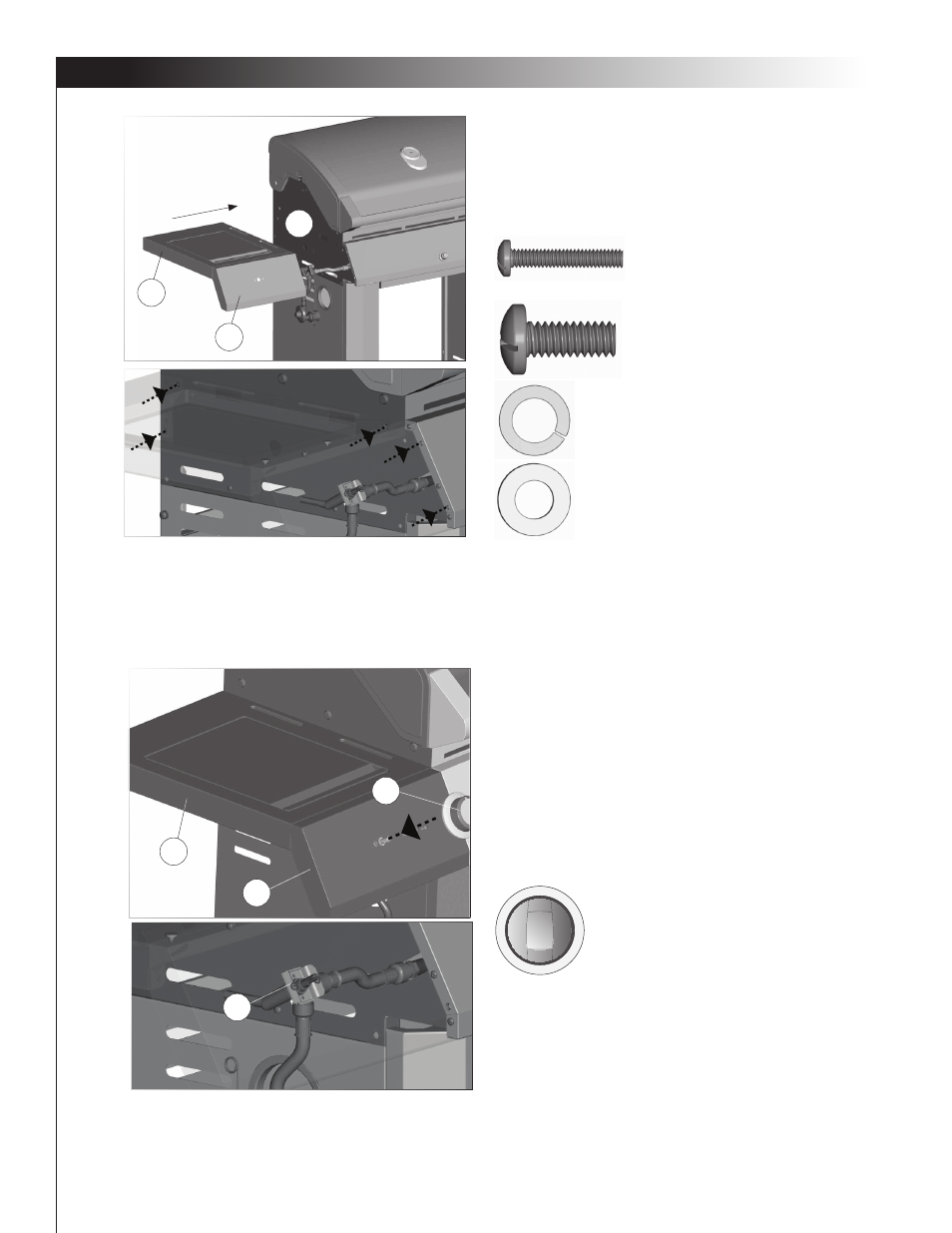

ASSEMBLY INSTRUCTIONS
DA
DB
*
11. Remove the hardware that is pre-assembled to
the side burner valve bracket(CC), as shown in
fi gure B. Insert the side burner valve stem through
the rear of the left side shelf fascia(DB). Assemble
the side burner valve to the side shelf fascia, using
the hardware removed.
Assemble the side burner control knob (#12) to
the side burner valve (CC).
Hardware may be included with the hardware pack.
11
DA
DB
12
A
B
TIP: To position the left side shelf, insert the two hooks
on the side shelf assembly into the two openings
located on the upper left side panel (BB).
10. Assemble the right side shelf assembly to the cart
assembly, as shown in fi gure B.
CC
B
*
BB
#4 - ø7 Lock Washer (x5)
#2 - ¼” - 20UNCx38 Screw (x1)
#5 - ø7 Washer (x5)
#3 - ¼” - 20UNCx16 Screw (x4)
#12. Knob (x1)
