Centro 3800 User Manual
Page 10

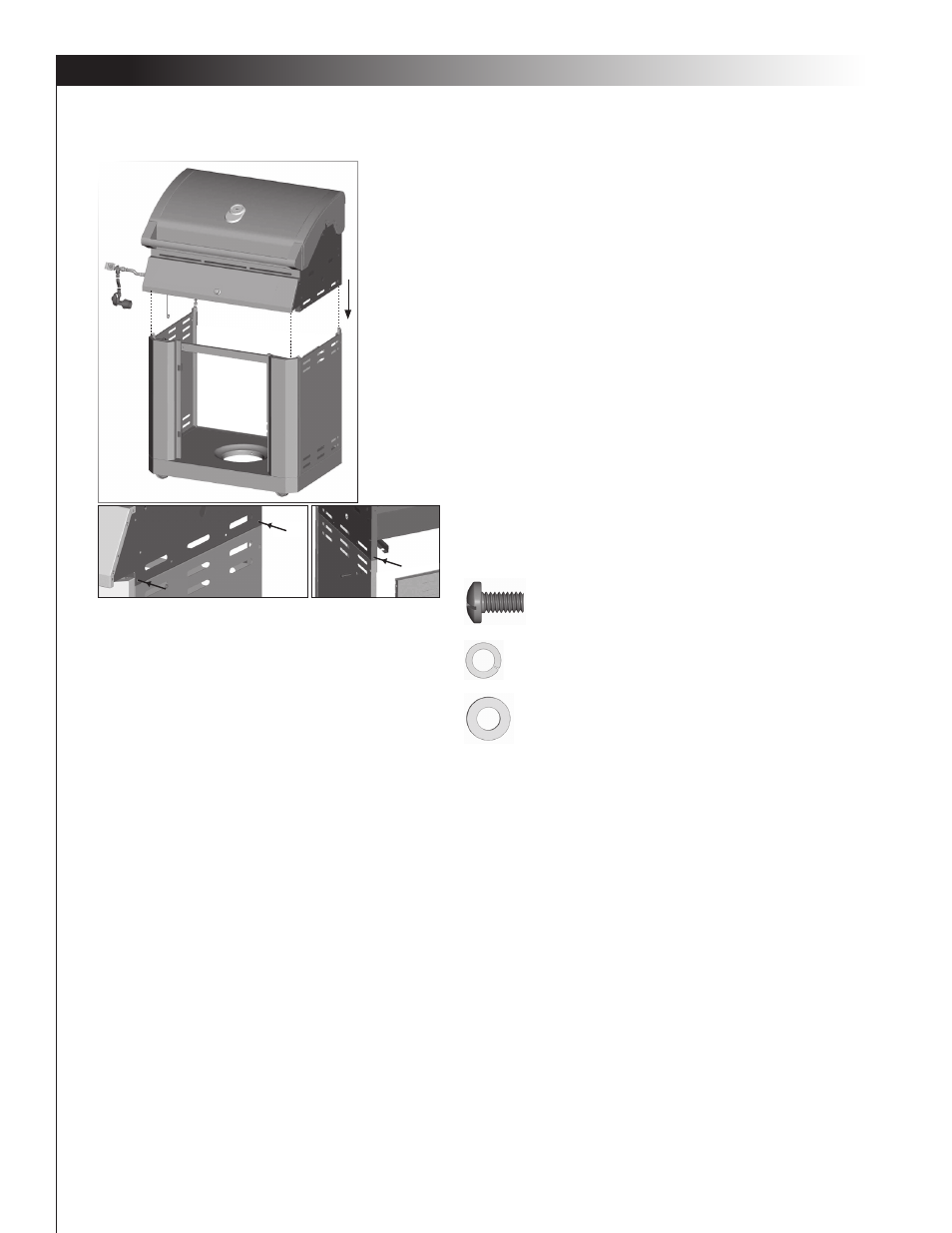

5a. Position the top lid and burner box assembly (A and B)
onto cart assembly (C) as shown.
5b. Use the hardware to connect both parts, on the left
and right sides, at the three points indicated in Figure B
and C.
5
THIS STEP REQUIRES 3 OR MORE PEOPLE.
DO NOT ATTEMPT ALONE. EXTREMELY HEAVY.
ASSEMBLY INSTRUCTIONS
B
C
A
#6 - NO. 10-24UNCx10 Screw (x6)
#7 - ø5 Lock Washer (x6)
#8. ø5 Washer (x6)
