Centro 3800 - Manual (Page 15)

13
For propane model only.

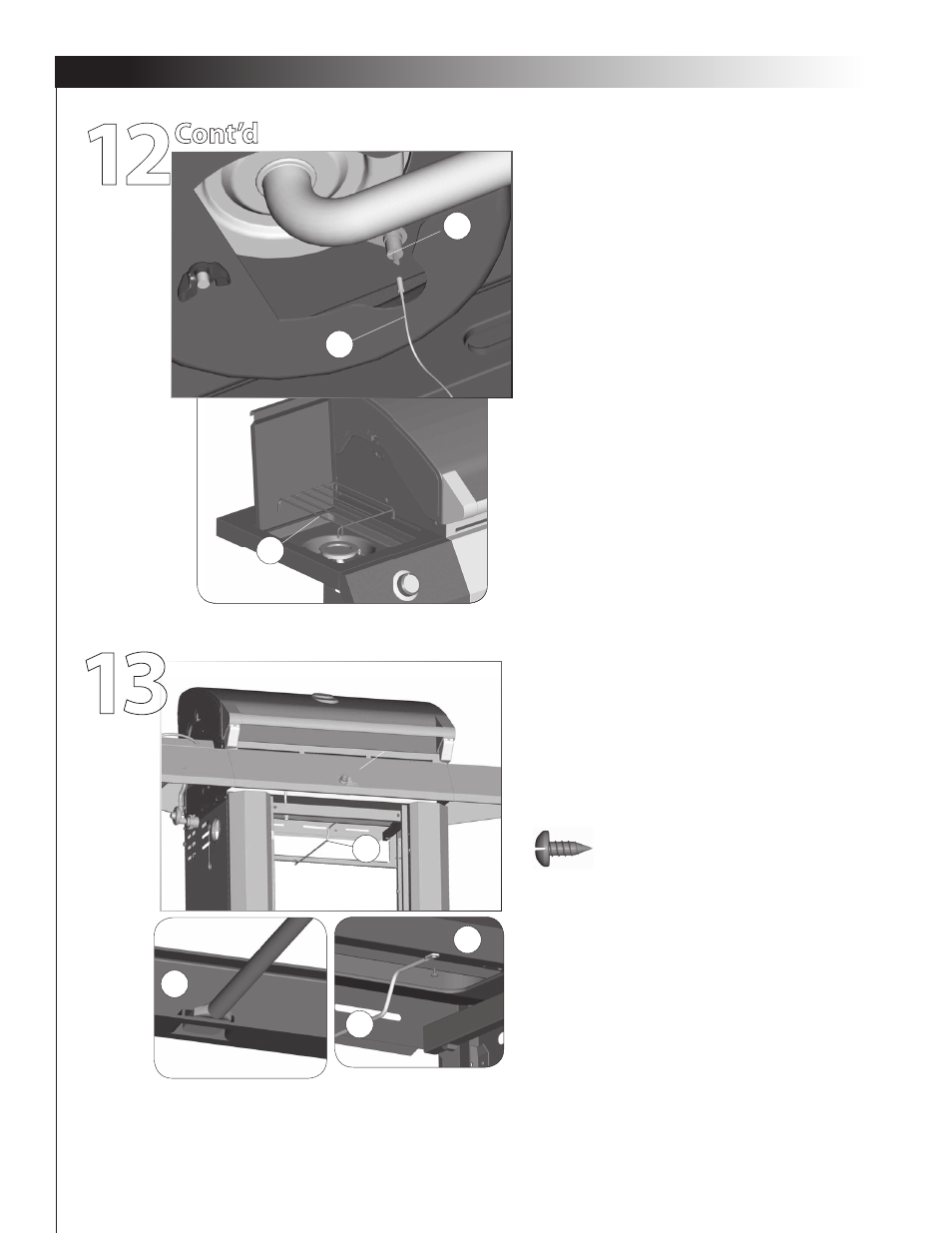

13. Insert the fl at end of the Tank Exclusion Bar
(CN) into the groove on the upper back
panel (CO), as shown in fi gure B. Next,
attach the tank exclusion bar (CN) to the
Front Brace (CJ) using the self tapping, as
shown in fi gure C.
#9 - ST4.2x10 Tapping Screw (x1) CN
CO
ASSEMBLY INSTRUCTIONS
CJ
12
Cont’d
12d. Attach the end of the side burner electrode
wire (DD2) to the underside of the side
burner electrode, as shown in fi gure D.
Ensure that the wire is pushed in fi rmly.
12e. Place the side burner cooking grate(DE)
into postion on the side burner shelf, as
shown in fi gure E.
DC
DE
D
E
C
B
CN
DD2
