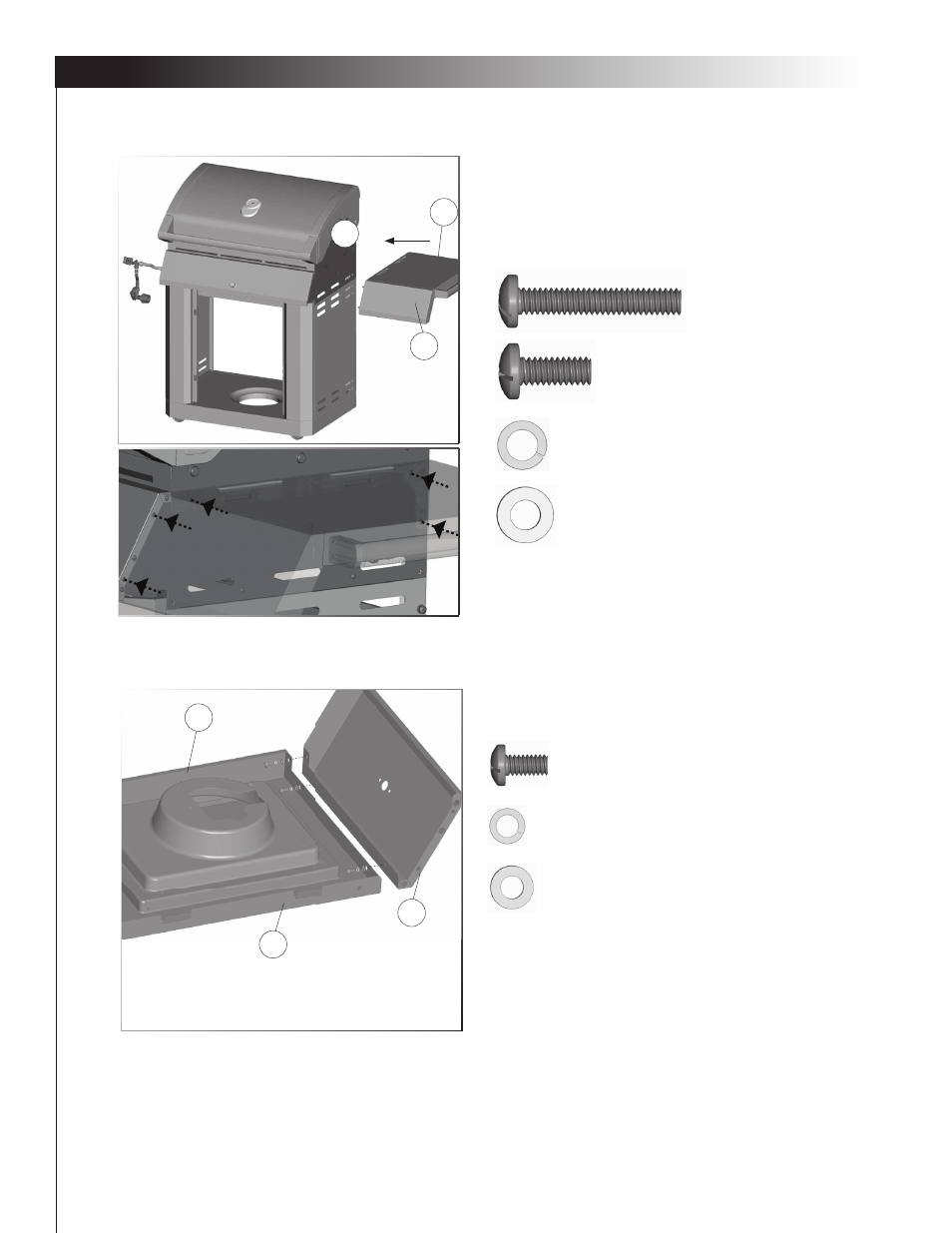

9 9. Attach the left shelf fascia (DB) to the left side shelf
table (DA).
DA
DC
DB
Front
ASSEMBLY INSTRUCTIONS
8
TIP: To position the right side shelf, insert the two hooks
on the side shelf assembly into the two openings
located on the right upper side panel (BC).
8. Assemble the right side shelf assembly to the cart
assembly, as shown in fi gure B.
DG
DH
*
B
*
#4 - ø7 Lock Washer (x5)
#2 - ¼” - 20UNCx38 Screw (x1)
#5 - ø7 Washer (x5)
#3 - ¼” - 20UNCx16 Screw (x4)
BC
#6 - NO. 10-24UNCx10 Screw (x3)
#7 - ø5 Lock Washer (x3)
#8. ø5 Washer (x3)
