CATEYE STRADA
Quick Start Manual
How to install the speed sensor
Fixing the wire
Winding the wire
(Installation is completed)
Adjust the clearance between
the speed sensor and magnet
Adjust the positions of the
speed sensor and magnet
Install the magnet
Install the speed sensor

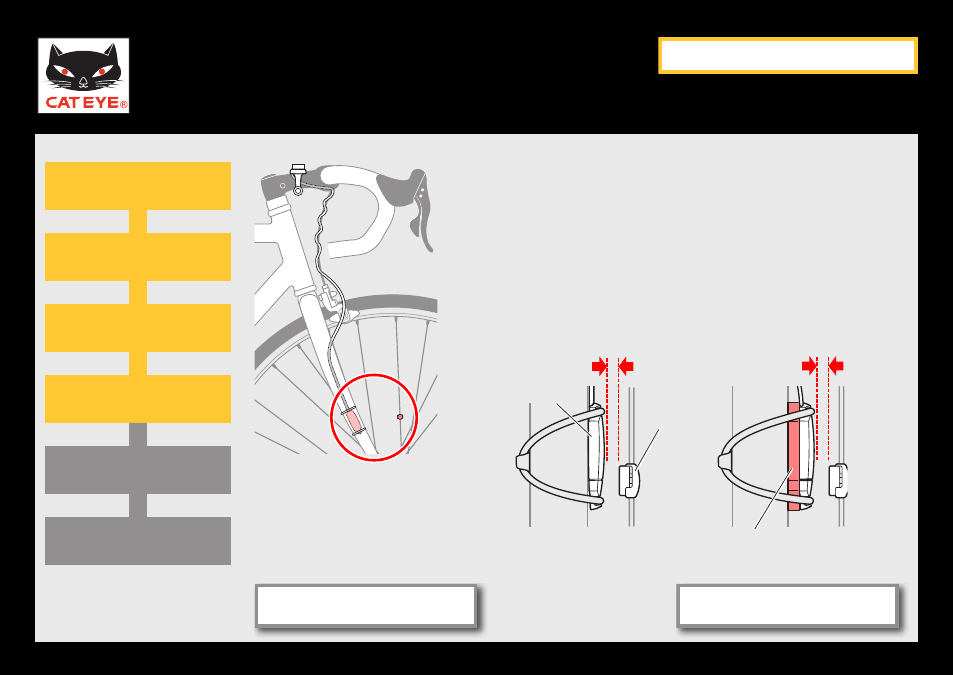

Adjust the clearance between the speed
sensor and magnet
Adjust the clearance between the speed sensor and
magnet so that it is within 5 mm.
When the clearance with the magnet is more than
5 mm, install the speed sensor with 1 to 3 sensor
rubber pads in layers.
5 mm 5 mm
or
Magnet
Speed sensor
Sensor rubber pad
(1 to 3 sheets)
