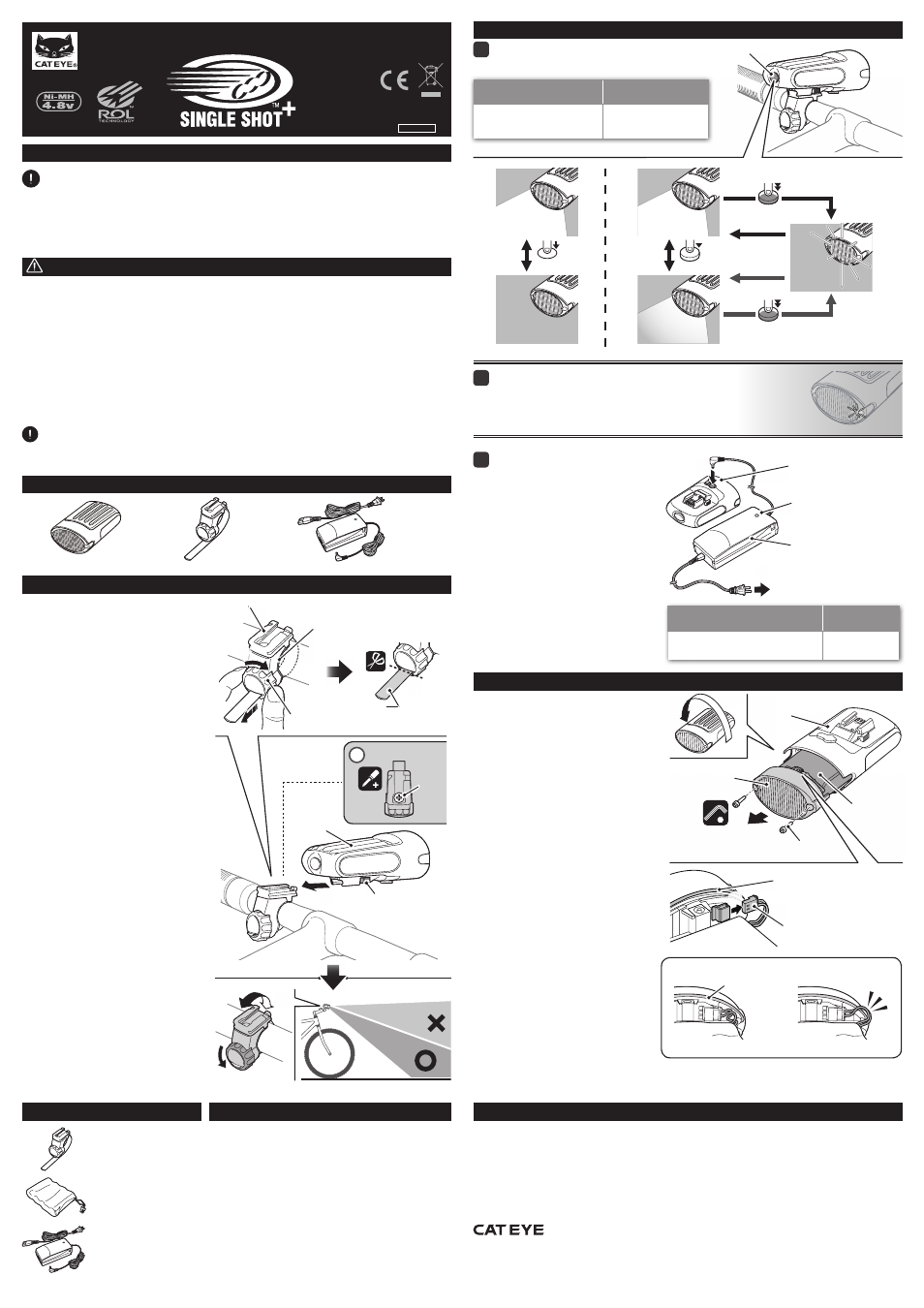

CatEye HL-EL610RC [Single Shot Plus] - Manual

HL-EL610RC
CATEYE SINGLE SHOT PLUS
Pat. and Design Pat. Pending
Copyright© 2009 CATEYE Co., Ltd.
EL61RC-091210 066640131 2
*1
Dial
Screw
Release button
Bracket rubber pad
Bracket
Bracket strap
Light unit
2
3
4
6
ON
OFF
Hi
Low
Flash
2 sec.
Double press
Double press
Switch
Charge jack
Battery charger
To AC power outlet
Battery indicator
1
2
Charging Indicator
x1
#533-8827
H34 Bracket
#534-1865N
NiMH 4.8v 2500mAH
UL:#534-1866
UK:#534-1867
EC:#534-1868
AS:#534-1870
CHR-2700mAH 4.8v NiMH
SPARE PARTS
2
3
1
Screw
Lens unit
Battery
Body
Battery connector
Rubber packing
OK NO!
Back side of lens
Rubber packing
Service & Research Address for USA
CATEYE Service and Research Center 1705 14th St. 115 Boulder, CO 80302
Phone : 303.443.4595 Toll Free : 800.5CATEYE Fax : 303.473.0006 E-mail : [email protected] URL : http://www.cateye.com
CO.,LTD.
2-8-25, Kuwazu, Higashi Sumiyoshi-ku, Osaka 546-0041 Japan
Attn : CATEYE Customer Service Section Phone : (06)6719-6863 Fax : (06)6719-6033 E-mail : [email protected] URL : http://www.cateye.co.jp
Standard charg-
ing time
Blinking red light : Charging
Green light : Charging is completed Approx. 4 hours
Charging indicator state
ON ↔ OFF : Long press
Hi ↔ Low : Single press
Flash : Quick double press
Hi : About 3 hours
Low : About 9 hours
Flash : About 36 hours
Switch
Standard continu-
ous lighting time
FOR SAFE OPERATION
Do not place it within children's reach. •
In preparation for unexpected battery shutoff, we recommend you carry a dry-cell •
battery light unit with you.
If the light unit or parts become dirty with mud, etc., clean with a soft cloth which is •
moistened with mild soap. Never apply paint thinner, benzine or alcohol; damage
will result.
Mount the light unit more than 10 cm away from the wireless meter. When it is •
mounted too close, the transmission may be affected adversely.
This product has waterproof features that allow you to use it in rain. Do not use it •
soaked in water.
Before Initial Use
Before shipment, it is charged enough to check the light. Be sure to charge it before use,
according to the instructions "How to charge."
INTRODUCTION
Before using the light, please read this manual and the attached “NiMh
Batteries” thoroughly, and keep them for future reference.
Thank you very much for purchasing the CATEYE "SINGLE SHOT PLUS HL-EL610RC."
This product is a high power rechargeable light unit that integrates a high power LED and
a nickel metal-hydride rechargeable battery into a compact body.
SPECIFICATIONS
Light source High power white LED x 2
Battery NiMH 4.8v 2500mAH
Battery charger CHR-2700mAH 4.8v NiMH
Operating time Hi : Approx. 3 hours
Low : Approx. 9 hours
Flash : Approx. 36 hours
Standard charging time
Approx. 4 hours
Temperature range Charging : 32˚F – 104˚F (0˚C – 40˚C)
Operating : 5˚F – 113˚F (-15˚C – 45˚C)
Recharge/discharge number of times
About 300 times (until the rated capacity drops to
50%)
Dimensions/weight 4-3/32” x 2-29/32” x 1-11/16” (104 x 74 x 43 mm) /
8.92 oz (253 g)
The specifi cations and design are subject to change without notice. *
3 How to charge
Open the charge jack cover at the 1
back of the light unit to connect the
battery charger plug.
Plug the battery charger to an
2
AC outlet.
After charging, remove the plug
3
and close the charge jack cover.
HOW TO MOUNT
HOW TO REPLACE BATTERY
HOW TO USE
1 Lighting (lighting pattern selection)
The lighting pattern is selected using a switch.
Be sure to use the special purpose battery *
charger.
Charging and lighting times are approximate
*
values, and will vary by environmental and
user conditions.
2 Remaining battery capacity
When the battery indicator lights up red, the bat-
tery is almost shutoff. Charge the battery as soon
as possible.
COMPONENTS
Light unit H34 Bracket
Battery charger
Wrap the bracket strap around the 1
handlebar, and put it in the dial.
Securely tighten the strap by turn-
2
ing the dial.
Cut off the excess bracket strap
3
extending from the dial.
I n s e r t t h e l i g h t u n i t t o
4
the bracket until it clicks.
To remove, pull out while pressing
the release button.
CAUTION!:
Make sure to tighten the dial by •
hand. If you tighten it too hard
with a tool, the screw threads may
be stripped.
When the angle adjustment on the •
right and left sides is loose, tighten
the screw (*1).
Round off the cut edge of the •
bracket strap to prevent injury.
How to Adjust Beam Angle
Slightly loosen the dial on the 5
bracket.
Adjust the light unit angle so that
6
the light is not directed to oncom-
ing cars.
When the dial is too fi rm to loosen, wash it *
slightly with water to loosen it.
Do not loosen the dial too much, or the bracket
*
strap may come off. Loosen the dial just enough
to allow the bracket to move slightly. Securely
tighten the dial after adjusting the strap.
It can also be adjusted 10 degrees to the left *
and right.
Turn over the light, and remove the 2 1
screws at the front of the lens using
a 2.5 mm Allen wrench.
Slowly pull out the lens unit from
2
the body.
Remove the battery connector con-
3
nected to the board, and replace it
with a new battery.
Place the battery on the tray, and
4
insert it to the body in place, and
secure it with 2 screws.
CAUTION!:
The lens unit is a precision part; •
therefore, never disassemble
it. Otherwise, the optimum light
distribution may be lost.
To maintain its waterproof features, •
assemble the lens unit with a rubber
packing-sheet correctly.
In order to avoid cable damage, •
when re-assembling the light,
make sure the battery cable is
placed inside the rubber seal as
shown below.
LIMITED WARRANTY
2-year Warranty: Light unit / Battery charger
(Deterioration of the battery is excluded.)
CatEye products are warranted to be free of defects from materials and workmanship for a period of 2 years from original
purchase. If the product fails to work due to normal use, CatEye will repair or replace the defect at no charge. Service must
be performed by CatEye or an authorized retailer. To return the product, pack it carefully and enclose the warranty certifi cate
(proof or purchase) with instruction for repair. Please write or type your name and address clearly on the warranty certifi cate.
Insurance, handling and transportation charges to CatEye shall be borne by person desiring service.
For UK and REPUBLIC OF IRELAND consumers, please return to the place of purchase. This does not affect your statutory rights.
ENG
