How to install the speed sensor
Fixing the wire
Adjust the clearance between
the speed sensor and magnet
Adjust the positions of the
speed sensor and magnet
Install the magnet
Winding the wire
(Installation is completed)
Install the speed sensor
Install the speed sensor

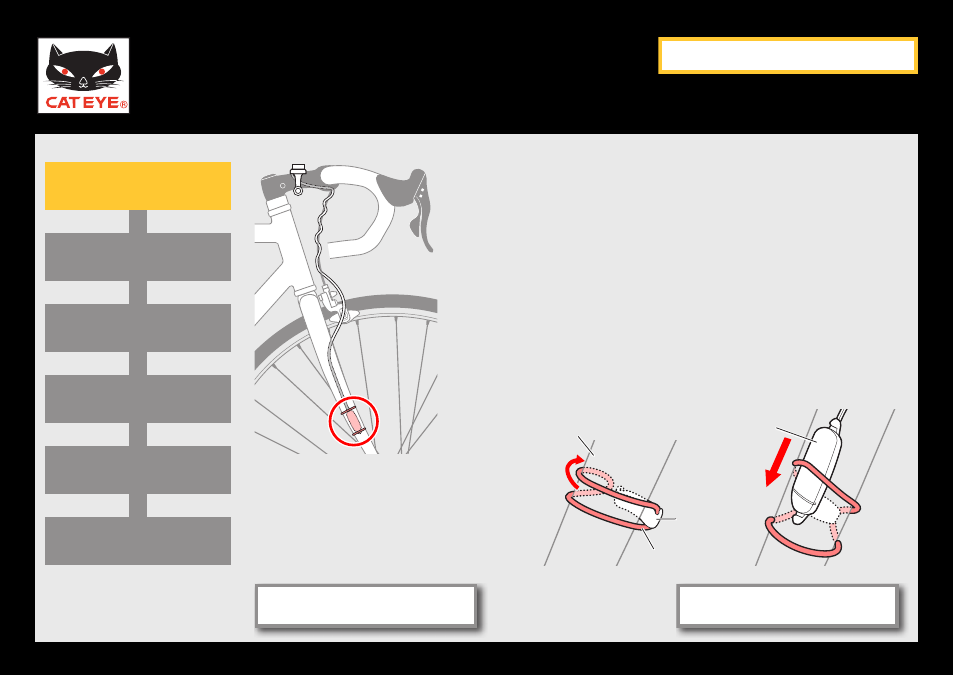

Select the suitable size for the front fork diameter of
your bicycle from two different sensor rubber bands.
1 Attach the sensor hook to the sensor rubber band,
and install it to the right front fork of your bicycle.
2 Pass the speed sensor through the sensor rubber band
installed. Install the sensor rubber band so that it fits
in the hook on the top and bottom of the sensor.
You may use nylon ties instead of the sensor rub- *
ber band.
Hook
Speed sensor Right front fork
Rubber band
