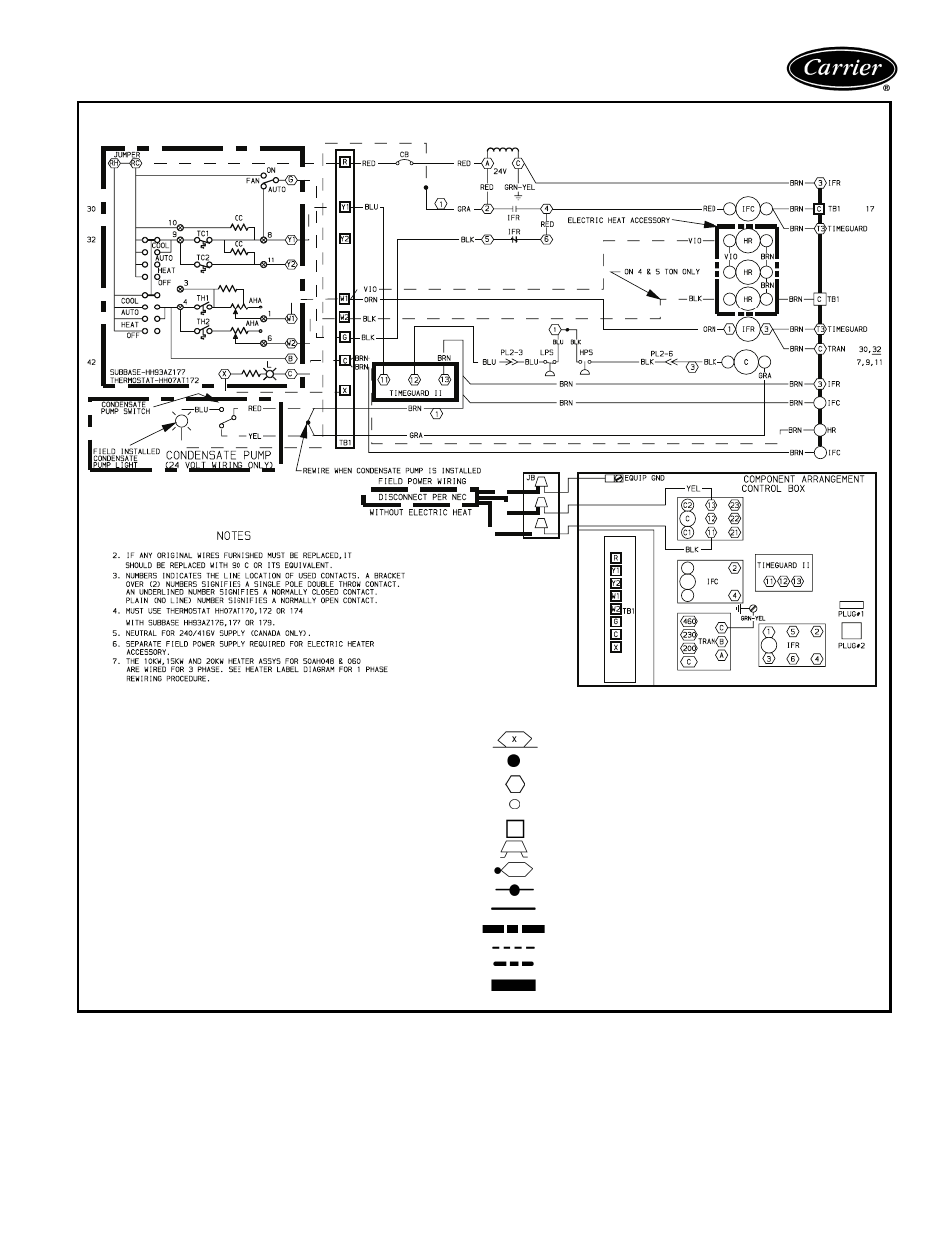

Typical wiring schematic

50AH048,060 — 230-1-60 UNITS

LEGEND

AHA

Adjustable Heat Anticipator

C

Contactor Compressor

CB

Circuit Breaker

CC

Cooling Compensator

EQUIP GND — Equipment Ground
HPS

High-Pressure Switch

HR

Heater Relay

IFC

Indoor (Evaporator) Fan Contactor

IFR

Indoor (Evaporator) Fan Relay

JB

Junction Box

L

Light

LPS

Low-Pressure Switch

NEC

National Electrical Code

PL

Plug Assembly

TB

Terminal Block

TC

Thermostat-Cooling

TH

Thermostat-Heating

TRAN

Transformer

Marked Wire

Denotes connection point between subbase and thermostat

Terminal (Marked)

Terminal (Unmarked)

Terminal Block

Field Splice

Splice (Marked)

Factory Splice

Factory Wiring

Accessory or Optional Wiring

Field Control Wiring

Field Power Wiring

To indicate common potential only not to represent wiring
