Installing the Memory Cooling Fan and Shroud
CAUTION:
See your System Information Guide for complete information about safety precautions,
working inside the computer, and protecting against electrostatic discharge.
1 Turn off the system and attached peripherals, and disconnect the system from the electrical
outlet.
2 Open the system.
3 Align the memory cooling fan and shroud tabs with the holes on the back panel.
See Figure 1-1.

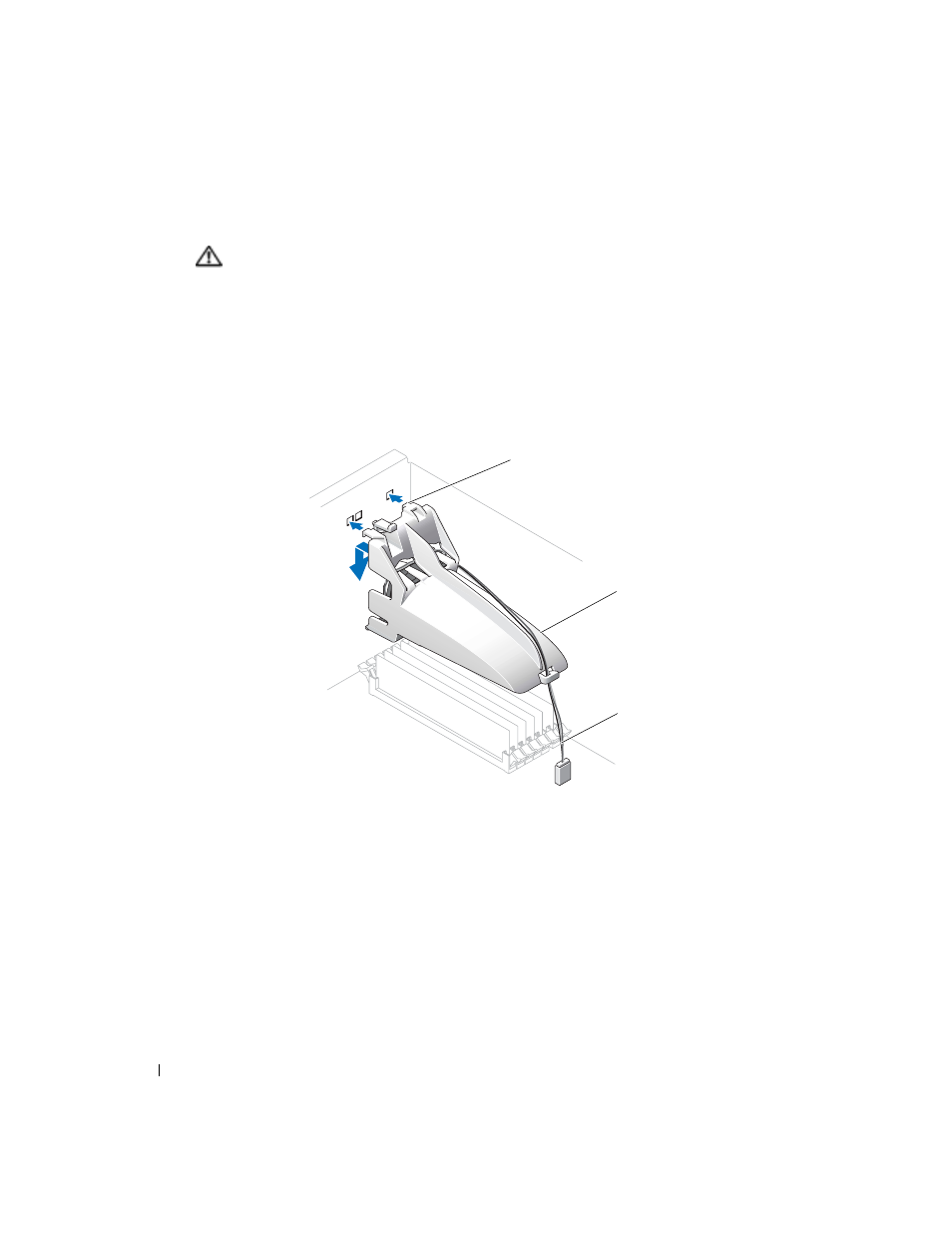

Figure 1-1. Installing the Memory Cooling Fan and Shroud
4 Insert the tabs and lower the memory cooling fan and shroud until it snaps into place.
5 Connect the memory cooling fan and shroud power cable to the system board. See Figure 1-1.
6 Close the system.
7 Reconnect the system to the electrical outlet, and turn on the system.
cooling fan
and shroud
shroud tabs (4)
power cable
