10

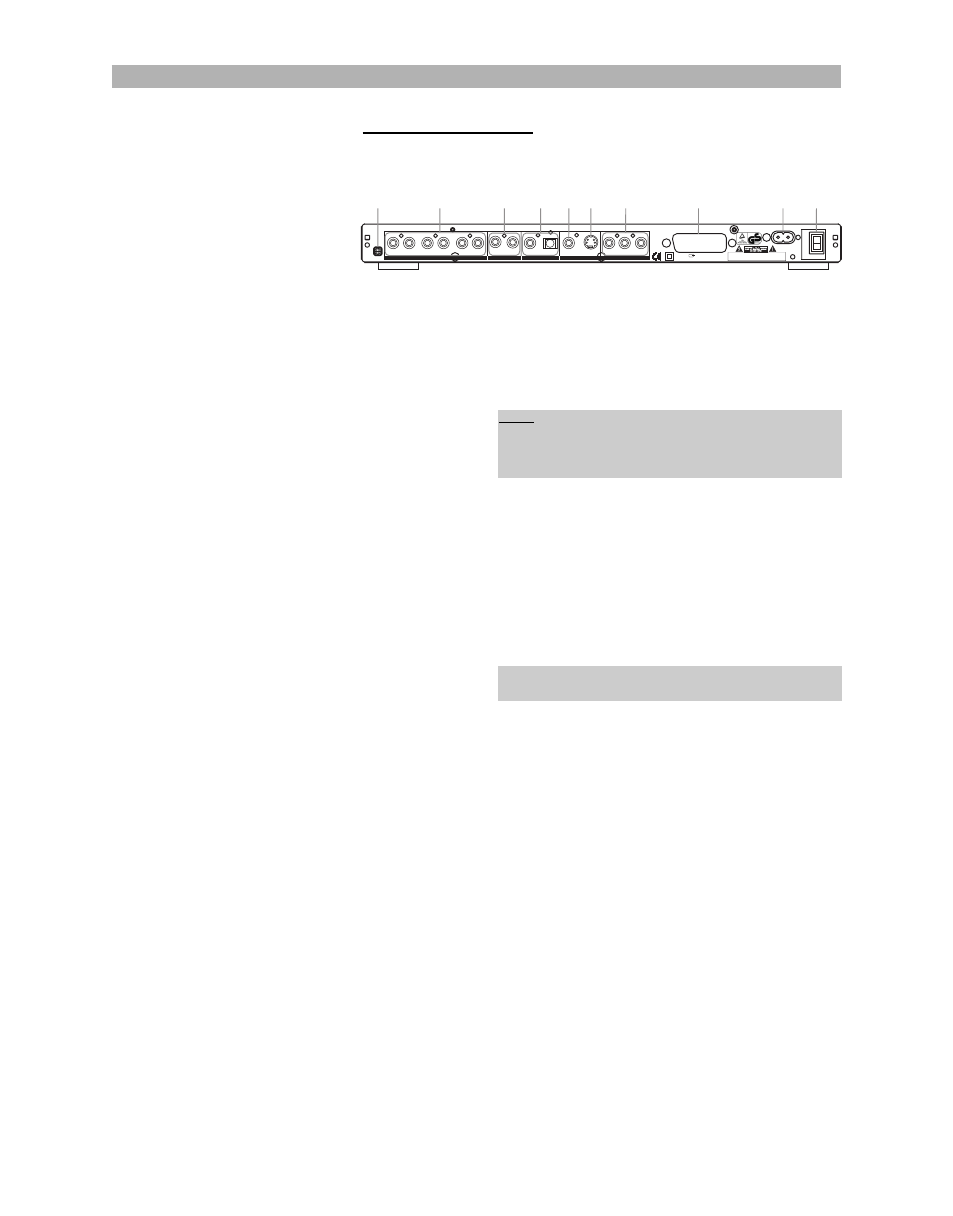

Operation of rear panel
1. REGION CODE: Indicates that the device is set to region code “2”.
2. 5.1 CHANNEL: 5.1 channel analogue audio outputs for connection to AV
receivers, amplifiers or active speaker systems.
3. AUDIO L/R: 2 channel analogue audio outputs (white/red socket) for
connection to a television, AV receiver, beamer or stereo
system.
4. DIGITAL: Digital coaxial/optical audio output for connection to a
digital audio device (amplifier/receiver). Please note that
the amplifier/receiver has to be compatible to dts, Dolby
Digital, MPEG and/or PCM (for more information please
refer to the manual of your amplifier/receiver).
5. VIDEO: Composite video output (yellow socket) for connecting to
a television or AV receiver with a video input (CVBS,
composite video) by an audio/video cable.
6. S-VIDEO: S-Video output for connecting to a TV or AV receiver with
S-Video input by an S-Video cable. The S-Video output
can be used instead of the video output. By this, a high-
er video quality can be reached than with composite
video.
7. YCbCR/YPbPr: High quality video output for connection to the compo-
nent video inputs of a television, AV receiver, beamer or
monitor by means of a YCbCr connecting cable. Please
note that the Progressive-Scan signal is only available
over the component video output.
8. RGB/SCART: For connection to a television or monitor that is compat-
ible with this kind of connection by means of a 21-pin
SCART cable. This connection enables the output of
audio and video signals.
OPERATION
RGB OUTPUT RGB OUTPUT AV CONNECTOR SCART AV CONNECTOR SCART
~100-230V
AC IN
~100-230V
AC IN
Pb / Cb Pb / Cb Y
S-VIDEO VIDEO
5.1 CH ANALOG OUTPUT 5.1 CH ANALOG OUTPUT ANALOG OUTPUT ANALOG OUTPUT
OPTICAL COAXIAL R L P - SCAN / COMPONENT P - SCAN / COMPONENT FR SR SUB WOOFER SUB WOOFER FL SL CENTER
VIDEO OUTPUT VIDEO OUTPUT
ON
OFF
AC SWITCH AC SWITCH
Pr / Cr Pr / Cr
DIGITAL OUTPUT
2
AUDIO CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT
REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT
REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
I
O
1 10 9 8 7 6 5 4 3 2
Note:
The 5.1 audio track of DVD-Audio discs and SACDs can
only be played over the analogue 5.1 output, not over
the digital outputs.
“DTS” and “DTS Digital Surround” are trademarks
of DTS, Inc.
