23

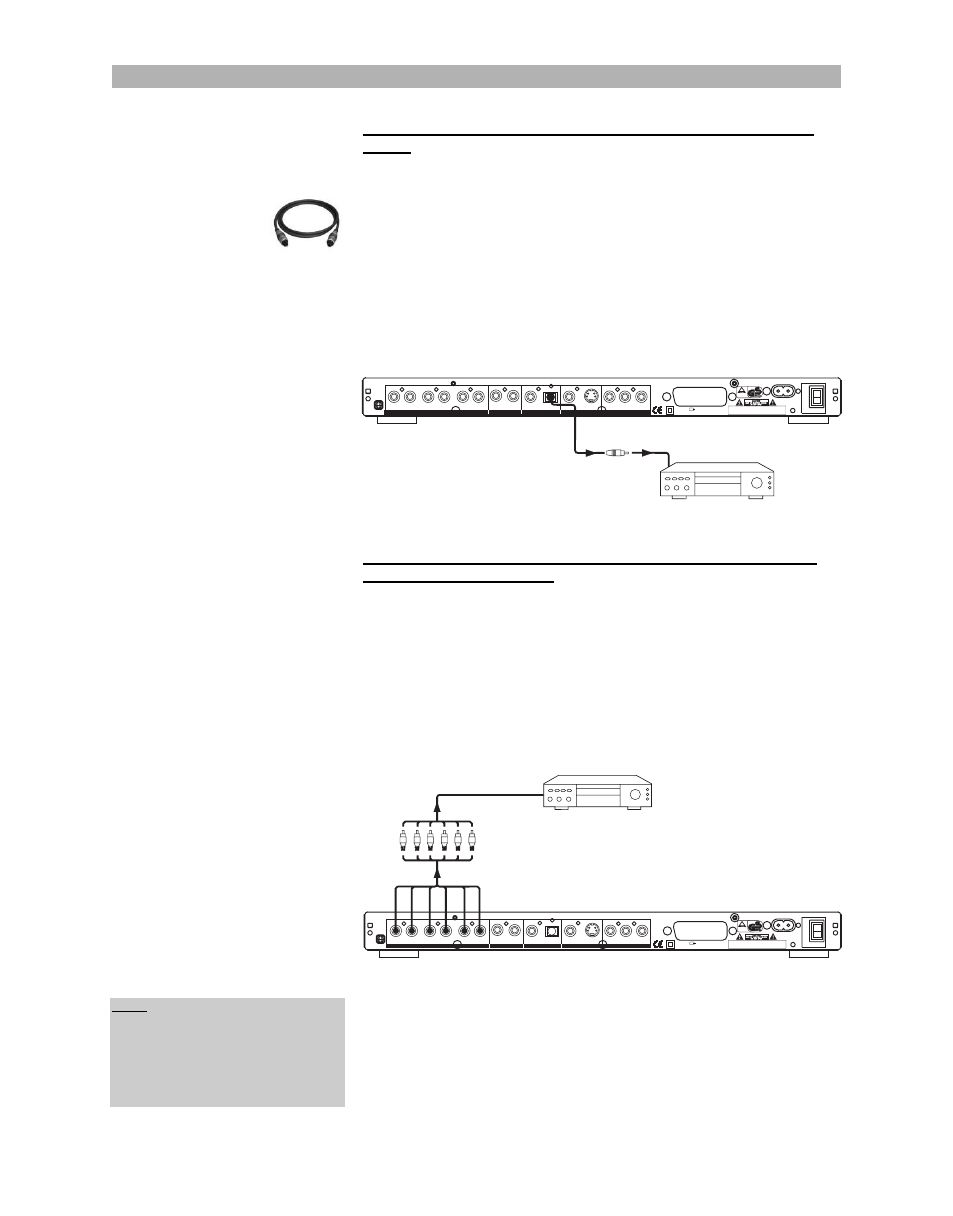

Audio connection to a receiver using the optical digital audio
output
Have the following cable ready:
1. Optical cable (not supplied)
Connect the optical digital output with the corresponding input on the AV receiv-
er by means of an optical cable (not included in your accessory). The optical
digital audio output sends an encoded “RAW” digital audio signal to your receiv-
er for decoding. Please note that this connection is only possible if your digital
receiver is compatible to dts, Dolby Digital, MPEG and/or PCM.
Audio connection to a receiver using the Dolby Digital/dts 5.1
channel analogue outputs
The Dolby Digital/dts 5.1 channel analogue outputs can be connected to Dolby
Digital/dts capable receivers, amplifiers or active speaker systems. When you
use the 5.1 channel outputs, you are taking advantage of the DVD player's built-
in Dolby Digital/dts decoder, which decodes the Dolby Digital/dts 5.1 soundtrack
on DVD discs to six separate analogue signals.
To be able to take advantage of this feature you will need a separate set of 5.1
channel connectors that is normally included with speaker systems.
1. Connect the front right (FR), front left (FL), surround right (SR), surround left
(SL), center (CENTER) and subwoofer (SUBWOOFER) output to the corre-
sponding input of your receiver, amplifier or active speaker system.
2. For receivers, adjust the input source setting to correspond with the 5.1
channel analogue input.
ᕤ
RGB OUTPUT RGB OUTPUT AV CONNECTOR SCART AV CONNECTOR SCART
~100-230V AC IN ~100-230V AC IN
Pb / Cb Pb / Cb Y
S-VIDEO VIDEO
5.1 CH ANALOG OUTPUT 5.1 CH ANALOG OUTPUT ANALOG OUTPUT ANALOG OUTPUT
OPTICAL OPTICAL COAXIAL R L P - SCAN / COMPONENT P - SCAN / COMPONENT FR SR SUB WOOFER SUB WOOFER FL SL CENTER
VIDEO OUTPUT VIDEO OUTPUT
ON
OFF
AC SWITCH AC SWITCH
Pr / Cr Pr / Cr
DIGITAL OUTPUT
2
AUDIO
TUV Rheinland TUV Rheinland ..
Product Safety Product Safety
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT
REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT
REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
I
O
DOLBY DIGITAL/DTS AUDIO INPUT
RECEIVER WITH DOLBY
DIGITAL/DTS AUDIO INPUT
AUDIO AND VIDEO CONNECTIONS
RGB OUTPUT RGB OUTPUT AV CONNECTOR SCART AV CONNECTOR SCART
~100-230V AC IN ~100-230V AC IN
Pb / Cb Pb / Cb Y
S-VIDEO S-VIDEO VIDEO
5.1 CH ANALOG OUTPUT 5.1 CH ANALOG OUTPUT ANALOG OUTPUT ANALOG OUTPUT
OPTICAL COAXIAL R L P - SCAN / COMPONENT P - SCAN / COMPONENT FR SR SUB WOOFER SUB WOOFER FL SL CENTER
VIDEO OUTPUT VIDEO OUTPUT
ON
OFF
AC SWITCH AC SWITCH
Pr / Cr Pr / Cr
DIGITAL OUTPUT
2
AUDIO
TUV Rheinland TUV Rheinland ..
Product Safety Product Safety
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT
REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT
REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
I
O
RECEIVER
OPTICAL DIGITAL AUDIO INPUT
ᕣ
1
Note:
Make sure the audio settings in the
DVD player's setup menu correspond
with those on pages 54-60. For exam-
ple: The “Audio output” has to be set
to “5.1 channel”.
