Page 17

3. Connect the supplied AC power cord to the “AC IN” inlet on the rear side of

this unit, then plug into a power outlet.

4. Turn on the TV and the DVD player.

5. Select the video input on your TV. For this please refer to the user manual

of your TV. You should now see the DVD player’s splash screen on your TV.

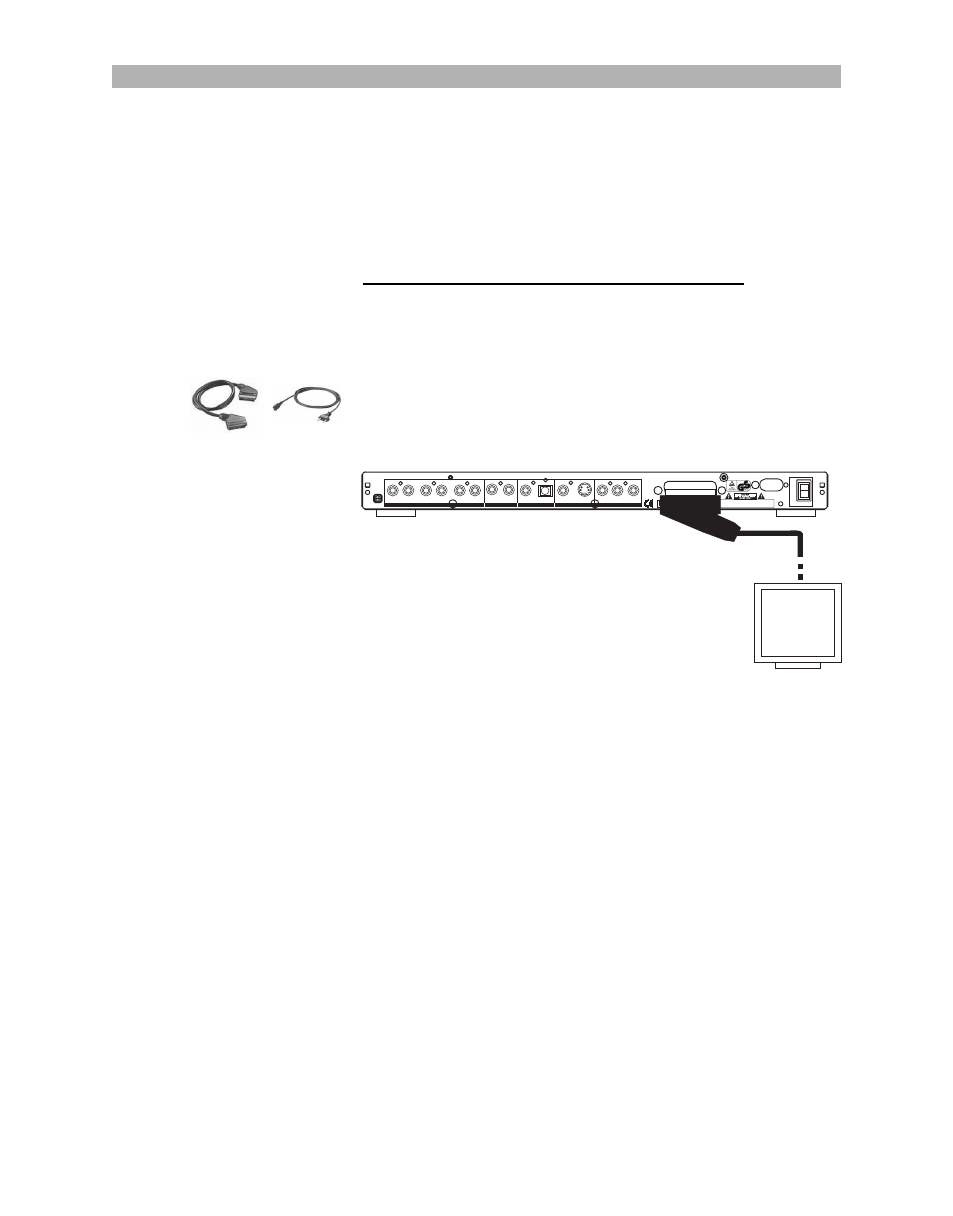

Audio/Video connection to a TV with SCART socket

If your TV has a SCART socket, you can optionally connect your device with the
TV over the SCART socket. The advantage is here an optimal picture quality.

Have the following cables ready:

1. SCART cable (optionally supplied)
2. Power cord (supplied)

1. Use a completely connected SCART cable, which is included in your acces-

sory (optional), to connect the SCART output of your DVD player to the
SCART socket of your TV.

2. Connect the supplied AC power cord to the “AC IN” inlet on the rear side of

this unit, then plug into a power outlet.

3. Turn on the TV and the DVD player.

4. If the TV offers the possibility to choose manually between RGB and CVBS,

you should set your TV to RGB in order to achieve a better picture quality. If
the DVD player is connected with the TV over the SCART cable, the TV
automatically switches to the DVD mode when you turn on the player (if the
TV supports this function).

AUDIO AND VIDEO CONNECTIONS

ᕢ

RGB OUTPUT

AV CONNECTOR SCART

~100-230V

AC IN

~100-230V

AC IN

Pb / Cb

S-VIDEO

VIDEO

5.1 CH ANALOG OUTPUT

ANALOG OUTPUT

OPTICAL

COAXIAL

P - SCAN / COMPONENT

SUB

WOOFER

SUB

WOOFER

CENTER

VIDEO

OUTPUT

VIDEO

OUTPUT

OFF

AC SWITCH

Pr / Cr

DIGITAL OUTPUT

AUDIO

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT
REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

RGB AV SCART OUTPUT

SCART CABLE

SCART INPUT
