17
Television connections
In order to use your DVD player, you will need to make a video connection to
your TV. The capabilities of your TV and the cables you have on hand will deter-
mine the connections you can use. There are four possible connection types:
ᕡ
Composite video - The most widely used connection. An audio/video
cable for composite video is required (optionally included in your accesso-
ry).
ᕢ
RGB (over SCART) - Audio and video connection which enables an opti-
mal picture quality. This connection possibility requires a SCART cable
(optionally included in your accessory).
ᕣ
S-Video - A higher quality connection that requires a special S-Video cable
and a S-Video capable TV.
ᕤ
Component video & Progressive-Scan - The highest quality video con-
nection. Supported on high-end TVs or beamers and requires a special
cable.
In detail:

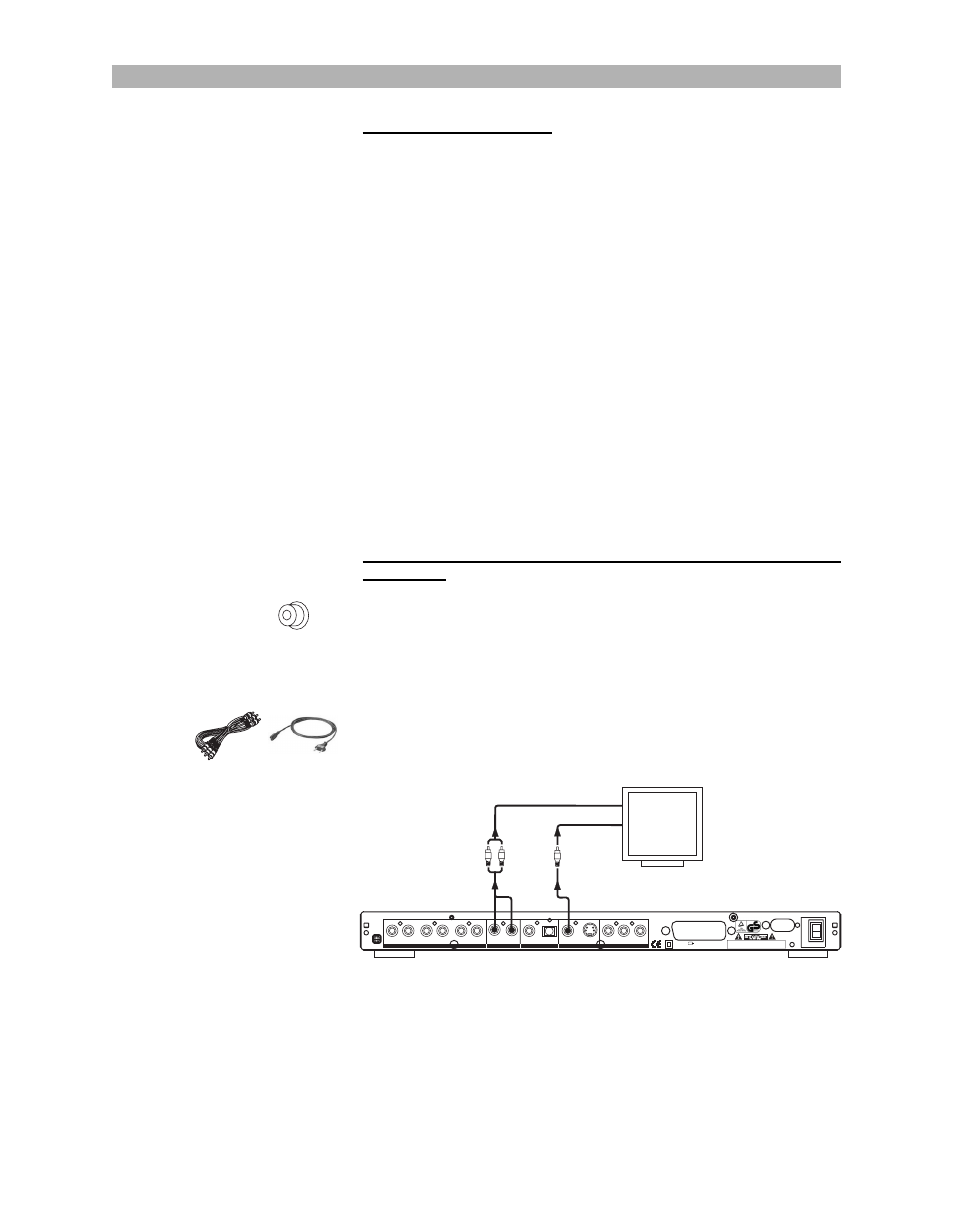

Audio/Video connection to a TV with composite video and stereo
audio input
If your TV has only a single Video input jack, typically a yellow-coloured plug,
you will use the Composite Video output of your DVD player for the Video con-
nection. For the audio connection you can use the red and white stereo audio
in connectors of your TV.
Have the following cables ready:
1. Audio/Video cable - red, white and yellow plug (optionally supplied)
2. Power cord (supplied)
1. Use the audio/video cable optionally included in your accessory to connect
the video output of your DVD player to the Video input of your TV. This is
normally a yellow-coloured connector that matches the video output on the
back of this unit.
2. If you wish to hear sound through the TV, connect the stereo audio outputs
of your DVD player to the matching inputs of your TV using the red and white
connectors on the supplied audio/video cable.
AUDIO AND VIDEO CONNECTIONS
ᕡ
RGB OUTPUT RGB OUTPUT AV CONNECTOR SCART AV CONNECTOR SCART
Pb / Cb Pb / Cb Y
S-VIDEO S-VIDEO VIDEO
5.1 CH ANALOG OUTPUT 5.1 CH ANALOG OUTPUT ANALOG OUTPUT ANALOG OUTPUT
OPTICAL COAXIAL R L P - SCAN / COMPONENT P - SCAN / COMPONENT FR SR SUB WOOFER SUB WOOFER FL SL CENTER
VIDEO OUTPUT VIDEO OUTPUT
ON
OFF
AC SWITCH AC SWITCH
Pr / Cr Pr / Cr
DIGITAL OUTPUT
2
AUDIO CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT
REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT
REMOVE COVER. NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
I
O
V R L
VIDEO OUTPUT
RED YELLOW WHITE
TV VIDEO INPUT
STEREO AUDIO INPUT
Composite video
input jack
1 2
