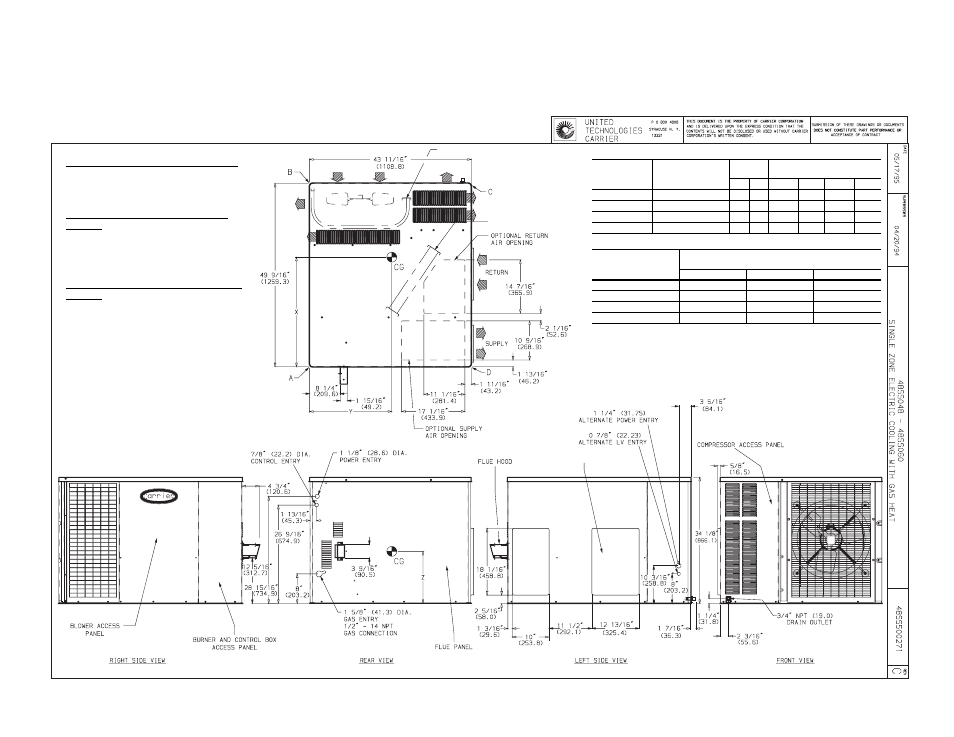

CERTIFIED DIMENSION PRINT
INDOOR COIL
OUTDOOR COIL
INDOOR COIL ACCESS
REQ’D CLEARANCES FOR SERVICING — in. (mm)
Duct Panel . . . . . . . . . . . . . . . . . . . . . . . . 0
Unit Top . . . . . . . . . . . . . . . . . . . . . 36 (914.4)
Side Opposite Ducts . . . . . . . . . . . . . . 36 (914.4)
Compressor Access
. . . . . . . . . . . . . . 36 (914.4)
(Except for NEC requirements)
REQ’D CLEARANCES TO COMBUSTIBLE MAT’L
— in. (mm)
Maximum Extension of Overhangs . . . . . . 48 (1219.2)
Unit Top . . . . . . . . . . . . . . . . . . . . . 14 (355.6)
Duct Side of Unit
. . . . . . . . . . . . . . . . . 2 (50.8)
Side Opposite Ducts . . . . . . . . . . . . . . 14 (355.6)
Bottom of Unit
. . . . . . . . . . . . . . . . . . . . . . 0
Flue Panel . . . . . . . . . . . . . . . . . . . 36 (914.4)
NEC (National Electrical Code) REQ’D CLEARANCES
— in. (mm)
Between Units, Control Box Side . . . . . . . 42 (1066.8)
Unit and Ungrounded Surfaces,
Control Box Side . . . . . . . . . . . . . . . 36 (914.4)
Unit and Block or Concrete Walls and Other
Grounded Surfaces, Control Box Side . . . 42 (1066.8)
UNIT
48SS
ELECTRICAL
CHARACTERISTICS
UNIT
WEIGHT
CORNER WEIGHT
(lb/kg)
lb kg A B C D
048080 208/230-1-60 414 188 107/49 83/38 158/72 66/30
048100/120/140 208/230-1-60 426 193 110/50 86/39 159/72 71/32
060080 208/230-1-60 453 206 117/53 93/42 167/76 76/35
060100/120/140 208/230-1-60 465 211 120/55 96/44 167/76 82/37
UNIT
48SS
CENTER OF GRAVITY
(in./mm)
X Y Z
048080 28.76/731 23.46/596 15.35/390
048100/120/140 28.42/722 23.42/595 15.35/390
060080 28.36/720 23.27/591 15.35/390
060100/120/140 27.95/710 23.23/590 15.35/390
NOTE: Clearances must be maintained to prevent recircu-
lation of air from outdoor fan discharge.
