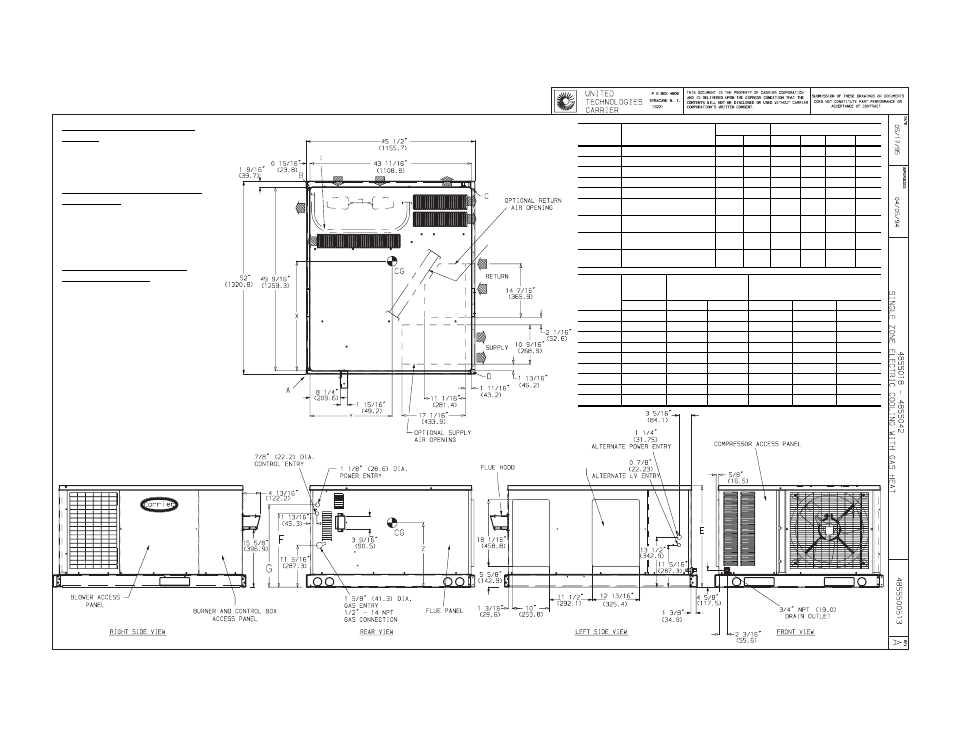

CERTIFIED DIMENSION PRINT
INDOOR COIL
OUTDOOR COIL
INDOOR COIL ACCESS
REQ’D CLEARANCES FOR SERVICING
— in. (mm)
Duct Panel
. . . . . . . . . . . . . . . . . . . 0
Unit Top . . . . . . . . . . . . . . . . 36 (914.4)
Side Opposite Ducts
. . . . . . . . . 36 (914.4)
Compressor Access . . . . . . . . . . 36 (914.4)
(Except for NEC requirements)
REQ’D CLEARANCES TO COMBUSTIBLE
MAT’L — in. (mm)
Maximum Extension of
Overhangs . . . . . . . . . . . . . 48 (1219.2)
Unit Top . . . . . . . . . . . . . . . . 14 (355.6)
Duct Side of Unit . . . . . . . . . . . . . 2 (50.8)
Side Opposite Ducts
. . . . . . . . . 14 (355.6)
Bottom of Unit . . . . . . . . . . . . . . . . . . 0
Flue Panel . . . . . . . . . . . . . . . 36 (914.4)
NEC (National Electrical Code) REQ’D
CLEARANCES — in. (mm)
Between Units, Control Box
Side . . . . . . . . . . . . . . . . . 42 (1066.8)
Unit and Ungrounded Surfaces,
Control Box Side . . . . . . . . . . . 36 (914.4)
Unit and Block or Concrete Walls and
Other Grounded Surfaces,
Control Box Side . . . . . . . . . . 42 (1066.8)
UNIT
48SS
ELECTRICAL
CHARACTERISTICS
UNIT WEIGHT
CORNER WEIGHT (lb/kg)
lb
kg
A
B
C
D
018040
208/230-1-60
296
135
87/40
68/31
82/37
59/27
024040
208/230-1-60
327
149
103/47
49/22
129/59
46/21
024060
208/230-1-60
339
155
106/48
52/24
132/60
49/22
030040
208/230-1-60, 208/230-3-60
344
157
106/48
53/24
132/60
53/24
030060/080
208/230-1-60, 208/230-3-60
356
162
102/46
71/32
123/56
60/27
036060/080
208/230-1-60, 208/230-3-60,
460-3-60, 575-3-60
360
164
92/42
82/37
117/53
69/31
036100/120
208/230-1-60, 208/230-3-60,
460-3-60, 575-3-60
372
169
95/43
85/39
120/55
72/33
042060/080
208/230-1-60, 208/230-3-60,
460-3-60
399
181
101/46
92/42
125/57
81/37
042100/120
208/230-1-60, 208/230-3-60
460-3-60
411
187
104/47
95/43
128/58
84/38
NOTE: Clearances must be maintained to prevent recircu-
lation of air from outdoor fan discharge, with the exception
of the outdoor coil as stated. A removable fence or barri-
cade requires no clearance.
UNIT
48SS
UNIT
HEIGHT
(in./mm)
DIMENSION
(in./mm)
CENTER OF GRAVITY
(in./mm)
E
F
G
X
Y
Z
018040
27.43/696.7
19
7
⁄
8
/504.8
22
1
⁄
4
/565.4
25.04/636.0
22.72/577.0
13.16/334.3
024040
27.43/696.7
19
7
⁄
8
/504.8
22
1
⁄
4
/565.4
26.90/683.3
20.17/512.3
13.16/334.3
024060
27.43/696.7
19
7
⁄
8
/504.8
22
1
⁄
4
/565.4
26.82/681.2
20.22/513.6
13.16/334.3
030040
27.43/696.7
19
7
⁄
8
/504.8
22
1
⁄
4
/565.4
26.57/674.9
20.05/509.3
13.16/334.3
030060/080
27.43/696.7
19
7
⁄
8
/504.8
22
1
⁄
4
/565.4
26.93/684.0
21.08/535.4
13.16/334.3
036060/080
27.43/696.7
19
7
⁄
8
/504.8
22
1
⁄
4
/565.4
27.31/693.7
20.97/532.6
13.16/334.3
036100/120
27.43/696.7
19
7
⁄
8
/504.8
22
1
⁄
4
/565.4
27.23/691.6
20.99/533.1
13.16/334.3
042060/080
31.43/798.3
23
7
⁄
8
/606.4
26
1
⁄
4
/666.8
26.87/682.5
20.99/533.1
14.96/380.0
042100/120
31.43/798.3
23
7
⁄
8
/606.4
26
1
⁄
4
/666.8
26.81/681.0
21.01/533.7
14.96/380.0
