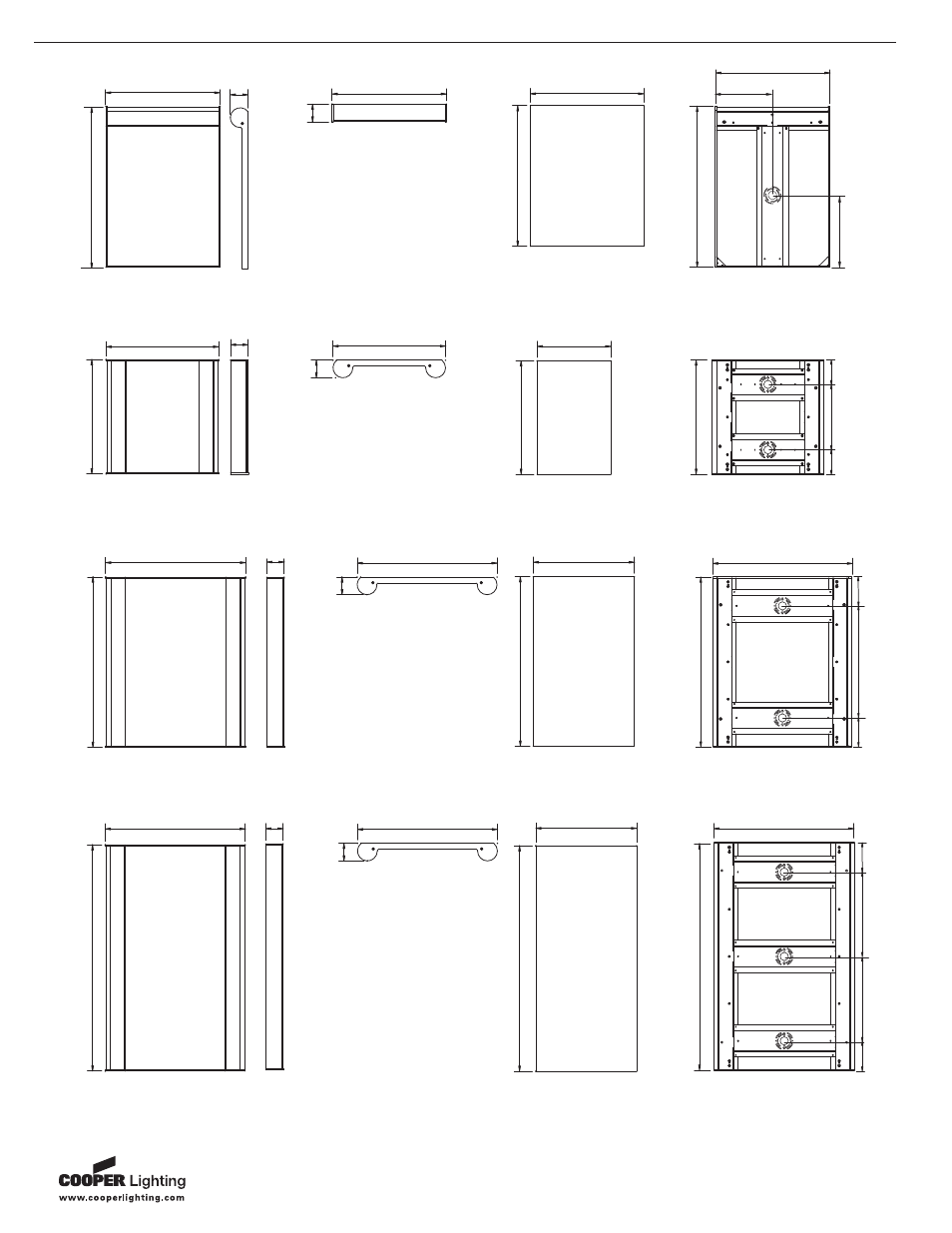

24" Vertical Standard
24-1/2"
15-1/4"
15-1/4"
14"
15-1/4"
24-1/2"
36-1/2"
48-1/2"
24"
24" Vertical - Mirror Only 24" Vertical
J-Box Mounting Location
36" Vertical
J-Box Mounting Location
48" Vertical
J-Box Mounting Location
34" Horizontal - Mirror Only 34" Horizontal
J-Box Mounting Location
24-5/16"
15-3/4" 3-3/4"
3-3/4"
24"
36" Vertical Standard
36-1/2"
30" 30"
36" Vertical - Mirror Only
36-5/16"
21-3/4" 3-3/4"
3-3/4"
30"
48" Vertical Standard
48-1/2"
30" 30"
48-5/16"
48" Vertical - Mirror Only
3-3/4"
3-3/4"
30"
30-1/8"
24-5/16" 24-1/2"
3-3/4"
3-3/4"
34-1/2"
12-1/4" 24-1/2"
34" Horizontal Standard
21-3/4"
34-1/2"
24-1/2"
6-1/4"
24"
6-1/4"
6-1/4"
18"
18"
6-1/4"
6 01 STA N DA R D 601 SERIES INTERIOR WALL LUMINAIRE
