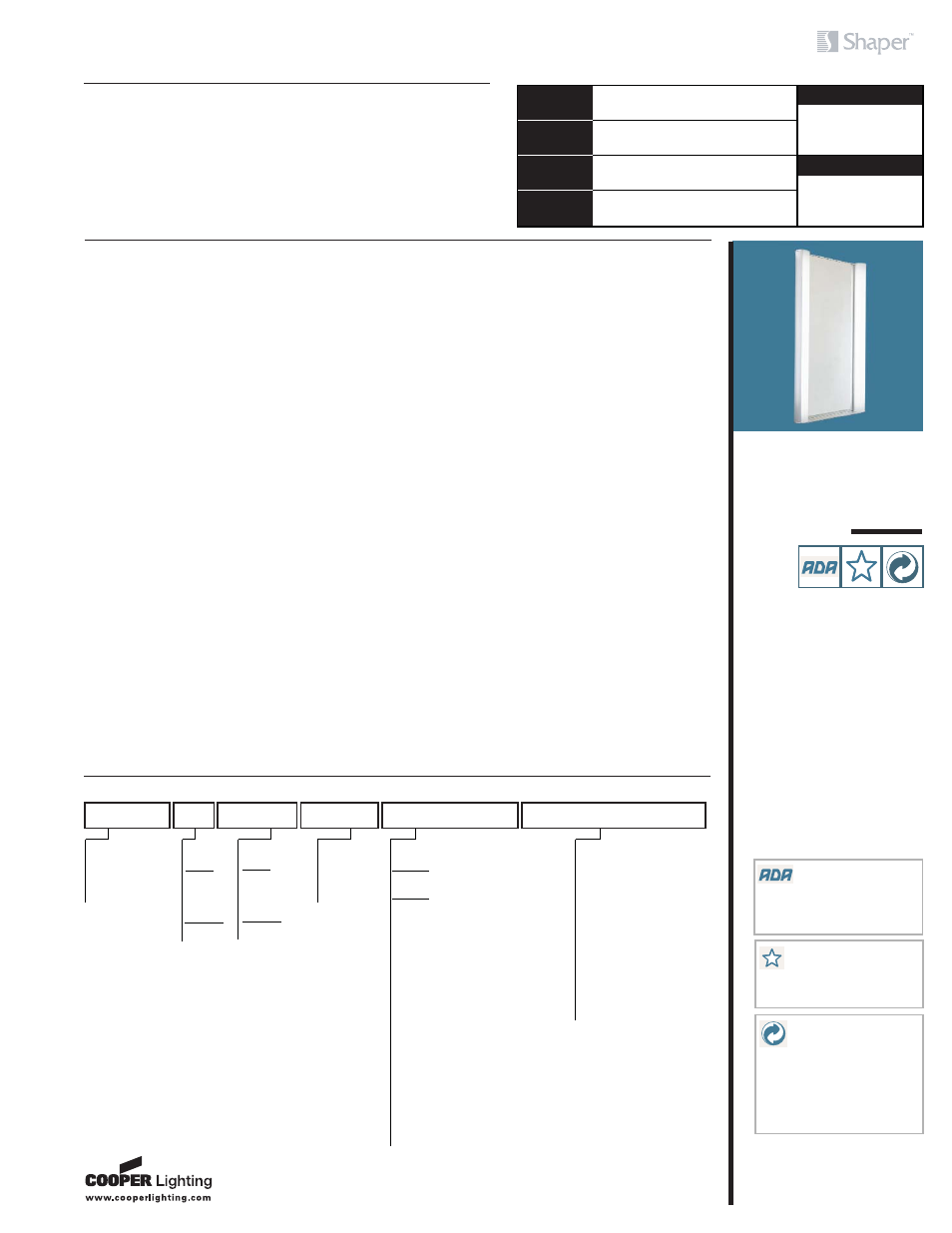

601 SERIES
I n t e r i o r W a l l L u m i n a i r e
M i r r o r L u m i n a i r e
w i t h I n t e g r a l L a m p s
Specifications and dimensions subject to change without notice.
Consult your representative for additional options and finishes.
shaperlighting.com
601 Mirror Luminaire with Integral Vertical or Horizontal Lamp
Extrusion(s) with or without a shelf. ADA compliant.
S P E C I F I C AT I O N F E AT U R E S
M a te ri a l
Solid extruded aluminum lamp
housing with an extruded
prismatic acrylic lense and matte
white diffuser. Formed aluminum
cross bracing and mounting
structure. Mirror by others.
F i n i s h
Standard: Natural Aluminum
(NA) [Sustainable Design].
Premium: Matte White (MW),
Lacquered Satin Aluminum
(SAL), Satin Chrome (SC),
Polished Chrome (PC), Satin
Brass (SB), Polished Brass (PB),
Satin Copper (SCP), Polished
Copper (PCP), Oxidized Copper
(OCP), Satin Nickel (SN),
Polished Nickel (PN), Lacquered
Satin Chrome (SCL), Oxidized
Brass (OBRS), Gun Metal (GNM),
Lacquered Satin Nickel (SNL) or
Custom Color (CC).
O p t i c s
Refer to
www.shaperlighting.com for
complete photometrics.
B a l l a s t
Integral electronic HPF, multi-volt
120/277V (347V Canada),
thermally protected with end-of-
life circuitry to accommodate the
specified lamp wattage.
L a m p / S o cke t
Vertical Lamp Orientation
24": Two (2) 17W T8 linear
fluorescent lamps.
36": Two (2) 25W T8 linear
fluorescent lamps.
48": Two (2) 32W T8 linear
fluorescent lamps.
Horizontal Lamp Orientation
34": One (1) 17W T8 linear
fluorescent lamp. Fluorescent
socket injection molded plastic.
Lamps furnished by others.
I n s t a l l a t i o n
Housing: Supplied with four (4)
1/4" bolt holes for secure
installation. Provided with one or
more universal circle strap(s) for
standard J-Box (Refer to J-Box
location drawings). Mirror
(supplied by others) fits into
groove for secure assembly.
O p t i o n s
Dimming Ballast - Contact
factory for ballast options (DM),
Integral Grounded GFI
Receptacle (RCP), Remote
Emergency Battery - Supplied by
others (REM), Shelf Vertical only,
- 4" (SH4), Shelf Vertical only, - 6"
(SH6), Damp Location (DL): All
painted finishes, Lacquered Satin
Chrome (SCL) and Lacquered
Satin Nickel (SNL) finishes only.
Energy Star Rating - Contact
factory.
L a b e l s
U.L. and C.U.L approved for
indoor and damp location. See
Options for damp location
finishing requirements. ADA
compliant except with option
SH6.
M o d i f i c a t i o n s
Shaper's skilled craftspeople
with their depth of experience
offer the designer the flexibility
to modify standard wall
luminaires for project specific
solutions. Contact the factory
regarding scale options, unique
finishes, mounting, additional
materials/colors, or decorative
detailing.
D E S C R I P T I O N
Catalog #
Type
Date
Project
Comments
Prepared by
Sample Number: 601-H-34-T8/1/17-120V-SAL
Voltage
120V
277V
347V
Finish
Standard
NA Natural Aluminum =
Premium
CC Custom Color =
MW Matte White =
PB Polished Brass =
PC Polished Chrome =
PCP Polished Copper =
PN Polished Nickel =
SAL Lacquered Satin Aluminum =
SB Satin Brass =
SC Satin Chrome =
SCP Satin Copper =
SCL Lacquered Satin Chrome =
SN Satin Nickel =
SNL Lacquered Satin Nickel =
SSS Satin Stainless Steel =
Options
DL Damp Location =
DM CFL Dimming
Ballast 3
=
REM Remote
Emergency
Battery
4
=
Series
601-H Mirror
Luminaire =
Size
24"
36"
Lamp
T8/2/17
1 Available in 24".
Notes:
2 Available in 36".
3 Consult the factory for available options.
4 Supplied by others.
601-V
48"
RCP Integral Grounded
GFI receptacle
=
SH4 4” Shelf -
vertical only
=
SH6 6” Shelf -
vertical only
=
OBRS Oxidized Brass =
Vertical
Horizontal
34"
(24")
Vertical
Horizontal
T8/2/25 (36")
T8/2/32 (48")
T8/1/17 (34")
OCP=Oxidized Copper
GNM=Gun Metal
Mirror
Luminaire =
O R D E R I N G I N F O R M AT I O N
ADS070278
2008-09-11 11:45:29
ENERGY
STAR
Shaper offers a large selection of ADA
interior and exterior wall luminaires.
ADA requires all fixtures below 68" to
have a maximum projection of 4".
AMERICAN DISABILITIES
ACT (ADA)
SUSTAINABLE
DESIGN
Refer to the Icon Legend
Link on shaperlighting.com.
Shaper now offers a wide variety
of fixtures that can be provided
with an Energy Star Rating.
Shaper has a long-standing history
of offering environmentally-friendly
fixtures. The copper and bronze alloys
used in our exterior luminaires feature
up to 98% recycled content, contribute
less undesirable air emissions compared
to painted aluminum and are easy to
recycle.
