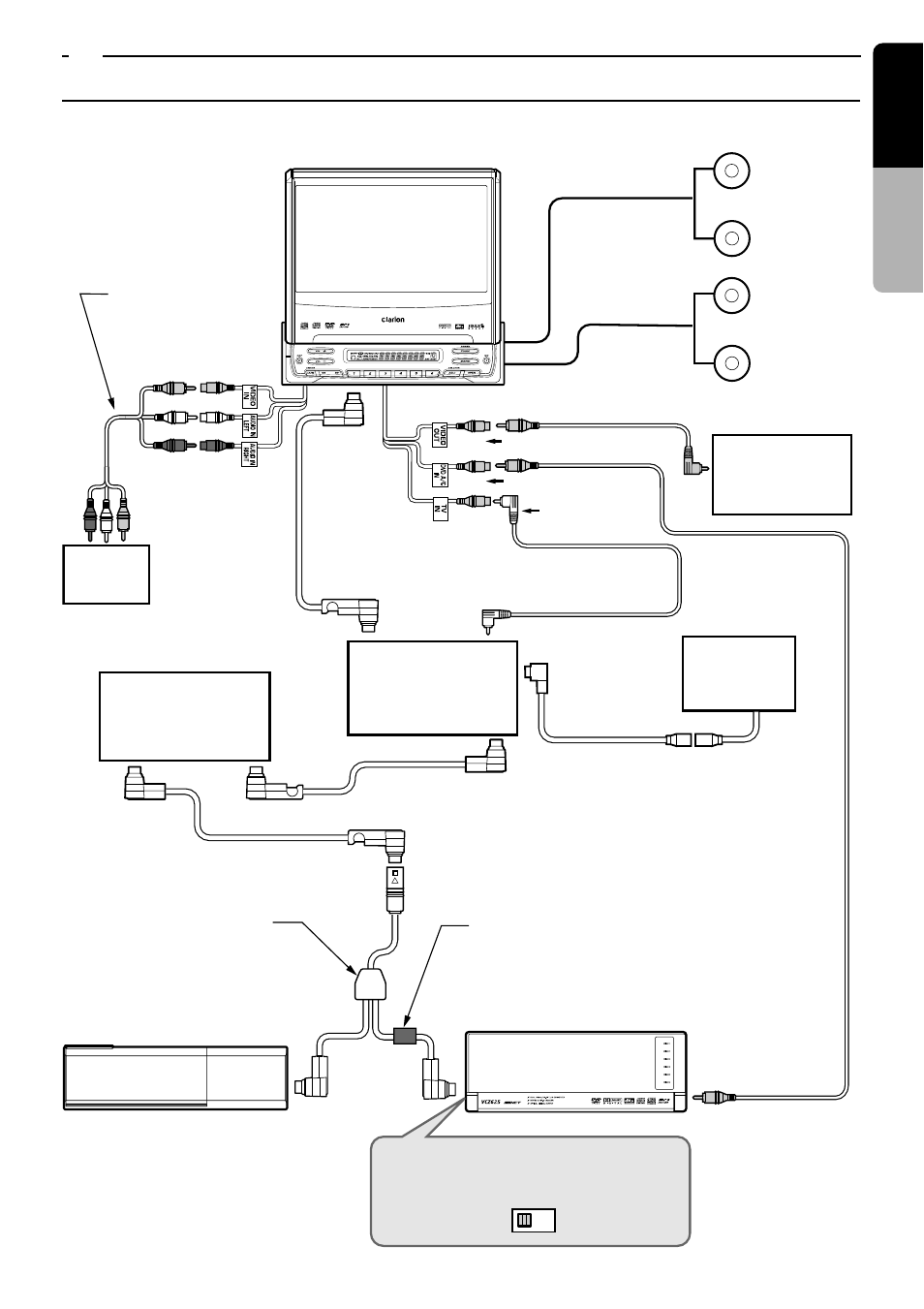

SAMPLE SYSTEMS
■ Sample System 1
Yelow
Yelow
Yelow
Visual input
VTR
(TTX7501z)
(VCZ625)
(DCZ625)
CeNET
STAND
ALONE
VRX745VD
(CC425E)
(VMA5894/
VMA7194)
VIDEO OUT
DVD A/C IN
TV IN
TV tuner
CeNET cable
(included the
TV tuner)
RCA video cable
(included the TV tuner)
Rear View
Monitor
RCA video cable (sold separately)
DVD Changer
CD Changer
CeNET Y-adapter
(CCA-519-500,
sold separately)
Ferrite clamp
(Included the DVD changer)
RCA
video cable (included the VCZ625)
CeNET Cable
(included the Changer)
Front
Speakers
Rear
Speakers
Set the [CeNET/STAND ALONE]
switch to the [CeNET] position.
SIRIUS tuner
CeNET cable
(included the SIRIUS tuner)
CCD
Camera
Conector cable
(included the CC425E)
RCA cable
(sold separately)
