Page 64
66
VRX745VD
English
Installation and Wire
connection manual
∗1: Connecting the PHONE MUTE Terminal
The lead included with the unit must be connected to the specified position of the vehicle’s
connector in order to use the “triggered audio mute for cellular telephones” function.
Note : Before making any installation, disconnect the car battery - (negative) cable.
∗2: Connect to a separately sold external amplifier with a separately sold RCA cord (L, R).
∗3: Connect to a Rear View Monitor (sold separately) for the rear seat.

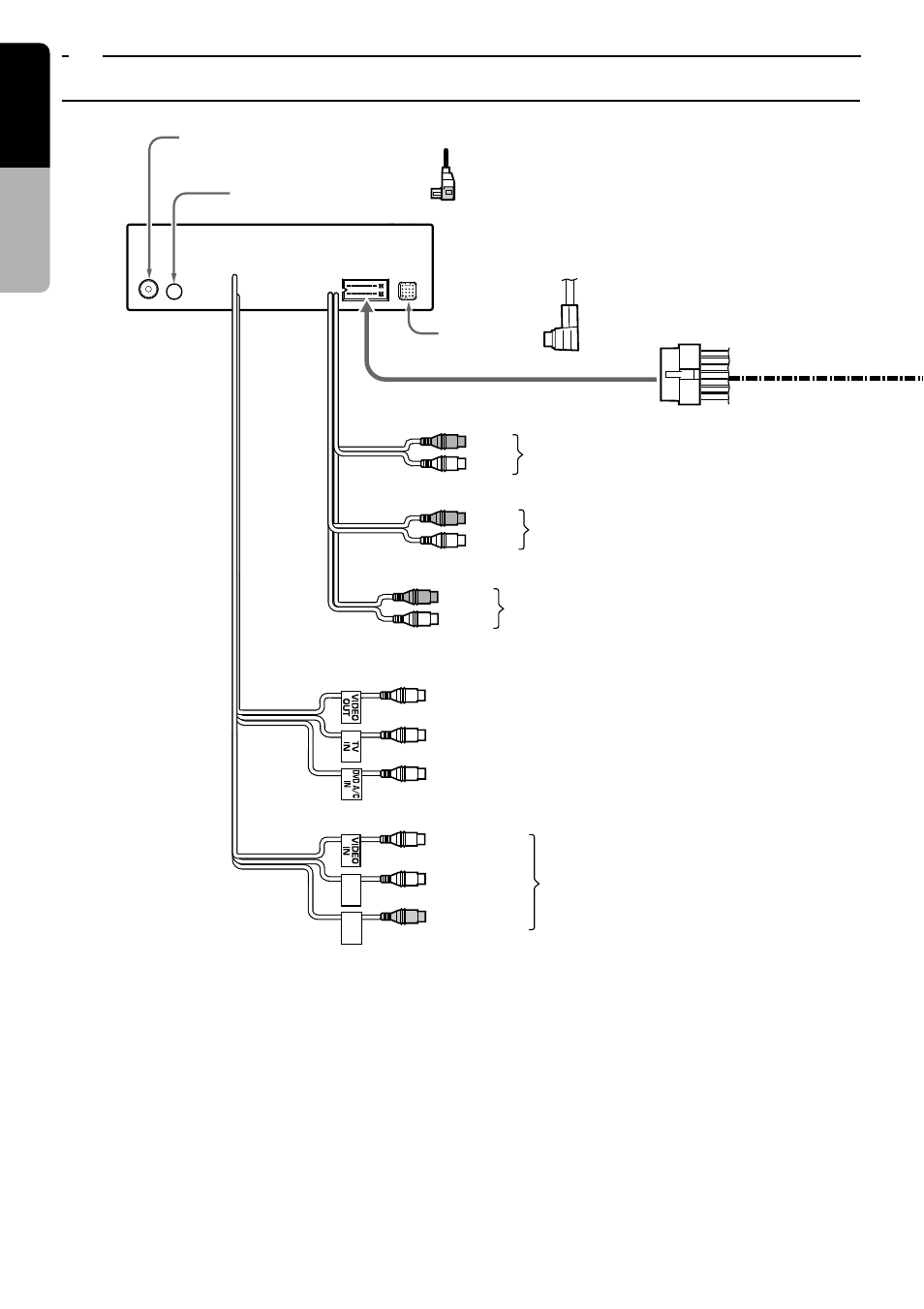

8.
WIRE CONNECTION
AUDIO IN
LEFT
AUDIO IN
RIGHT
CeNET
terminal
Red
White
Red
White
Right
left
Front audio output terminal (*2)
Right
left
Rear audio output terminal (*2)
Right
left
Non fader output terminal
Gray
Black
Purple
Red
White
Yelow
Yelow
Yelow
Yelow
White
Red
Video output terminal (*3)
TV tuner input terminal
DVD changer input terminal
Video
Audio (left)
Audio (right)
Visual input terminal
Optical output connector
Radio antenna jack
