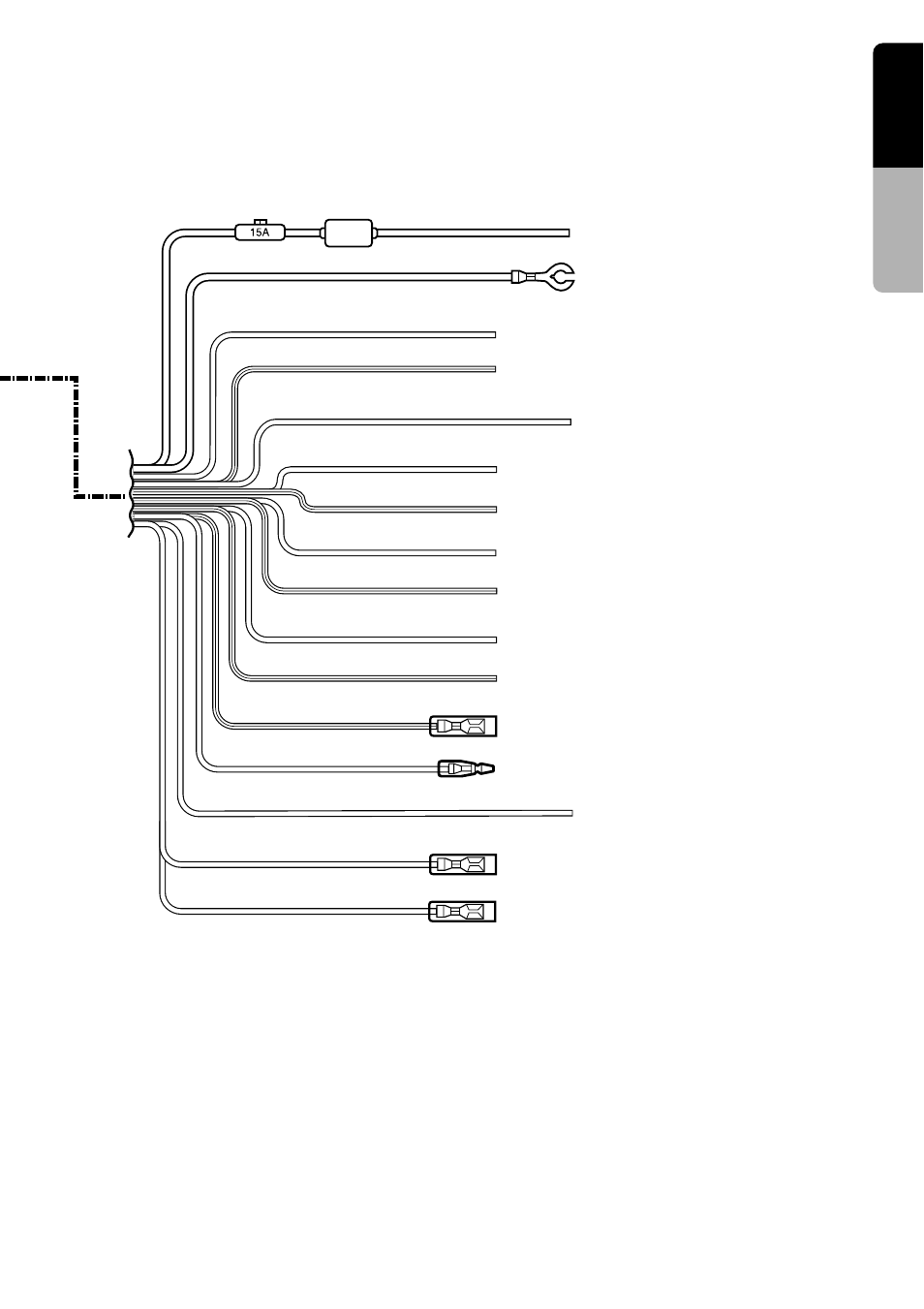

Installation and Wire
connection manual
Yellow
Black
Purple
Purple/Black
Grass-green
Glay
Glay/Black
White
White/Black
Green
Green/Black
Blue/White
Orange/White
Red
Brawn
Blue
+12V main power
Ground
Rear right +
Rear right -
Parking brake
Front right +
Front right -
Front left +
Front left -
Rear left +
Rear left -
Amplifier turn-on lead
Illumination
+12V accessory
Phone mute (*1)
Auto antenna
