CY24272

Document Number: 001-42414 Rev. **

Page 2 of 13

Pinouts

Table 2. Pin Definition - 28 Pin TSSOP

Pin No.

Name

IO

Description

1

VDDP

PWR

2.5V power supply for phased lock loop (PLL)

2

VSSP

GND

Ground

3

ISET

I

Set clock driver current (external resistor)

4

VSS

GND

Ground

5

REFCLK

I

Reference clock input (connect to clock source)

6

REFCLKB

I

Complement of reference clock (connect to clock source)

7

VDDC

PWR

2.5V power supply for core

8

VSSC

GND

Ground

9

SCL

I

SMBus clock (connect to SMBus)

10

SDA

I

SMBus data (connect to SMBus)

11

EN

I

Output Enable (CMOS signal)

12

ID0

I

Device ID (CMOS signal)

13

ID1

I

Device ID (CMOS signal)

14

/BYPASS

I

REFCLK bypassing PLL (CMOS signal)

15

VDD

PWR

Power supply for outputs

16

CLK3B

O

Complement clock output

17

CLK3

O

Clock output

18

VSS

GND

Ground

19

CLK2B

O

Complement clock output

20

CLK2

O

Clock output

21

VSS

GND

Ground

22

VDD

PWR

Power supply for outputs

23

CLK1B

O

Complement clock output

24

CLK1

O

Clock output

25

VSS

GND

Ground

26

CLK0B

O

Complement clock output

27

CLK0

O

Clock output

28

VDD

PWR

Power supply for outputs

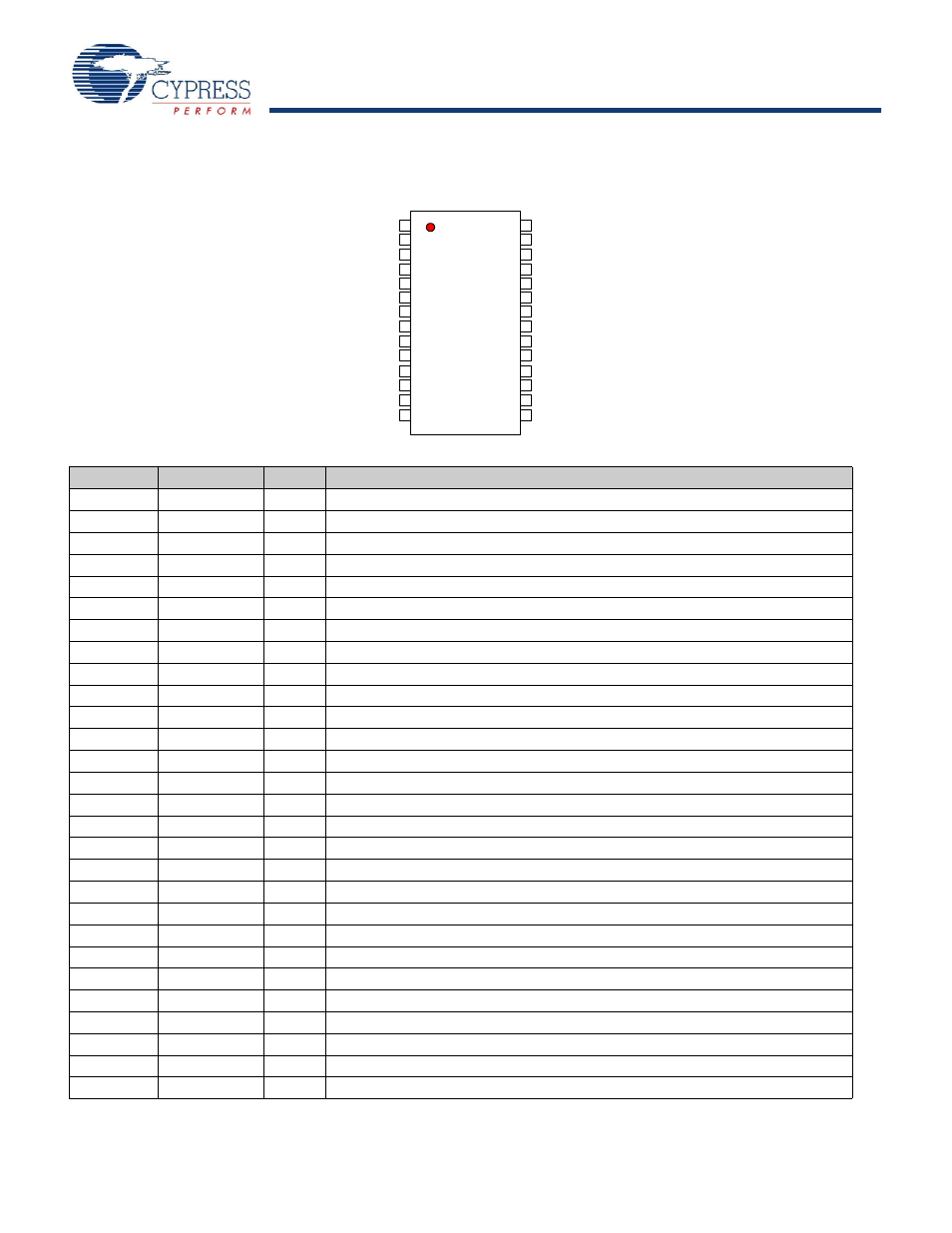

Figure 1. Pin Diagram - 28 Pin TSSOP

/BYPASS

REFCLKB

VDD

CLK0B

VSS

CLK2B

CLK3

CLK3B

VDD

VSS

CLK2

CLK0

VSS

CLK1

CLK1B

VDD

VDDP

ISET

VSSC

SDA

ID0

ID1

EN

SCL

VSSP

VSS

REFCLK

VDDC

1
2
3
4
5
6
7
8
9

10
11
12
13
14

28
27
26
25
24
23
22
21
20
19
18
17
16
15

CY24

2

7

2
