Network Name (SSID): The name that is
broadcast from each access point.

Network ID (BSSID): The numeric ID of the
network. This parameter is required when trying to
connect to a hidden network using WiFi as WAN.
It is optional when connecting to a visible network.

Auth Mode: The type of encryption that is used by
the network.



None



WEP Auto



WEP Open



WEP Shared



WPA1 Personal



WPA2 Personal



WPA1 & WPA2 Personal

7.8.2

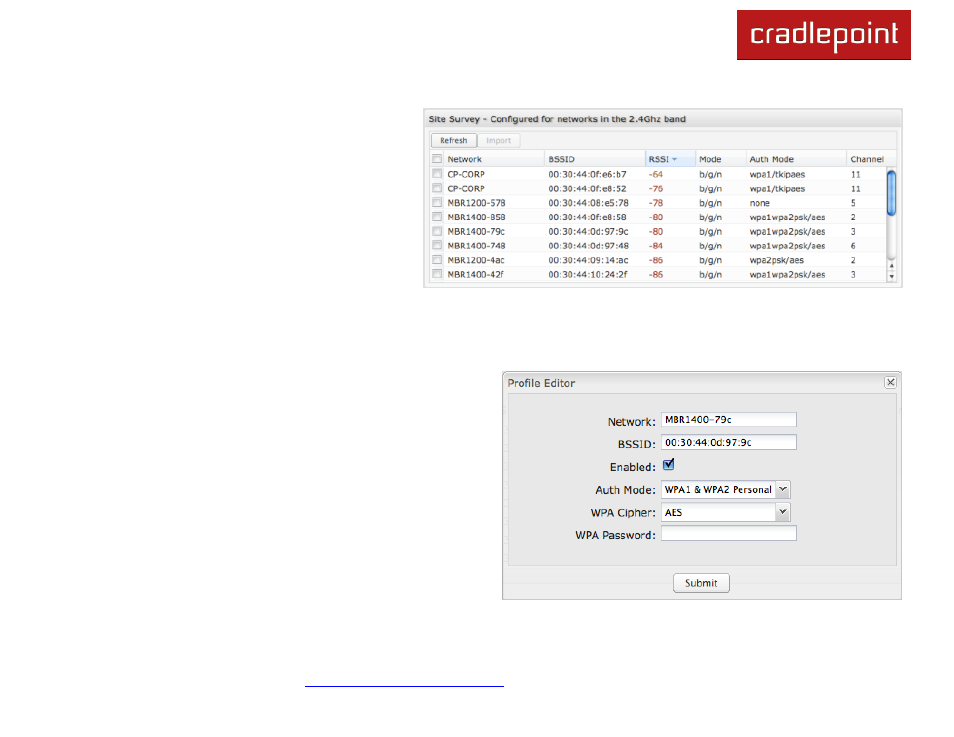

Profile Editor

You have the option to manually add network profiles, but it is
usually much easier to import them from Site Survey. Either
click on Add

under ―Saved Profiles‖ or select a WiFi network

in ―Site Survey‖ and click Import.

If you import a network from Site Survey, most of the
information about the network will already be completed. You
need to input the password (if there is one) and then click
submit to save the WiFi as WAN profile.
