6.3.2 Register: Speed monitor

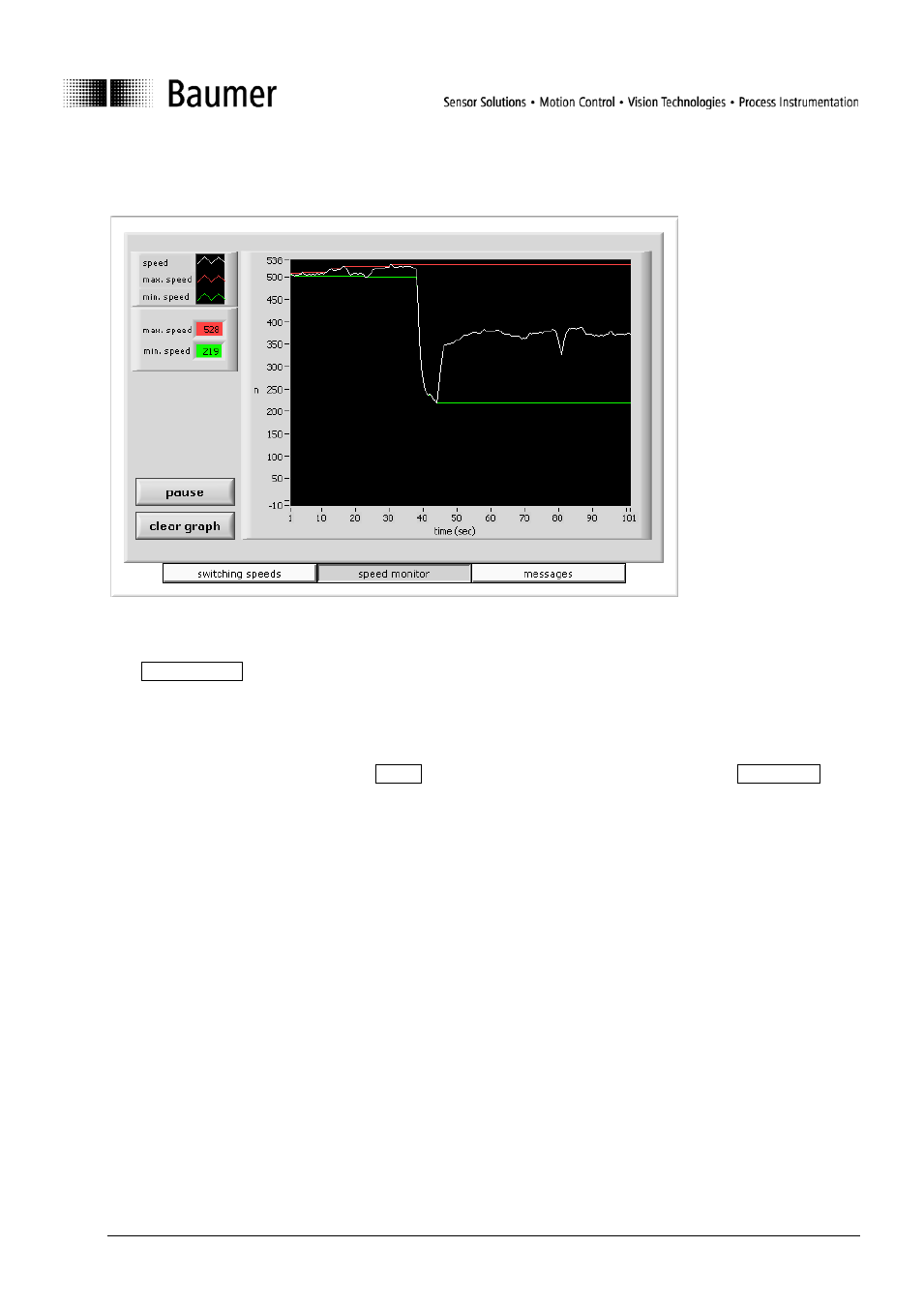

Fig. 12: “Speed monitor” register
The Speed monitor register (Fig. 12) shows the present speed curve as a function of time. The highest and
lowest speed values that have occurred since the start of recording are marked respectively by a red line
(maximum value) and a green line (minimum value). The ordinate scaling is made automatically to match the
minimum and maximum that have been recorded.
Recording is stopped by operating the Pause button, and the graph is deleted by operating Clear graph.
Changing to another register in the main window will also delete the speed curve.
