PA203
16 www.baumer.com

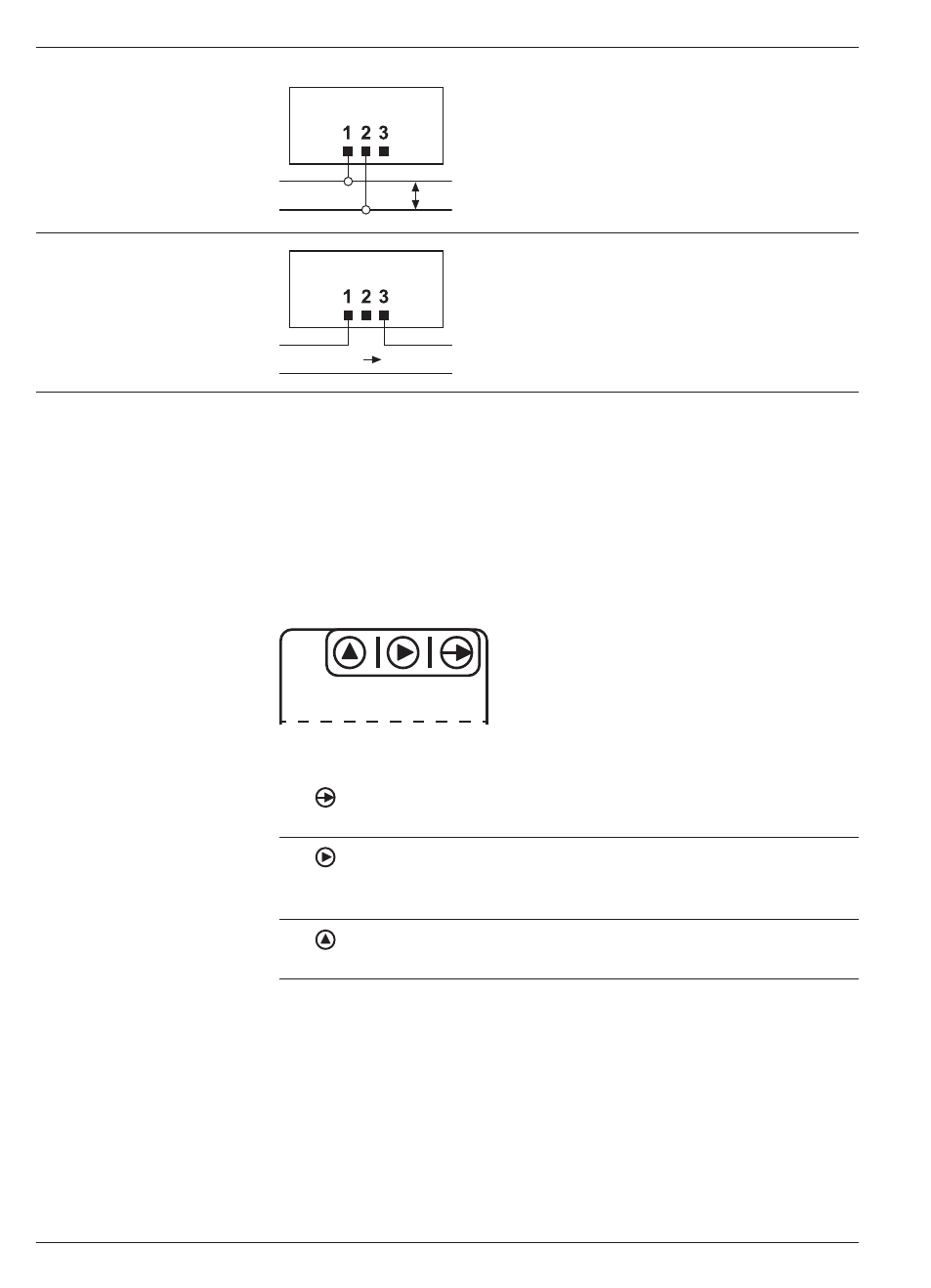

3.4 Wiring examples
Input
voltage up to 600 V
Device
V
Input
current up to 5 A
Device
I
4 Operating mode – programming mode
Operating mode
The device is automatically on the operating mode after the voltage
supply has been turned on. The current value is displayed.
Programing mode
Device parameterization is by three soft keys located below the front
panel (see below).
Keypad
(view from below)
Key functions
Key
Access programming level and select programming line.
Key
Select functionality or decade in the programming line. The selected
digit is flashing.
Key
For incrementing of selected decades.
