Cooper Lighting AMETRIX P4R - Manual (Page 2)

6"
152.40
4
1
2 "
114.30
3
4 "
19.05
3
4 "
19.05
13
32 "
(4x)
10.16
6"
152.40
4
1
2 "
114.30
2"
50.80
Side view Top view
Use only GE or Sylvania
CFL lamps
1
2 "
12.70
on order
Length dependant

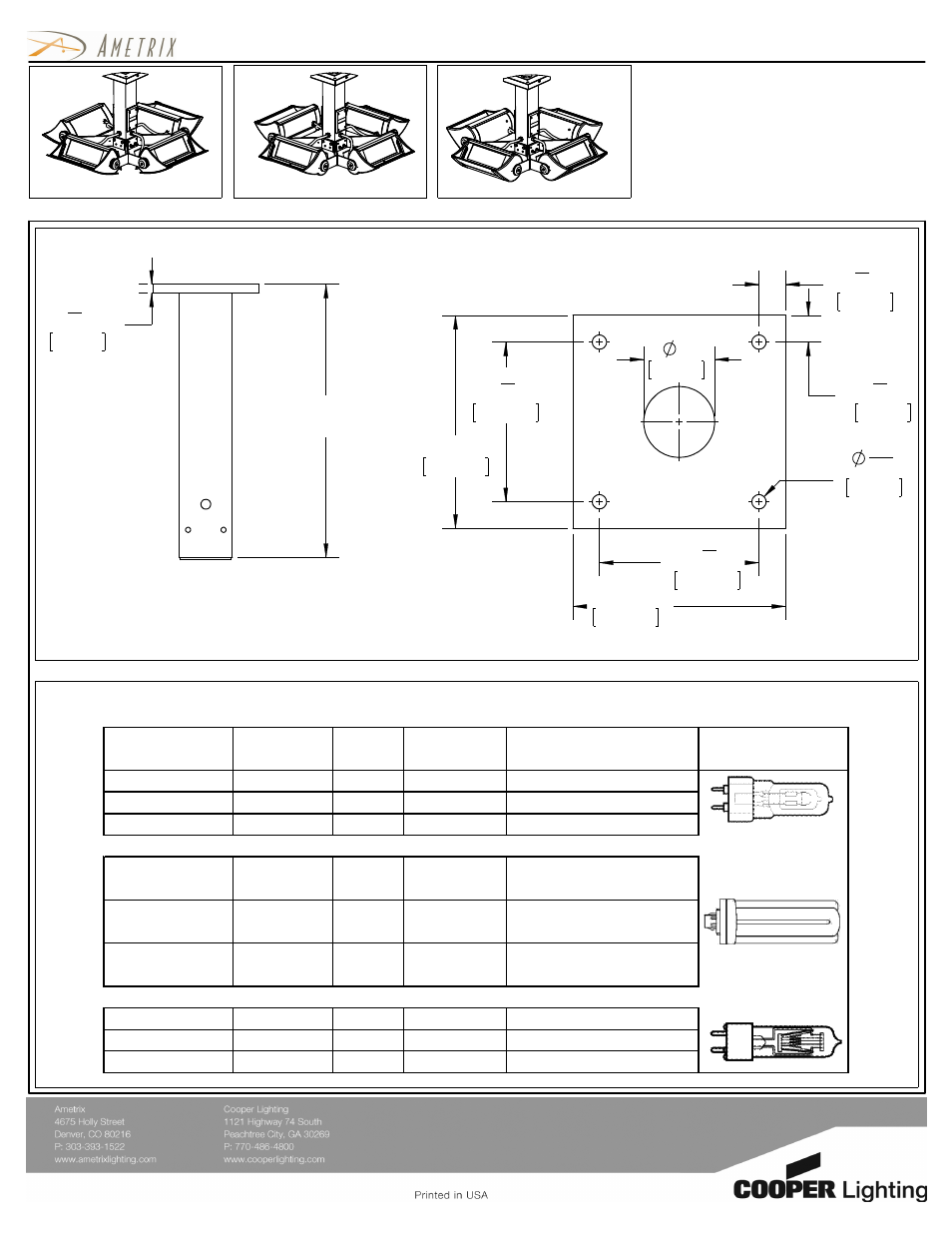

Installation Instructions
Vault w/ visor C-Scroll w/ visor Roundel w/ visor
These installation instructions are valid with the above Ametrix styles
Mounting Plate Dimensions In [mm]
Lamping Size Chart
(lamps provided by others)
Warning : Before starting any work ensure
that all sources of power are turned off. All
work must meet local/national codes and be
performed by a certified electrician. Do not
mount fixtures vertically.
Small, OUTDOOR
P4R
(Pendant, 4-way, Remote ballast)
Visor and Non-Visor
Sheet 2 of 2
ADY071469 REV B (ECN80481)
FIXTURE SIZE
(inches/ mm)
WATTAGE
# OF
LAMPS
LAMP TYPE LAMP DESCRIPTION
10 3/4 / 273.05 39 W 1 T6 Ceramic Metal Halide
12 3/4 / 323.85 70 W 1 T6 Ceramic Metal Halide
12 3/4 / 323.85 150 W 1 T6 Ceramic Metal Halide
12 3/4 / 323.85 26 W 1
4-Pin Triple
Tube
Compact Fluorescent
12 3/4 / 323.85 32 W 1
4-Pin Triple
Tube
Compact Fluorescent
12 3/4 / 323.85 42 W 1
4-Pin Triple
Tube
Compact Fluorescent
10 3/4 / 273.05 100 W 1 T4 Halogen (Single Ended)
12 3/4 / 323.85 150 W 1 T4 Halogen (Single Ended)
12 3/4 / 323.85 250 W 1 T4 Halogen (Single Ended)
LAMP
(not to scale)
