AX430
5

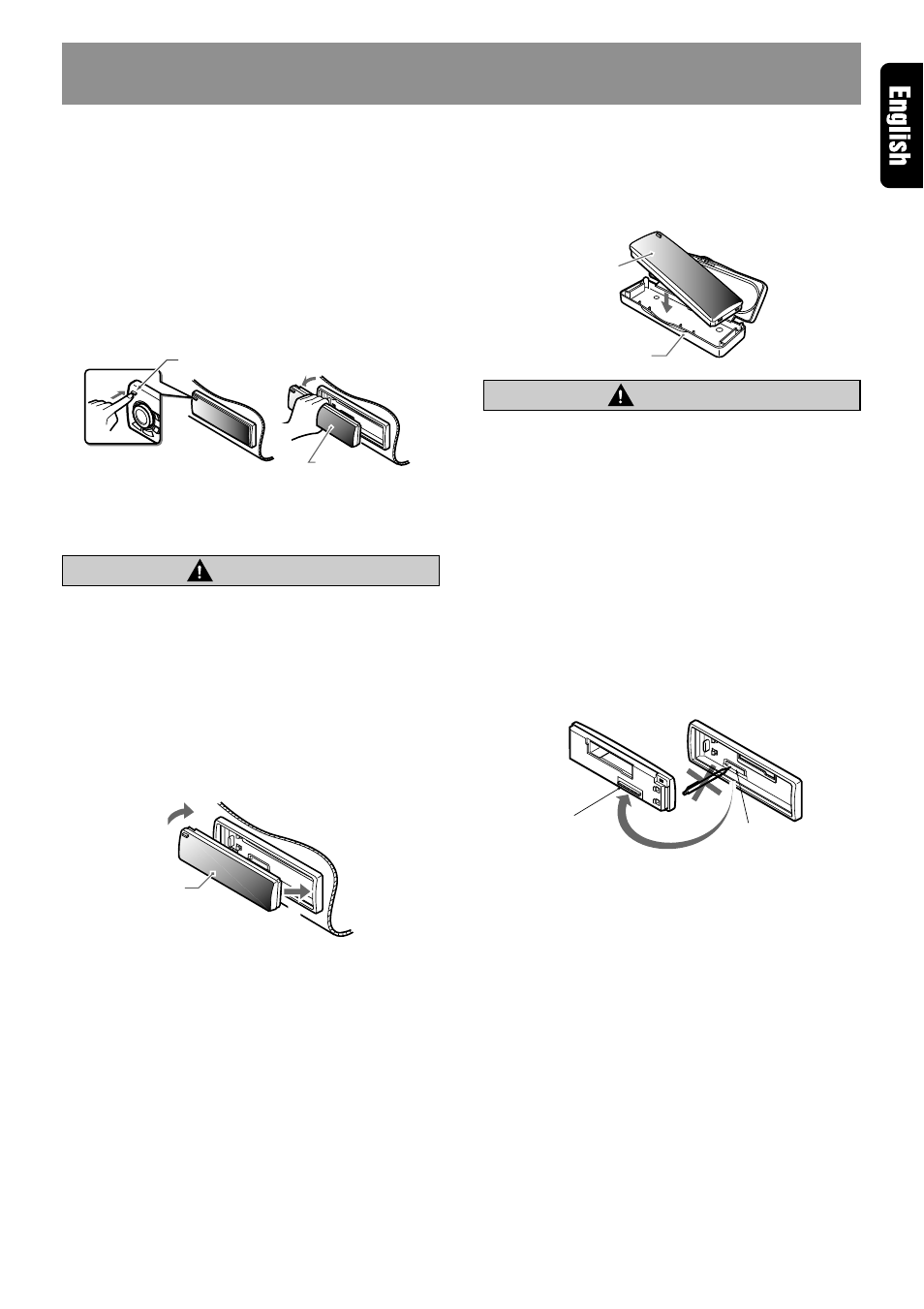

5. DCP
The control panel can be detached to prevent
theft. When detaching the control panel, store it
in the included DCP case to prevent scratches.
We recommend taking the control panel with you
when leaving the car.
Removing the DCP
1. Turn off the power.
2. Press the [RELEASE] button.
[RELEASE] button
DCP
* The DCP is unlocked.
3. Remove the DCP.
Do not insert the DCP from the left side. Do-
ing so may damage it.
Attaching the DCP
1. Insert the right side of the DCP into the main
unit.
2. Insert the left side of the DCP into the main
unit.
DCP
2.
1.
CAUTION
Storing the DCP in the DCP Case
Hold the DCP, in the orientation as shown in the
figure below, and put it into the supplied DCP
case. (Ensure the DCP is in the correct orienta-
tion.)
DCP
DCP case
• The DCP can easily be damaged by shocks.
After removing it, place it in its case and be
careful not to drop it or subject it to strong
shocks.
• When the [RELEASE] button is pressed and
the DCP is unlocked, the car’s vibrations may
cause it to fall. To prevent damage to the DCP,
always store it in its case after detaching it.
• The connector connecting the source unit
and the DCP is an extremely important part.
Be careful not to damage it by pressing on
it with fingernails, pens, screwdrivers, etc.
DCP Rear Panel Source Unit Front
Source unit
connector
DCP
connector
Note:
• If the DCP is dirty, wipe off with a soft, dry cloth.
CAUTION
