10. SPECIFICATIONS

FM Tuner

Frequency Range……87.0 MHz to 108 MHz

Usable Sensitivity……11 dBf

50 dB Quieting Sensitivity……17 dBf

Alternate Channel Selectivity……75 dB

Stereo Separation (1 kHz)……35 dB

Frequency Response (±3 dB)

…… 30 Hz to 15 kHz

AM Tuner

Frequency Range……531 kHz to 1602 kHz

Usable Sensitivity……25 µV

Tape

Wow & Flutter (WRMS)……0.08%

Channel Separation (1 kHz)……45 dB

Signal to Noise Ratio

…… 70 µs (CrO2, FeCr, Metal): 58 dB

Frequency Response (±3 dB)

120 µs (normal)……30 Hz to 18 kHz

70 µs (CrO2, FeCr, Metal)……30 Hz to 20 kHz

Audio

Maximum Power Output……200 W (50 W

× 4ch)

Continuous Average Power Output

…… 17 W

× 4, into 4 Ω, 20 Hz to 20 kHz, 1%

THD

Bass Control Action (30 Hz)……±13 dB

Treble Control Action (10 kHz)……±10 dB

Line Output……1.8 V (with CD A/C 1kHz 10 k

Ω)

General

Power Supply Voltage

…… 14.4 V DC (10.8 V to 15.6 V allowable)

Current Consumption…… Less than 15 A

Speaker Impedance

…… 4

Ω (4 Ω to 8 Ω allowable)

Weight……3.3 lb. (1.5 kg)

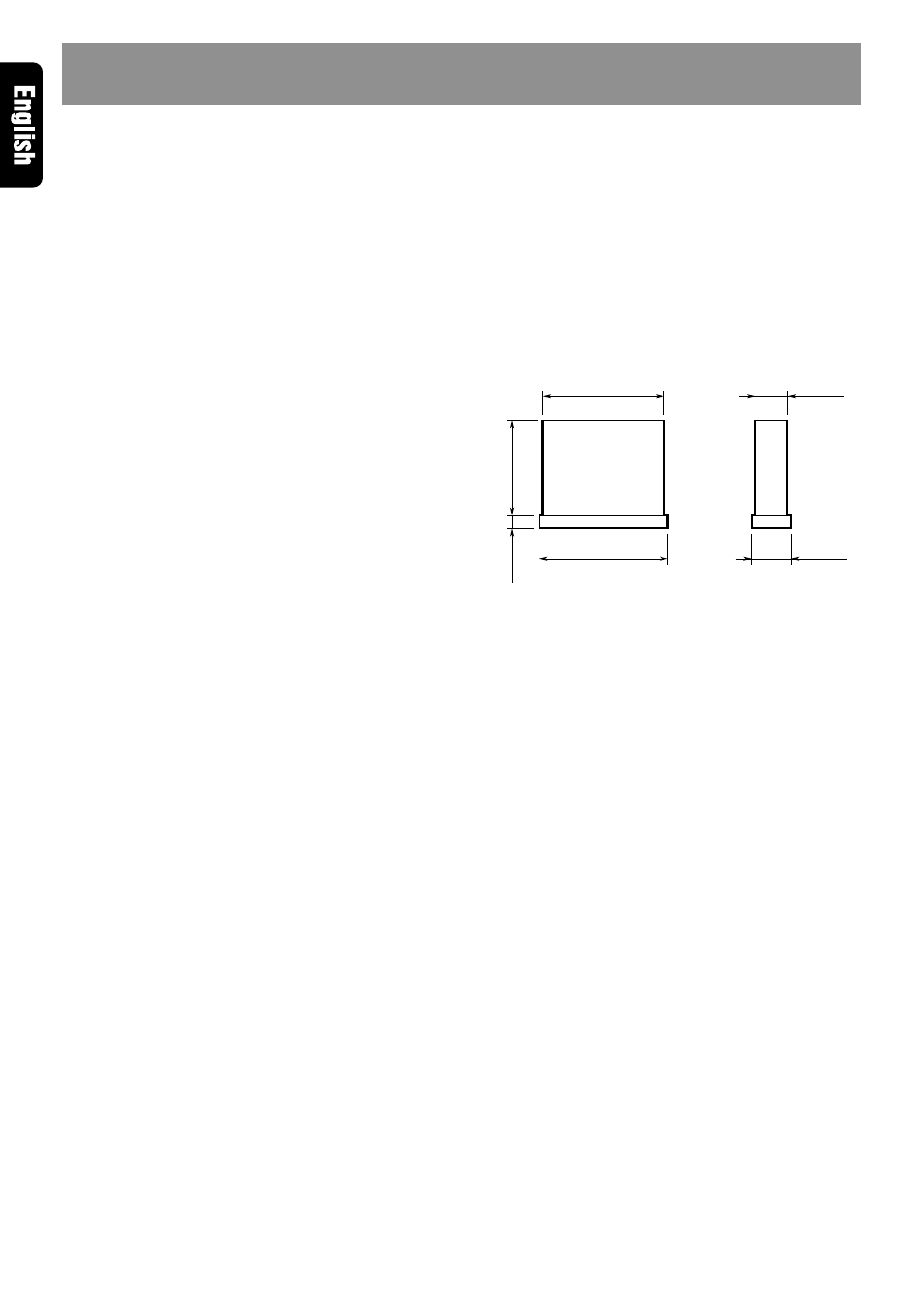

Dimensions

…… 7" (178 mm) Width

× 2" (50 mm) Height

× 6-3/32" (155 mm) Depth

2"

(50 mm)

2-1/4"

(58 mm)

7"

(178 mm)

7-3/8"

(188 mm)

6-3/32

"

(155 mm)

3/4

"

(19 mm)

Notes:

• Specifications comply with EIA Standards.
• Specifications and design are subject to change

without notice for further improvement.
