Replacing the reverse lamp and tail lamp bulbs, 306 maintenance – FORD 2013 C-MAX Hybrid v.3 User Manual
Page 307

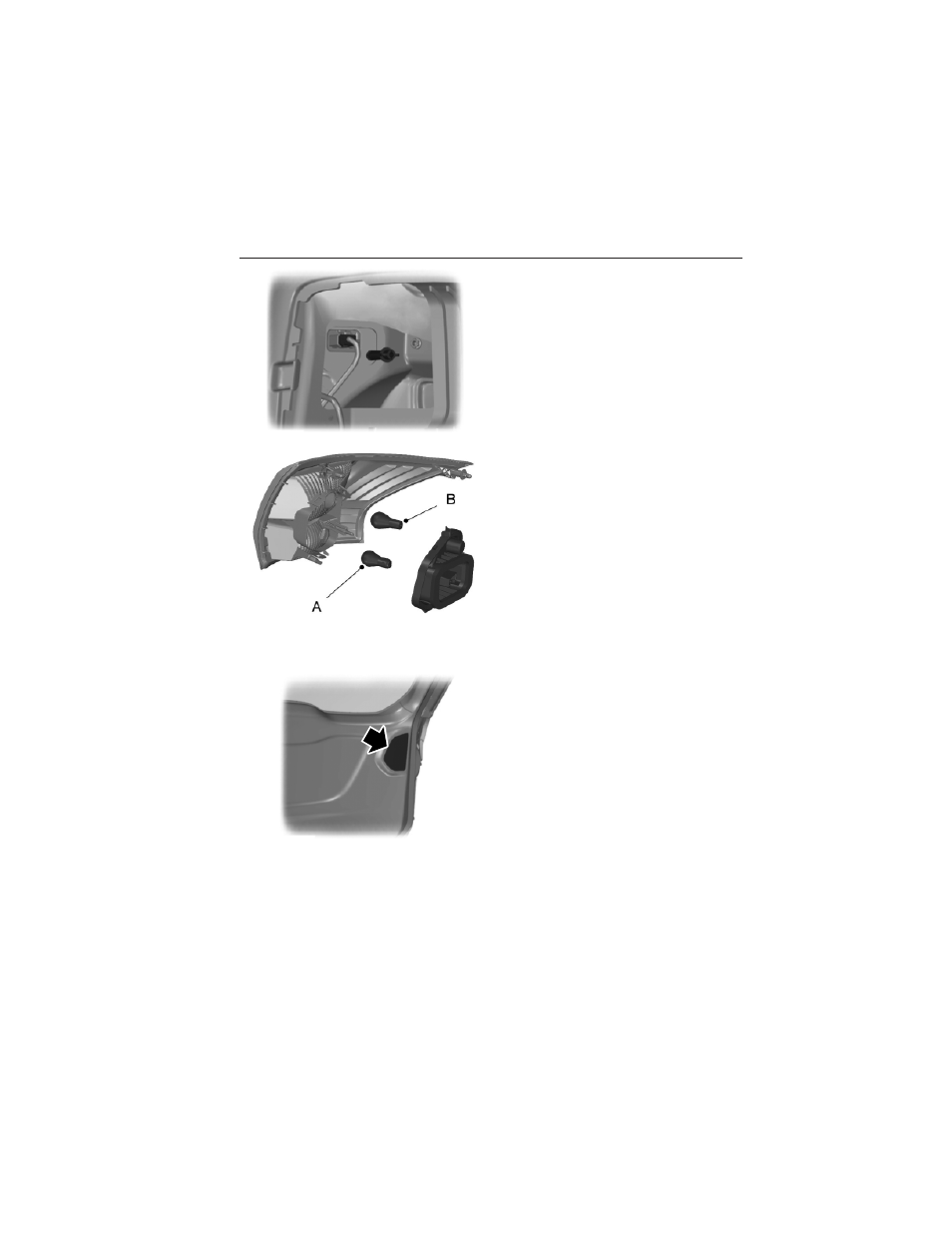

4. Disconnect the electrical
connector.
5. Remove the wing nut.
6. Gently pull the lamp assembly
away from the vehicle
7. Remove the bulb holder.
8. Gently press the bulb into
the bulb holder, turn the bulb
counterclockwise, and remove
the bulb.
A. Tail lamp and brake lamp
B. Turn lamp
Install the new bulb in reverse order.
Replacing the Reverse Lamp and Tail Lamp Bulbs:
1. Make sure the lighting control is
in the off position.
2. Open the liftgate.
3. Remove the trim panel cover.
306
Maintenance
2013 C-Max Full Hybrid (34h)
Owners Guide gf, 3rd Printing, January 2013
USA (fus)
