Page 15

13
ASSEMBLY

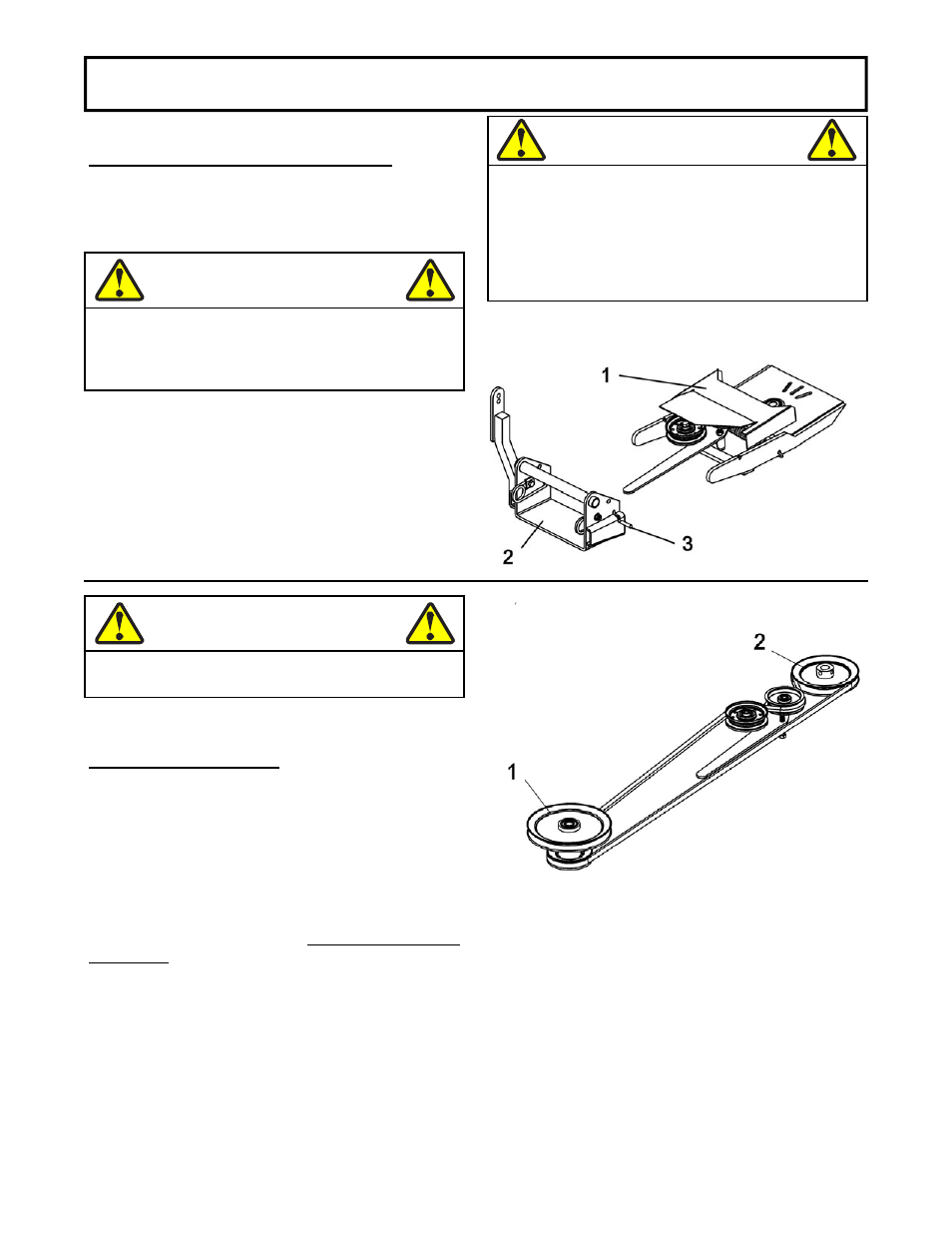

Attach the rotary broom (item 1) to the subframe (item
2) as shown.
Make sure the rotary broom is pushed in until locked
into place by the springs (item 3).
Install belt
STEP 6
ROTARY BROOM INSTALLATION:
Refer to rotary broom owner’s manual, parts
breakdown section for parts identification.
BELT INSTALLATION
NOTE: See belt replacement instructions in the
maintenance section of the owner’s manual for the
broom.
Remove the belt guard.
Install the belt on the drive mechanism pulley (item 1)
as shown.
Reinstall the belt guard.
TIP: Because of strong tension on the spring and to
facilitate installation of the belt, the broom must be on
the ground and remove the belt from the engine
pulley.
Install rotary broom
Item 1: Drive mechanism pulley
Item 2: Rotary broom pulley
WARNING
TO PREVENT INJURIES:
Stop the motor.
Apply parking brake.
Remove the ignition key.
Disconnect the wire from the spark plug(s) and
keep away from spark plug(s) to prevent accidental
starting.
CAUTION
Never use the Rotary Broom without the belt
guard.
WARNING
FOR YOUR SECURITY:
Read the Rotary Broom owner's manual for
safety precautions and rules.
Follow the assembly and operation instructions.
