Assembly – Bercomac Subframe & Drive Mechanism for JOHN DEERE Series X300 User Manual
Page 10

8

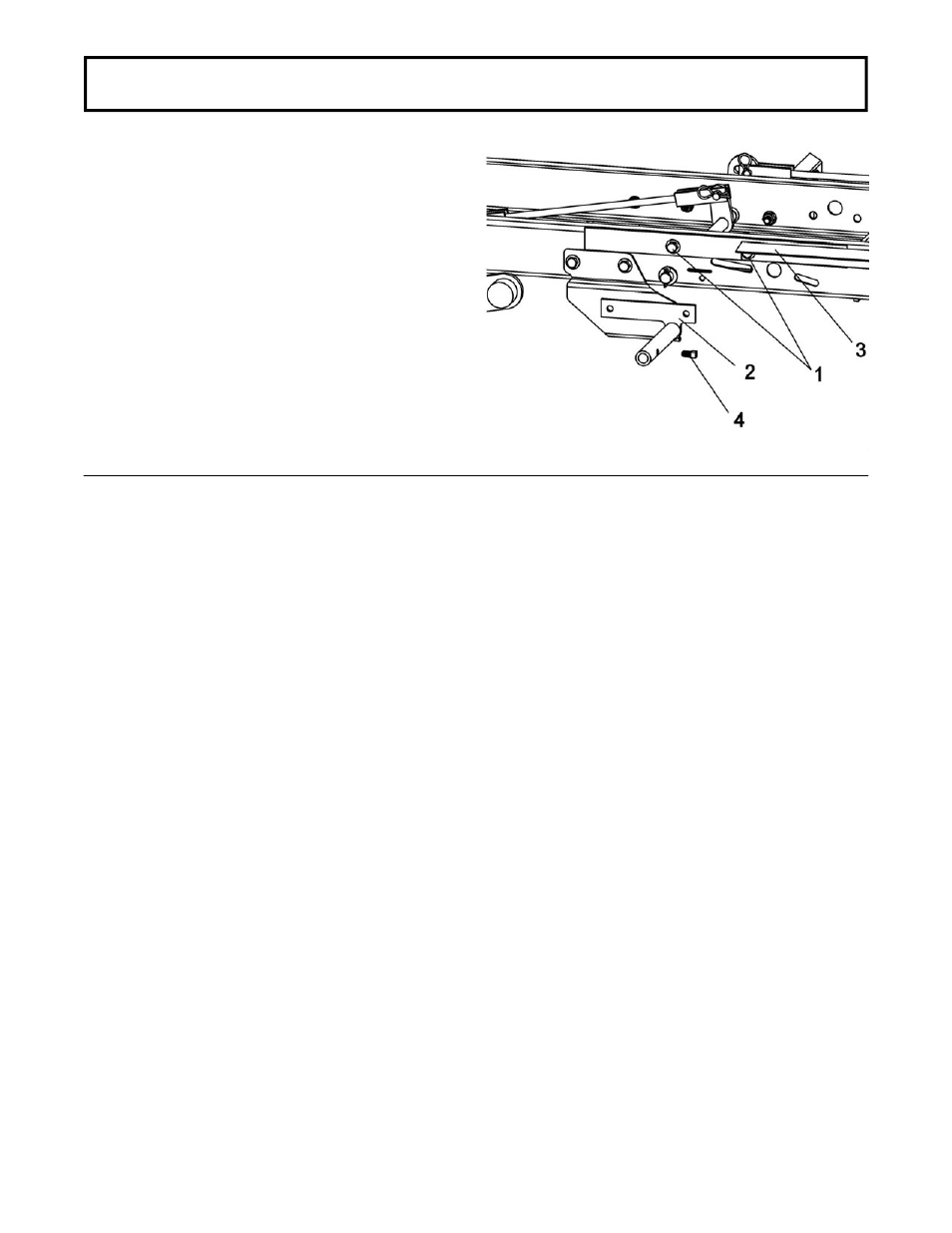

Remove the two bolts (item 1) from the right as
shown.
Install the cab support (item 2) under the heat shield
(item 3) on the tractor frame.
Secure in place with the two bolts removed
previously.
Tighten firmly.
Screw the square head set screw 5/16" x 1/2" (item 4)
into the hole of the cab support.
ASSEMBLY
Install the right cab support
