Cooper Instruments & Systems DPG 100 Digital Pressure Test Gage - Manual (Page 19)

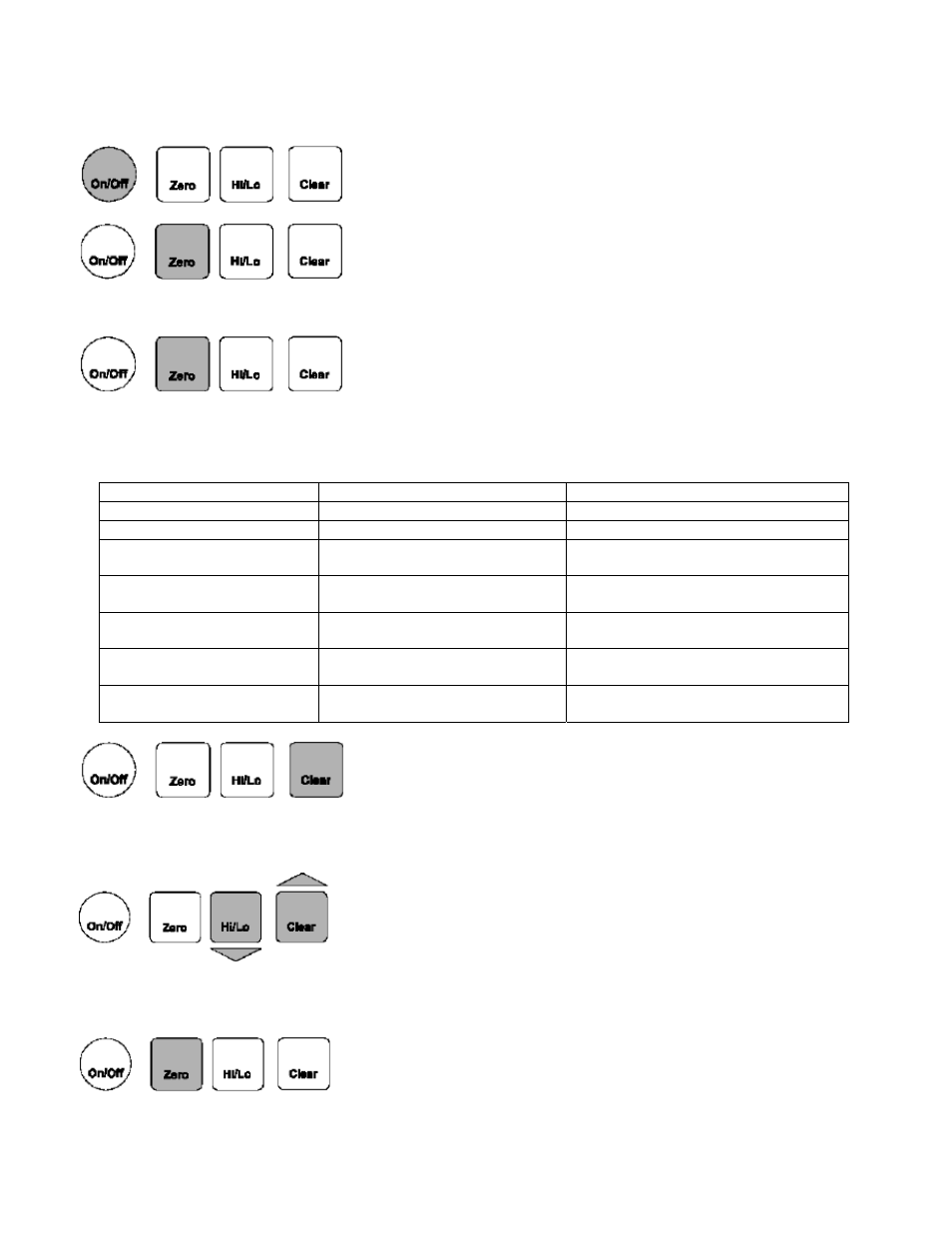

To change a feature with the Setup Menu:
Make sure the instrument is turned off. Press the [On/Off] button.
While unit is checking the display (lighting all LCD segments
simultaneously), press and hold down the [Zero] button.
The display now reads "L-LO”, which is the first item of the Setup Menu. Release the [Zero] button.
Pressing and releasing the [Zero] button will scroll down through the
available Setup Menu items.
The table below provides a list of the items available in the Setup Menu and a brief description of each.
Table 4: Setup Menu Items
Display Menu Item Purpose
L-LO low limit setpoint Change low limit setpoint
L-HI High limit setpoint Change high limit setpoint
EO Enable Options
Enable Auto-Off feature; Disable front
panel buttons
UNIT Engineering units
Change engineering units used to
display pressure
A-LO Analog Output Zero Scale
Force analog output to 0 Volts or 4
mA
A-HI Analog Output Full Scale
Force analog output to 5 Volts or 20
mA
VER Firmware version
Display internal firmware part number
and revision
When the menu item you wish to change is displayed, press [Clear].
The display now shows the present setting of that menu item. If you only wish to examine the present setting of the
menu item, you can use the [On/Off] button to turn the instrument off. Otherwise...
Use the [Hi/Lo] and [Clear] buttons to scroll up and down, respectively. Hold
a button down to change limit setpoints at a faster rate.
If you wish to abandon the changes you made to this setting, you can use the [On/Off] button to turn the instrument
off. Otherwise...
Once the setting you want is displayed, press the [Zero] button to store this
setting into memory.
After the instrument stores the setting into memory, the next menu item will be displayed.
DPG 100 16 Rev Feb 2001
