Interface: 3 feet of cable with strain relief
Update Rate: same as display
Minimum Output:: At least -2.5% of full scale
Maximum Output: At least 102.5% of full scale
Reverse Voltage Protected: Yes

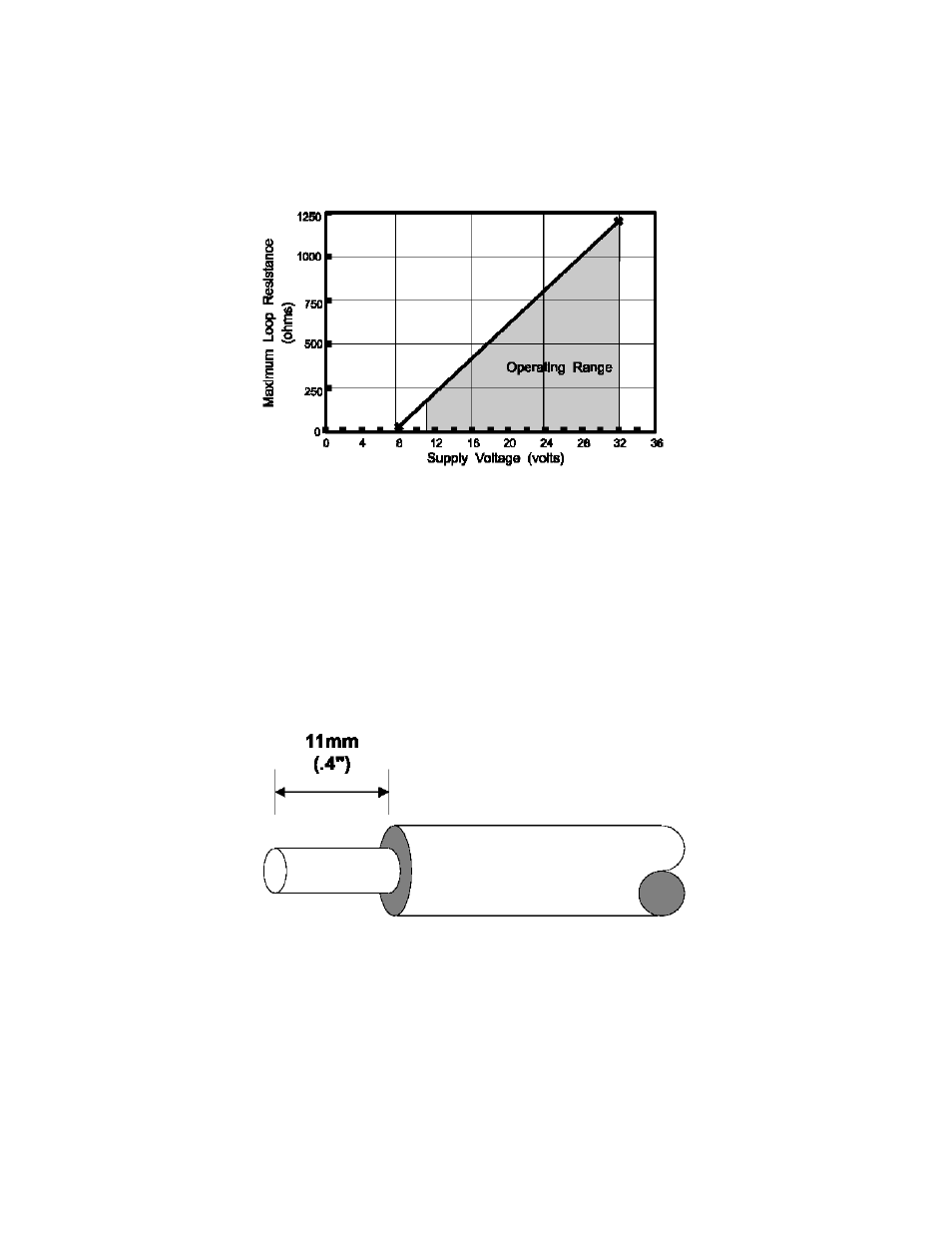

Figure 5-1: Load/power curve for 4-20 mA output
5.3 Wiring Codes And Schematics
5.3.1 Wiring To The Terminal Blocks
Although each digital pressure gauge comes completely wired with 3 feet of cable, it may be desired to remove the
cable and directly wire to the terminal blocks on the analog circuit board.
A small flat-blade screwdriver should be used to press the orange opening lever on the terminal blocks when
installing or removing wires. To achieve a reliable connection, use either fine stranded or solid stranded wire size
0.5mm2 or 20 AWG.
The wire must be stripped as shown in the "Wire stripping diagram" below.
Figure 5-2: Wire stripping diagram
DPG 100 12 Rev Feb 2001
