Rear Panel Connectors

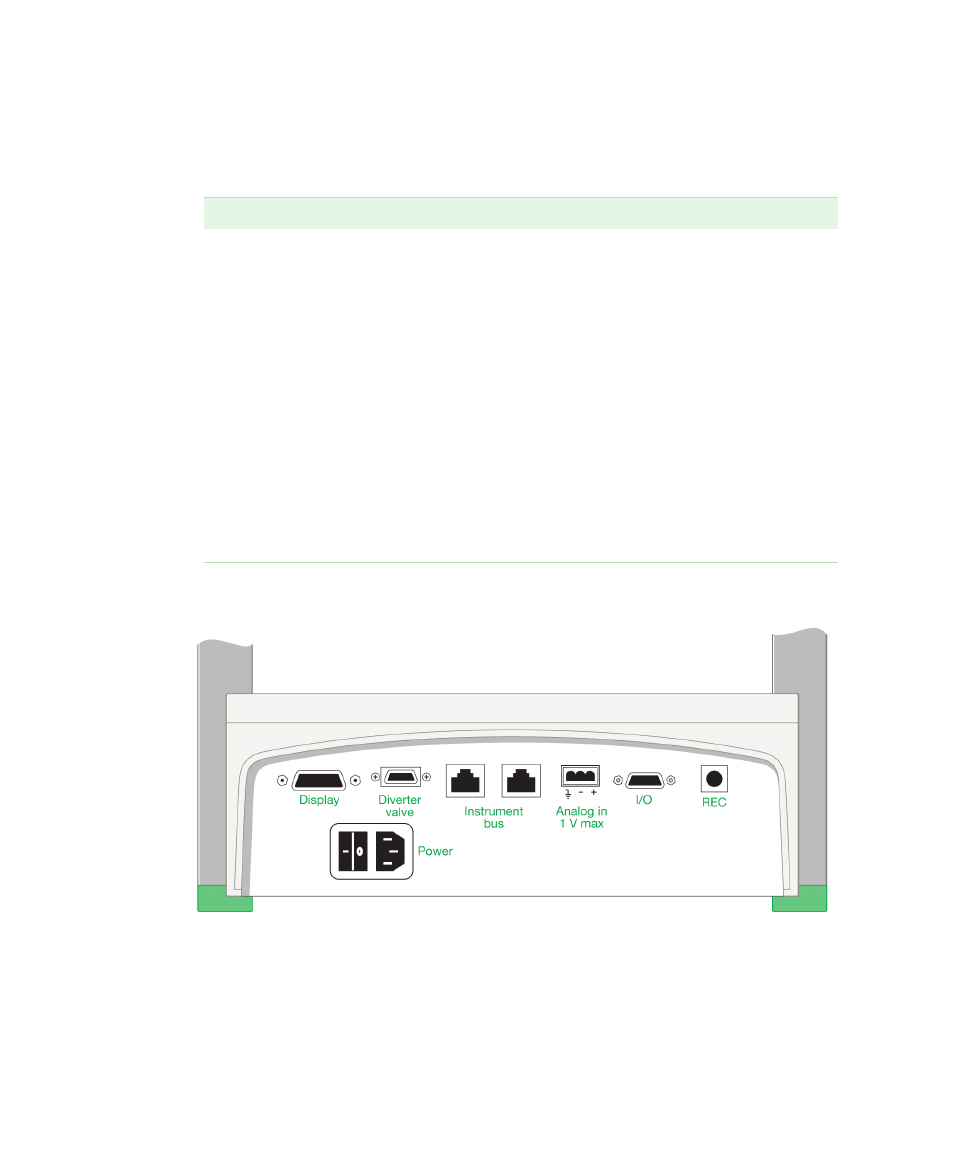

Fig. 5. Rear panel connectors.
Table 1. Front panel controls
Feature Description
Cursor keys Used to move the cursor on the LCD display up, down,
left, or right.
Function keys These five keys are located directly below the LCD
display. The function each key executes is displayed
above it.
Clear Entry key Clears a cursor field or closes a menu option list.
Decimal point key Used to enter a decimal point.
Enter key Accepts a numeric value that has been entered.
Alphanumeric keypad Used to enter a decimal value in numeric fields and
alphanumeric characters in text fields. In a text field, the
character displayed is incremented with each press of
the keypad (for example, pressing the 2 key in turn
displays 2, A, B, C, 2, and so on.)
