Echosounder
The echosounder function provides a view of the water and bottom beneath your vessel,
allowing you to detect fish and examine the structure of the sea floor.
The Zeus
2 units do not include built in echosounder or StructureScan. An external module
such as the SonarHub, BSM-3 or other compatible modules must be available on the network
to be able to use echosounder functionality on the Zeus
2 .

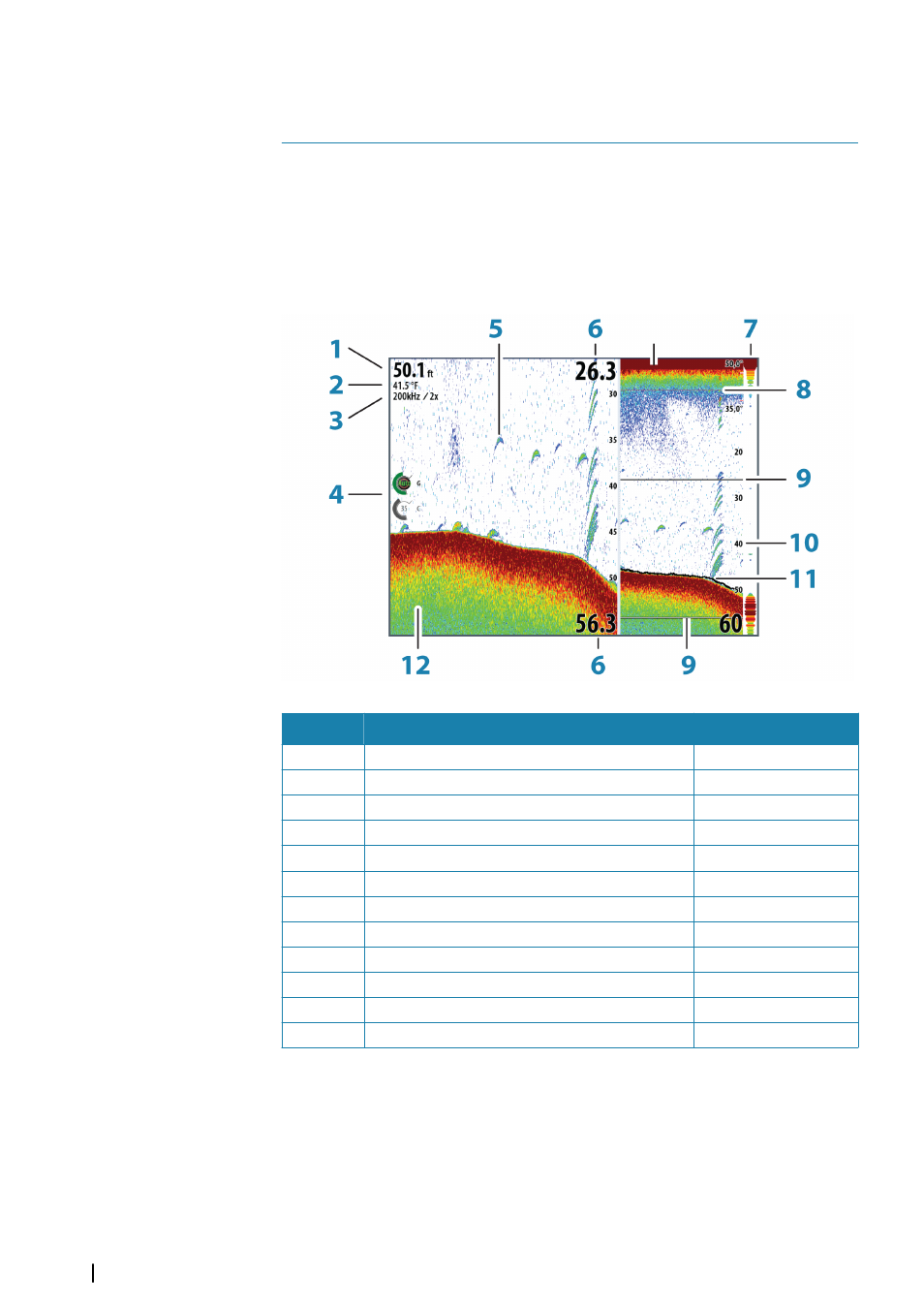

The Echosounder image
Key Description Comment
1 Depth
2 Temperature
3 Frequency / Zoom
4 Gain / Color adjustment icons
5 Fish arches
6 Upper and Lower range
7 A-Scope *
8 Temperature graph *
9 Zoom bars *
10 Range scale
11 Depth line *
12 Bottom
* Optional echosounder image items.
Ú Note: You turn the optional echosounder images on/off individually. See "Echosounder settings
panel" on page 69.
