Charts
The chart function displays your vessel’s position relative to land and other chart objects. On
the chart panel you can plan and navigate routes, place waypoints and display AIS targets.
You can overlay a radar image, a StructureScan image or weather information.

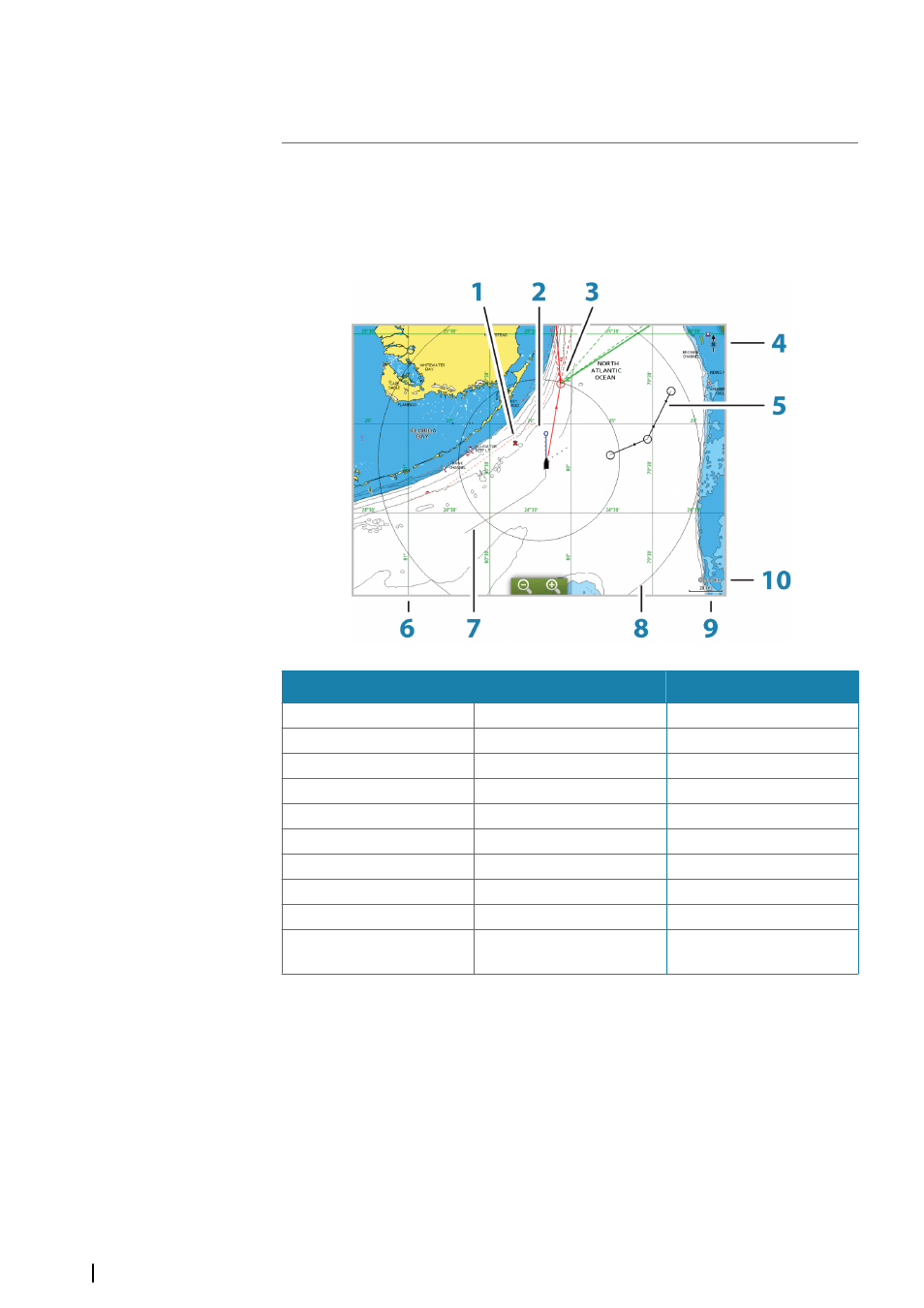

The Chart panel
Key Description Comment
1 MOB (Man Over Board) mark
2 Vessel with extension line Extension line is optional
3 Waypoint with Laylines *
4 North indicator
5 Route *
6 Grid lines *
7 Track *
8 Range rings *
9 Chart range scale
10 Range rings interval
Only displayed when Range
rings are turned on
* Optional chart items
Ú Note: You turn the optional images on/off individually. For more information, see "Chart
settings" on page 29.
