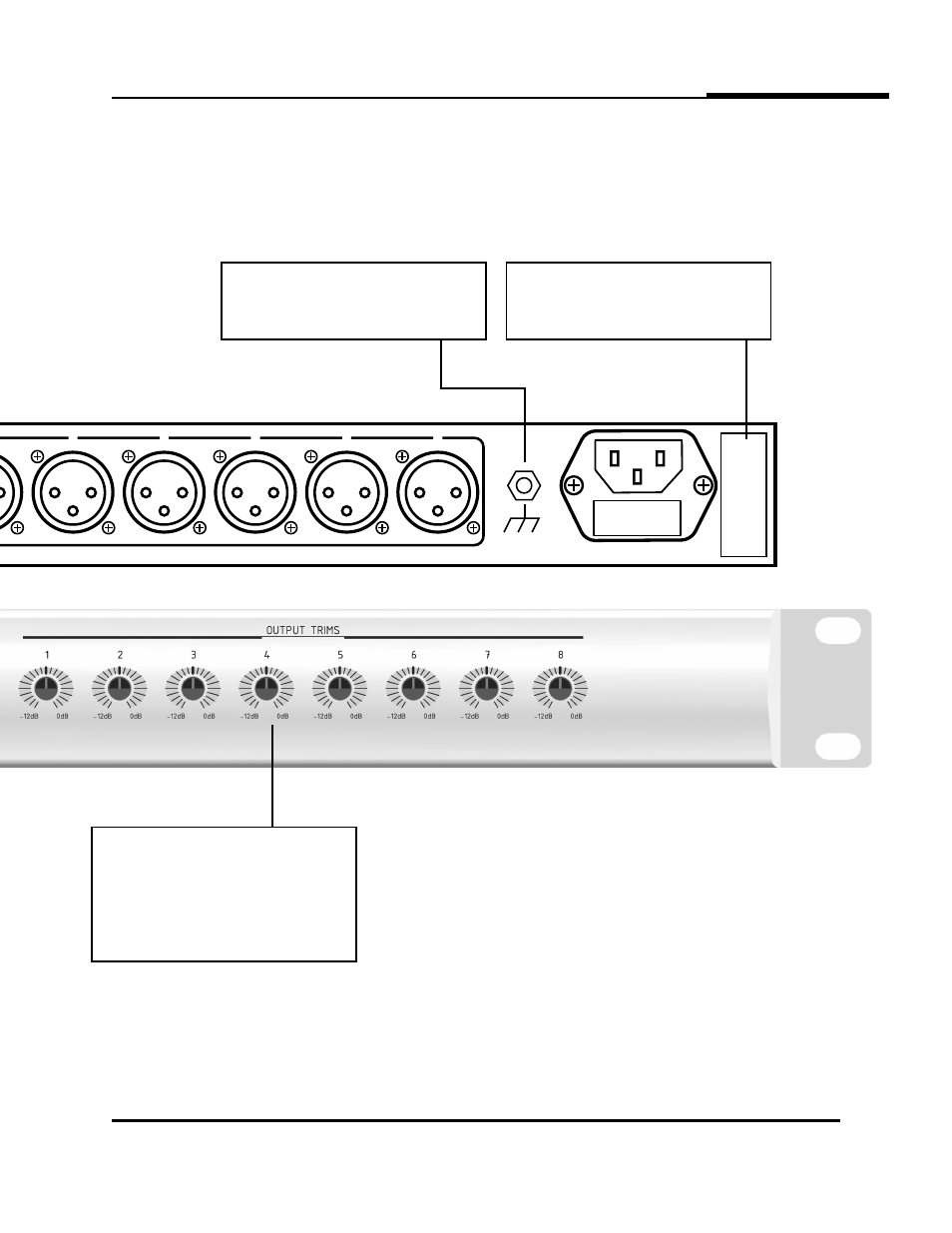

Quick Start
OUTPUT TRIMS
Set the gain of each interface channel: Fully
clockwise, the gain is calibrated so a -10dBV
unbalanced input produces a +4dBu balanced
output. Fully CCW, the gain is unity.
NOTE: No extra gain is provided for input
levels below -10dBV.
2
3
4
5
6
7
8
UNBALANCED
INPUTS
BALANCED OUTPUTS
8
7
6
5
4
3
2
1
FUSE
1
CHECK VOLTAGE
Be sure it is configured for your power mains
voltage. It is not user adjustable.
Voltage and F
use
Ratings Label
CHASSIS GROUND
Connect to local ground bus if needed to
reduce hum.
