Owner’s Manual
9

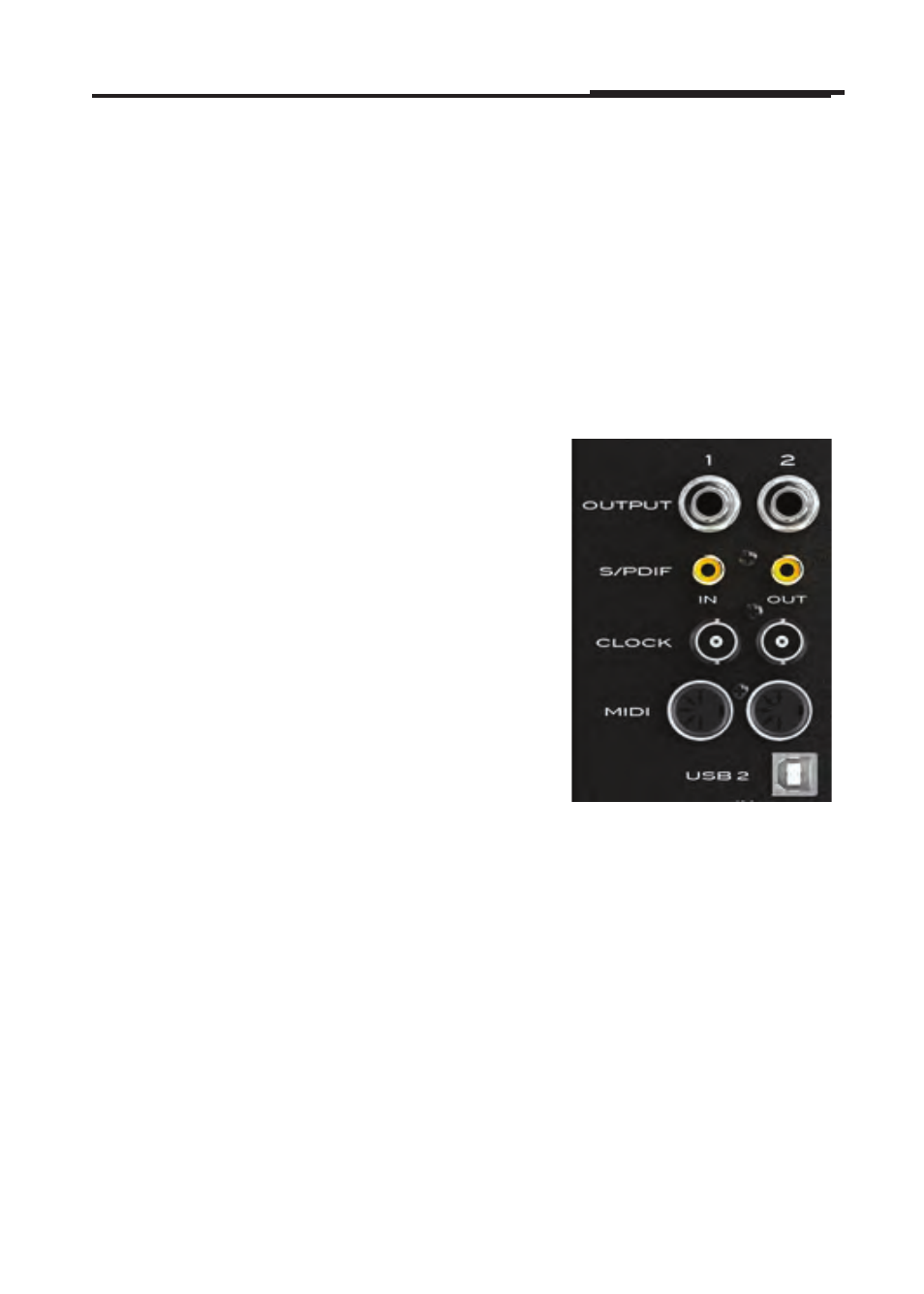

ANALOG OUTPUTS 1 & 2
These balanced TRS 1/4
” outputs would normally be connected to a
pair of powered studio monitors. The output level is controlled by the
front panel volume knob.
S/PDIF INPUT & OUTPUT
The coaxial, 75-Ohm digital input allows you to record 24-bit digital
signals in to your DAW at sample rates up to 96kHz.
The coaxial, 75-Ohm digital output allows you to send an assigned
pair of DAW outputs to another digital device.
WORD CLOCK INPUT & OUTPUT
These BNC connectors allow the USB 500
Rack to be a word clock master or slave.
MIDI INPUT & OUTPUT
These jacks allow your DAW to send and
receive MIDI information. Uses include
connecting a control surface, send/receive
MIDI Clock or MIDI Time Code, send MIDI
program changes, etc. Consult the MIDI
section of your DAWs manual for more
information.
4.0 Operating Modes
The following examples will show you how to setup the USB 500
Rack for different uses.
CHANNEL STRIP MODE
EXAMPLE:
Slot 1 = Mic Pre
Slot 2 = Compressor
Slot 3 = EQ
Slot 4 = Exciter
