Amico Light-Duty Monitor Arm - Manual (Page 4)

4 Amico Accessories Inc.
SECTION 1: Product Specifications
Features
• Ideal for applications where only occasional adjustment is needed
• Available with or without extension
• Ideal for monitors 8-17 lbs (3.6-7.7 kg)
• Cable management made easy
• Screens can be mounted in landscape or portrait orientation
• Multiple mounting options available

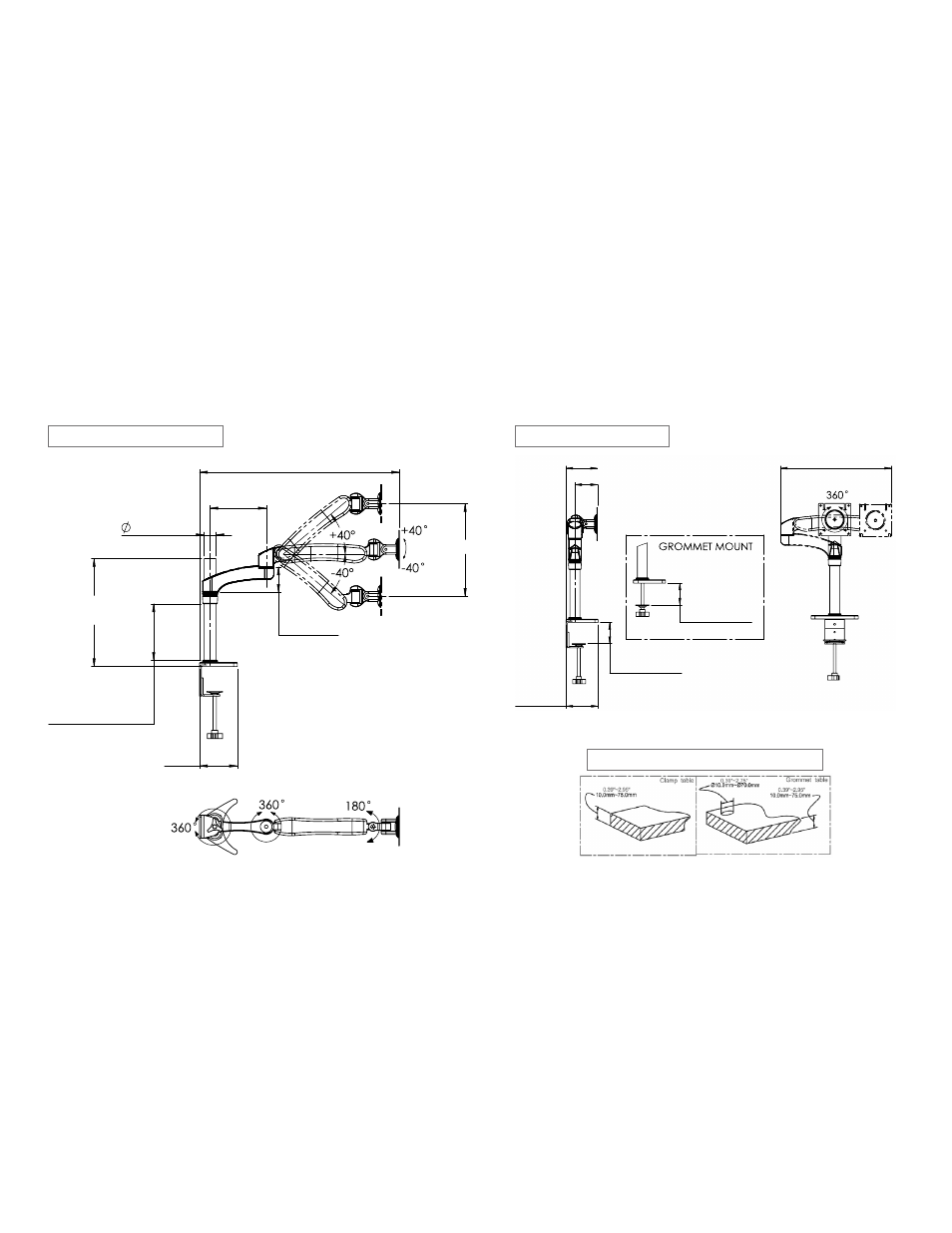

FOLDED POSITION
DESCRIPTION:
PART NO:
SCALE:
DRAWN BY:
CHECKED BY:
SHT. OF
DRAWING NO:
NTS
DATE:
DATE:
PROJECTION
www.amico.com
4" [10.16 cm]
3" [7.62 cm]
0.39" - 2.95"
[0.99 cm - 7.49 cm]
0.39" - 2.95"
[0.99 cm - 7.49 cm]
5" [12.7 cm]
16" [40.64 cm]
FOLDED POSITION EXTENDED POSITION
SURFACE MOUNTING DETAIL
3" [7.62 cm]
EXTENDED POSITION
NOTE:
L - LONG POST
S - SHORT POST
DESCRIPTION:
PART NO:
SCALE:
DRAWN BY:
CHECKED BY:
SHT. OF
DRAWING NO:
NTS
DATE:
DATE:
PROJECTION
www.amico.com
24" [60.96 cm]
11" [27.94 cm]
7" [17.78 cm]
L= 13" [33.02 cm]
S= 6" [15.24 cm]
5" [12.7 cm] Height
Adjustment for
Long Post Only
5" [12.7 cm]
1" [2.54 cm]
