Amico Light-Duty Monitor Arm User Manual
Page 14

14
Amico Accessories Inc.
SECTION 5: Adjustments

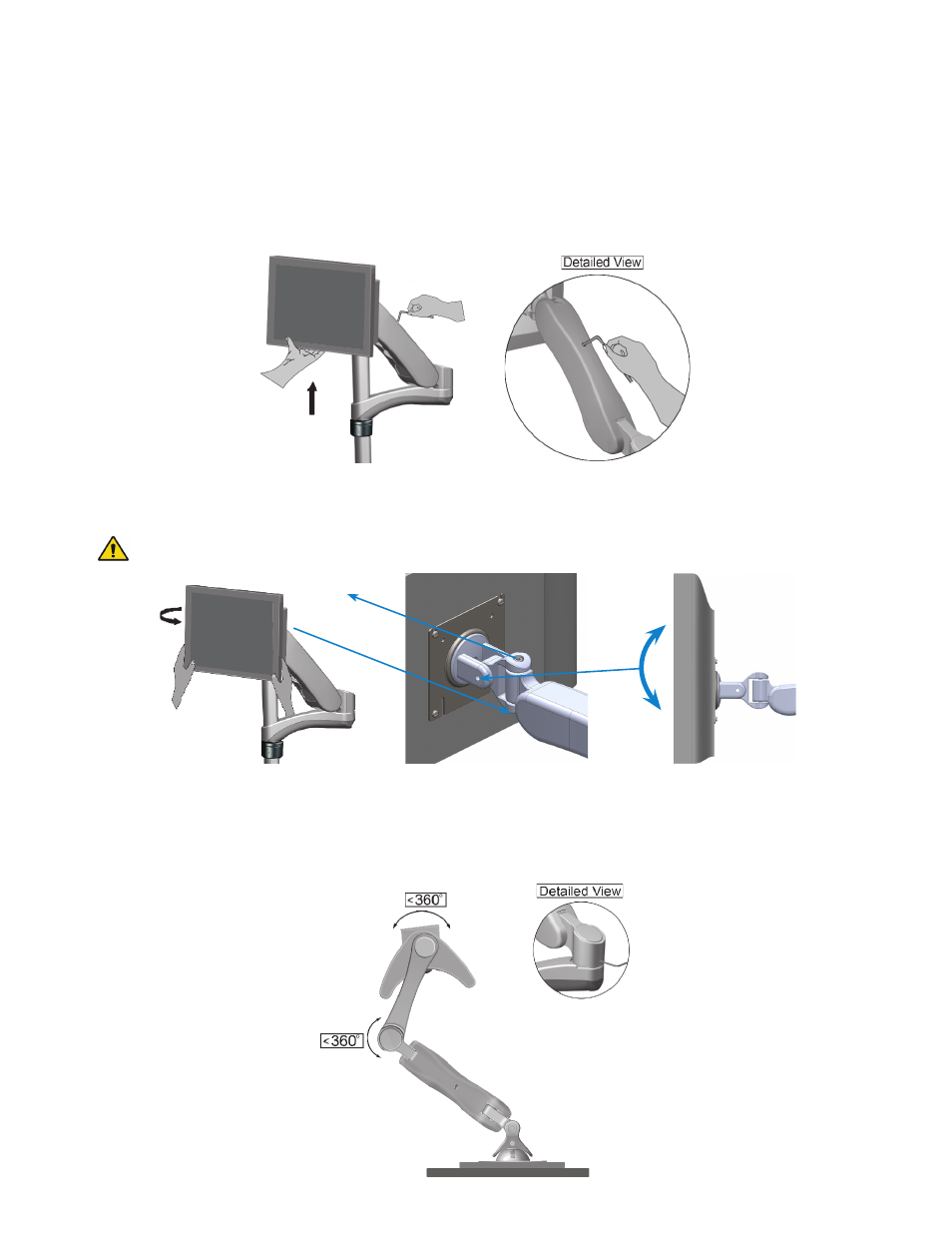

Adjustment Procedure 1
1. Adjust the screw clockwise for heavier loads and counter-clockwise for lighter loads for counterbalance as
shown in the detailed view below, with a 5 mm HEX key.
2. Tighten or loosen the appropriate screw as shown below to adjust the monitor’s position accordingly. For
swivelling, use a 5 mm HEX key. For tilting, use a 6 mm HEX key.
WARNING
Do not loosen top screw. Doing so may cause the head assembly to fall off.
Adjustment Procedure 2
1. To adjust the tension on the movement of the arm, tighten or loosen the screw in the appropriate joints as
shown in the detailed view below using a 2.5 mm HEX key.
pressure plate
Top screw
