PrimeProbe2 User Manual
18

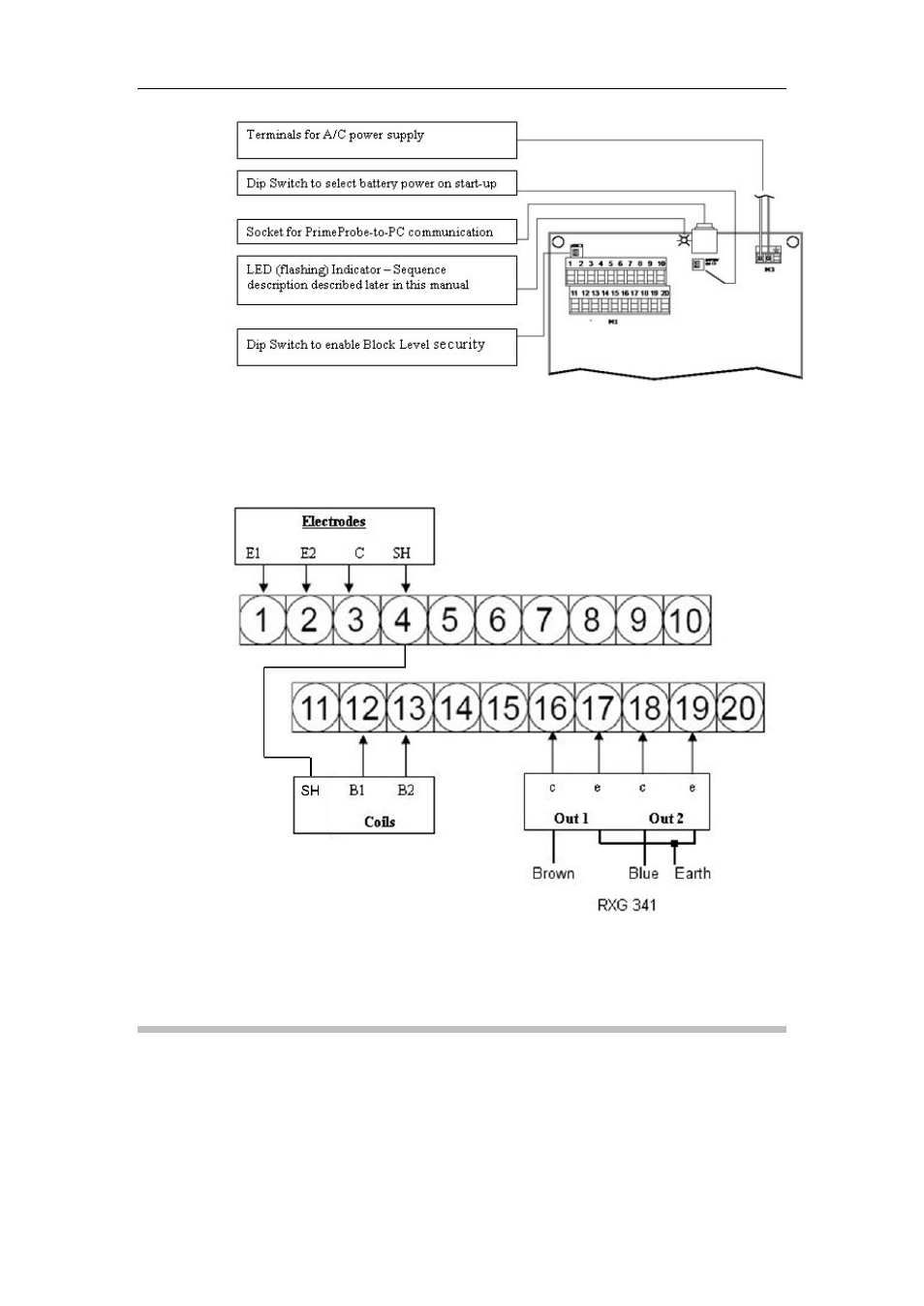

3. Insert the two sensor cables through the cable glands into the
termination area of the converter.
4. With the back removed and the terminals exposed, terminate the
appropriate wires at the numbered terminals.
5. To use the pulse output of the PrimeProbe2, connect the
appropriate digital output cable to terminals 16 & 17 (output 1) and
18 & 19 (output 2).
Pulse Output Characteristics
The pulse output has the following technical characteristics:
 Opto-insulated output with floating collector and emitter terminals,
freely connectable
 Maximum switching voltage: 40Vdc
