PrimeProbe2 User Manual
17

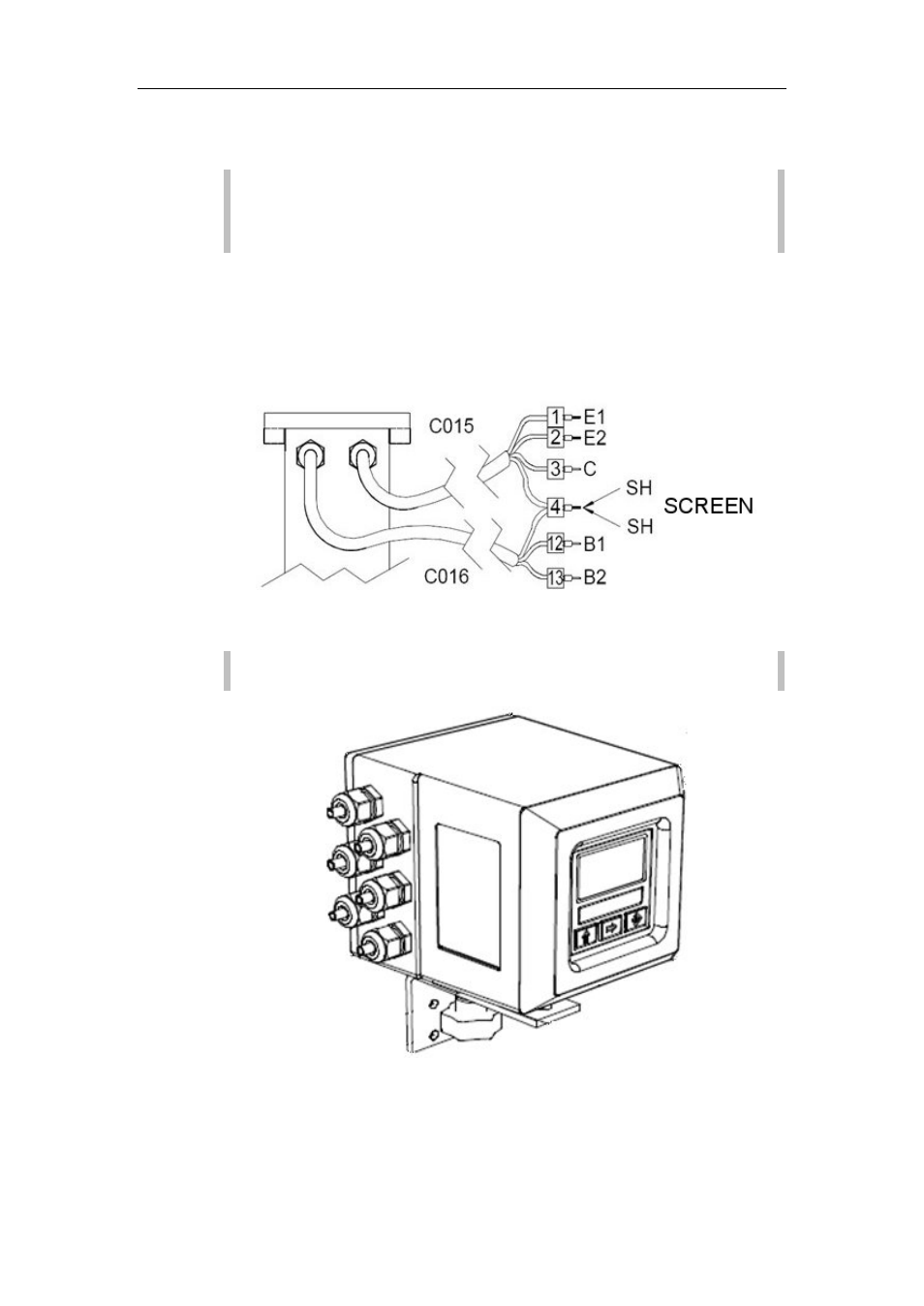

Connecting the Converter to the Sensor
Note: Only the remote version requires the user to connect the
sensor to the converter; the compact version is connected internally
at the factory.
ADS delivers the remote PrimeProbe2 with the sensor cables terminated
and potted at the sensor-end. Therefore, no further user intervention at the
sensor terminal box should be necessary. However, ADS has intentionally
left the converter-end of the cables loose, allowing the user to cut the
sensor cables length to accommodate the application. ADS does not
recommend extending the cables because each cable has a separate screen.
Connect the converter to the sensor in the following way:
1. Loosen the two lowest cable glands on the side of the converter.
Warning: Be sure that power is not connected to the converter.
2. Remove the back panel from the converter.
