Great Plains Manufacturing, Inc. Assembly 17
03/19/2014 586-536Q
Lights & SMV
Refer to Figure 18
Note: See layout drawings in Appendix for proper light bracket
placement as all four brackets are different. If machine is
equipped with a rear attachment the rear light brackets
will need to be mounted to the rear tube of the center
drag frame. The SMV sign will be shipped in a bag and
will need installed on the rear of the machine.
63. Remove u-bolts from light brackets. Install the and
light brackets with the 1/2 x 3 1/32 x 6 u-bolts , 1/2 lock
washers and 1/2 nuts.
64. Attach the SMV sign to the rear of the smv bracket
with 1/4 x 3/4 pan head screws , 1/4 lock washers and 1/
4 nuts.
65. Tighten all bolts to specs, See “Torque Values Chart” on
page 26.
Rear Lights
Refer to Figure 19
Note: See layout drawings in Appendix for proper light bracket
placement. If machine is not equipped with a rear at-
tachment the rear light brackets will need to be mounted
to the rear plate of the center frame with the 3/4 x 2 bolts
.
66. Remove bolts from light brackets. Install the LH and RH
light brackets to plates of center drag frame with the
3/4 x 2 bolts , 3/4 lock washers and 3/4 nuts.
67. Tighten all bolts to specs, See “Torque Values Chart” on
page 26.

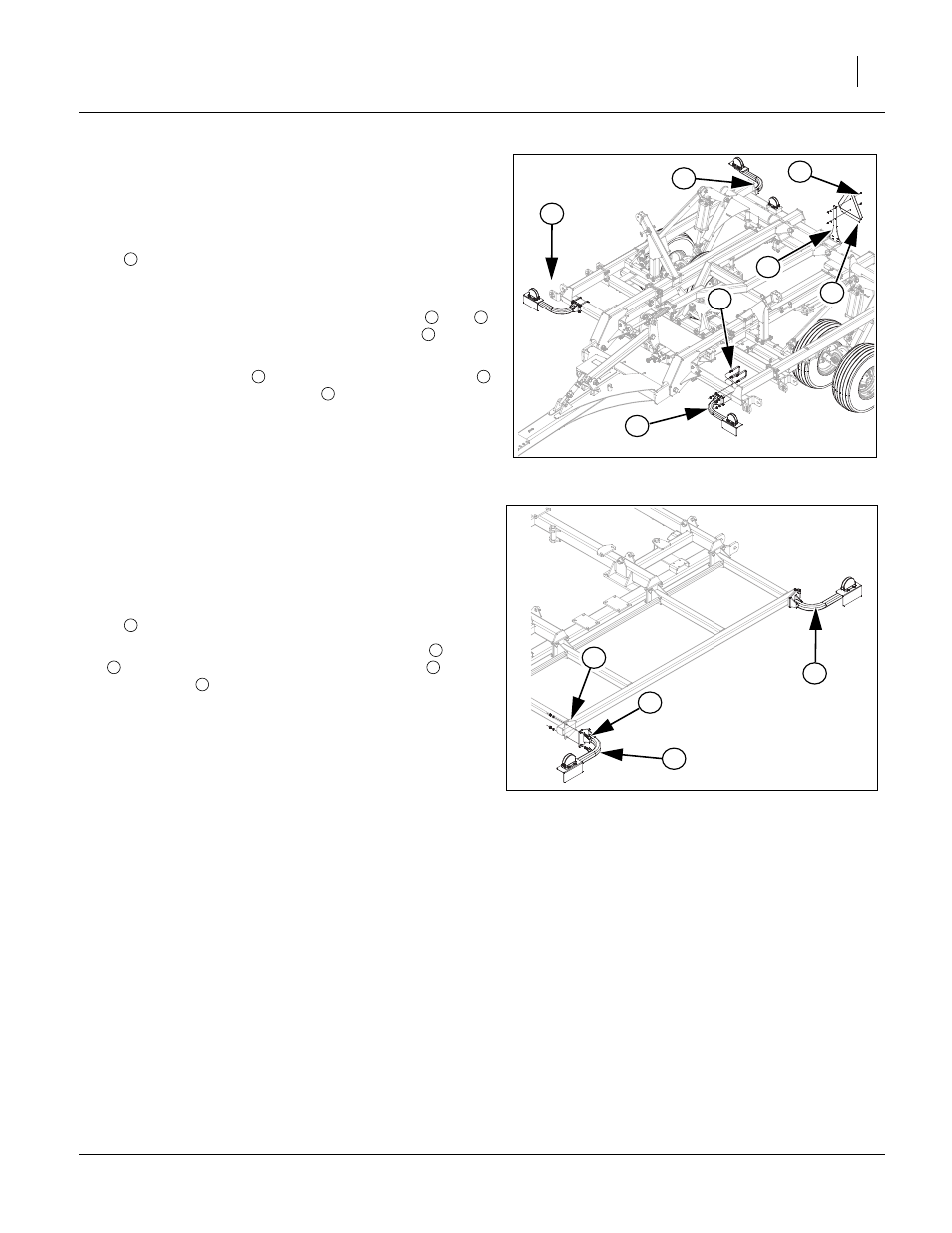

Figure 18
Lights & SMV
43114
2
1
3
7
6
4
5
7
1 2
3
4 5
6
Figure 19
Rear Lights
43115
2
3
1
4
3
1
2 4
3
