Valve Brackets & Hoses

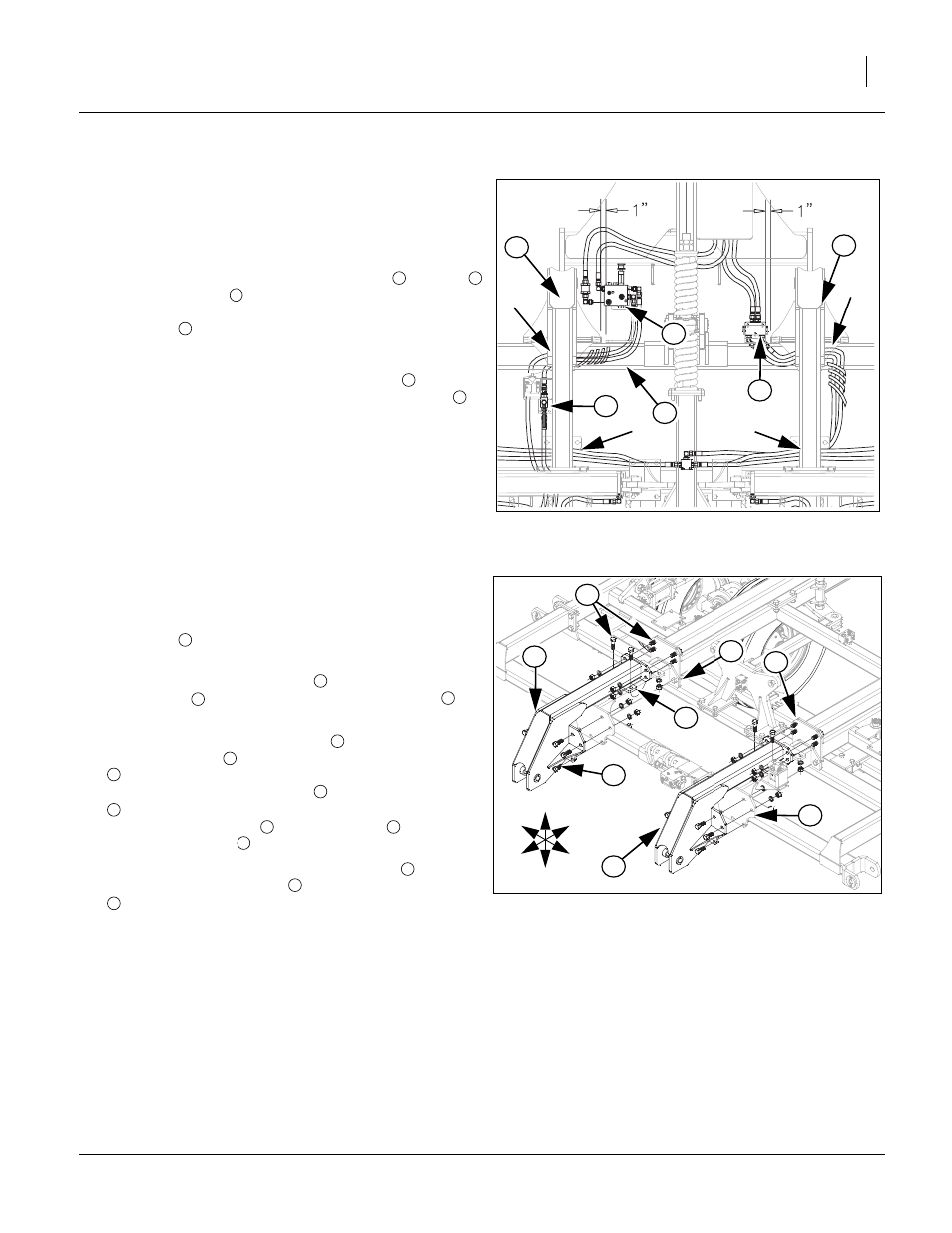

Refer to Figure 7
Note: The hoses will be shipped hooked up to valves and cyl-
inders. The front valves and hoses (that will need rout-
ed through front brace bar, trusses and up hitch to
tractor) will be rolled up and tied to front of center frame
during shipping. The wing fold two way
, bypass
and lock valves
will need mounted in proper location
as shown and hoses routed correctly before front
trusses
and hitch are installed so front weight kits
may be installed or removed without taking hoses or
valves loose. The hoses need to route in locations
shown with arrows, on top of wing brace
to outside
of tubes then back to inside. Install front trusses
on
top of hoses as shown. The two valve plates will be
mounted in correct location but will need turned around
180 degrees on tube so they are facing forward on ma-
chine. Set them 1” from truss plates as shown. See
“Valve Brackets & Valves” on page 8 for proper
mounting instructions.
Front Trusses
Note: Be sure hoses are routed as shown in See “Valve
Brackets & Hoses” on page 9. before mounting front
trusses
.
27. Remove the eight, 3/4 lock washers and 3/4 nuts from
the 3/4 x 2 1/2 Gr. 5 hex bolts
in front plates of rear
truss plates
. Leave 3/4 x 2 1/2 Gr. 5 hex bolts
in
plates for ease of installation of front trusses.
28. Align rear plates of front trusses
with front plates of
rear truss plates
onto the 3/4 x 2 1/2 Gr. 5 hex bolts
. Re-install the eight,3/4 lock washers and 3/4 nuts to
the 3/4 x 2 1/2 Gr. 5 hex bolts
of the rear truss plates
, secure with the 3/4 lock washers and 3/4 nuts.
Secure two hole plate
of front trusses
with 3/4 x 2
1/2 hex bolts Gr. 5
, 3/4 lock washers and 3/4 nuts
29. Secure the front plates of the front trusses
to plates
on center brace bar plates
, with 3/4 x 2 Gr. 5 hex bolts
, 3/4 lock washers and 3/4 nuts.
30. Bolts may be tightened to specs, See “Torque Values
