Great Plains 3000TM Predelivery Manual - Manual (Page 15)

Great Plains Manufacturing, Inc. Assembly 11
03/19/2014 586-536Q

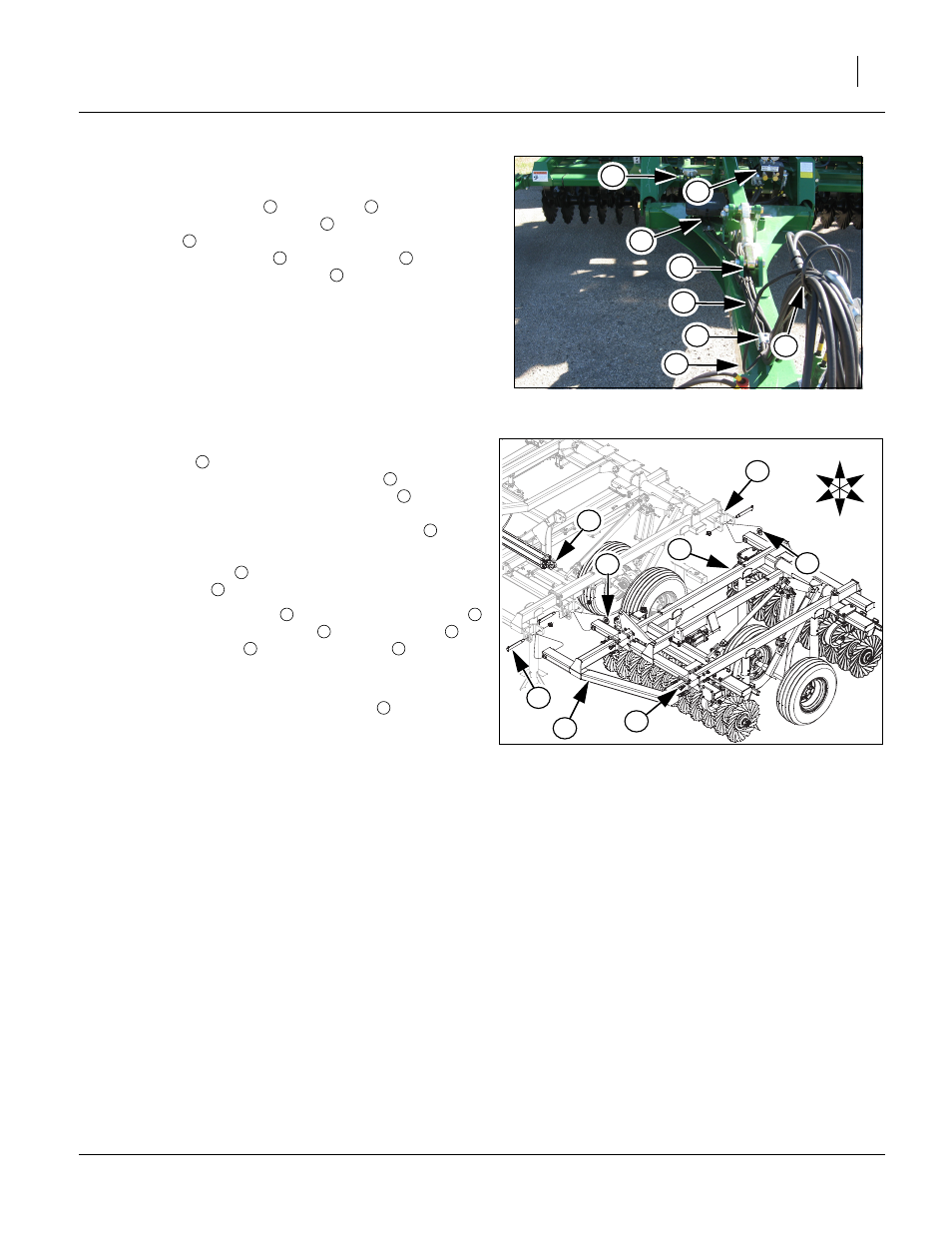

Hose Routing Hitch
Refer to Figure 11
41. Route hydraulic hoses
from valves , on center brace
bar, under manual pak bracket , under front of hitch
turnbuckle along all hose clamp blocks and through
spring hose holder loop to front of hitch as shown.
Secure hoses with hose clamps , 5/16 hex bolts and 5/
16 lock washers.
42. The light Harness will need routed with hydraulic hoses
along hitch. Be sure all bolts are tight.
Wing & Brace Bar
Refer to Figure 12
Note: The wings
will come partially pre-assembled. Models
1800-2400 will be shipped with wings attached in
folded position but will need wing braces attached as
shown. Un-fold wings before attaching wing braces. On
models 3000, place wing frame assemblies
on
stands next to center frame.
43. Attach wing brace to front of wing frame with 3/4 x 2
Gr. 5 hex bolts , 3/4 lock washers and 3/4 nuts.
44. Remove wing hinge pins from center frame hinge .
Attach wing frame assemblies to center frame with
the wing hinge pins , 1 1/4 flat washers (rear side of
wing hinge tubes only, do not use on wing brace bar) and
1 top lock nuts.
45. Do not hook up rod end of fold cylinder until system is
purged of air. See “Purging Hydraulic System 3000” on
page 15.
46. Bolt may be tightened to specs, See “Torque Values
Chart” on page 26.
Figure 11
Hose Routing Hitch
42945
5
7
2
4
3
2
1
6
1 2
3
4
5 6
7
Figure 12
Wing & Brace Bar
42390
3
2
1
7
U
D
F
B
L
R
4
5
6 6
3
3
1
3
1
2
4 5
3 5
4 6
7
