Route Y-Harness

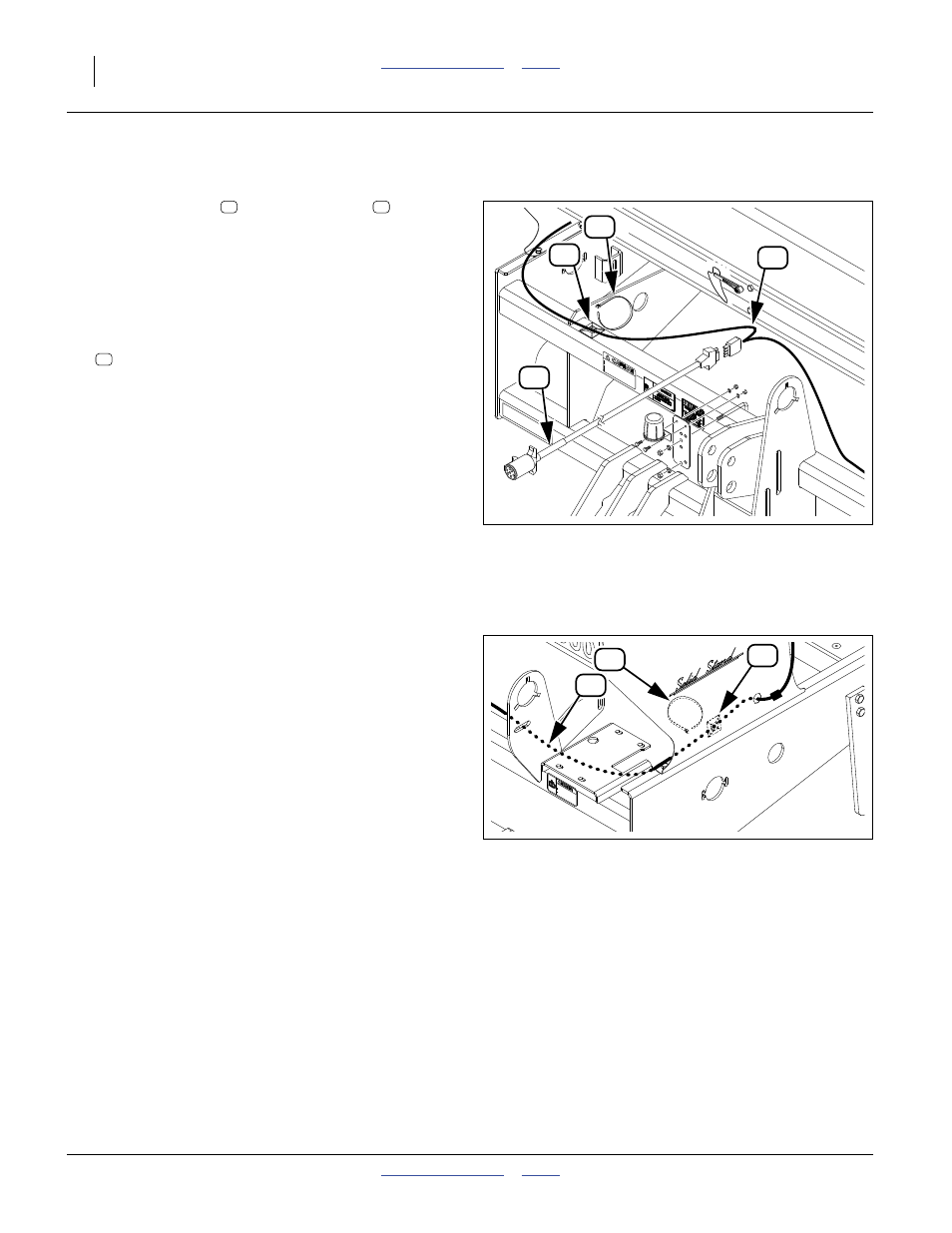

Refer to Figure 33 and Figure 34
Four cable tie mounts
and four cable ties
are
provided to secure the Y-harness as needed. Locations
shown in the illustrations are approximate. The size of
the mounts is exaggerated.
Choose a harness routing that is clear of chains,
sprockets, rotating shafts, and allows some slack along
the entire length of the harness.
5.
Select one:
890-692C LIGHT HARNESS, 6’ WISHBONE
6.
Mate the center 4-pin connector of the Y-harness to
the free end of the lighting lead @.
7.
Route the leads with 3-pin connectors to near the
lamp mounting holes. The LH and RH leads are
distinguished by a label “LEFT” on the left lead.
8.
Route the 3-pin connector end through any available
hole or gap near the lamp assembly mounting
location, as long as it meets these criteria:
Note: Defer installing cable ties until after the lamp
assemblies have been installed and tested.
• the hole is large enough for the connector, and;
• there is no rotating shaft end on the hole
center-line, with the shaft end within 2 inches of
the hole.
Figure 33
Y-Harness at Hitch
32365
Se
ed
E
F
52
53
20
19
20
19
53
Figure 34
Y-Harness at Left End
32361
19
20
53
