MT900B Series

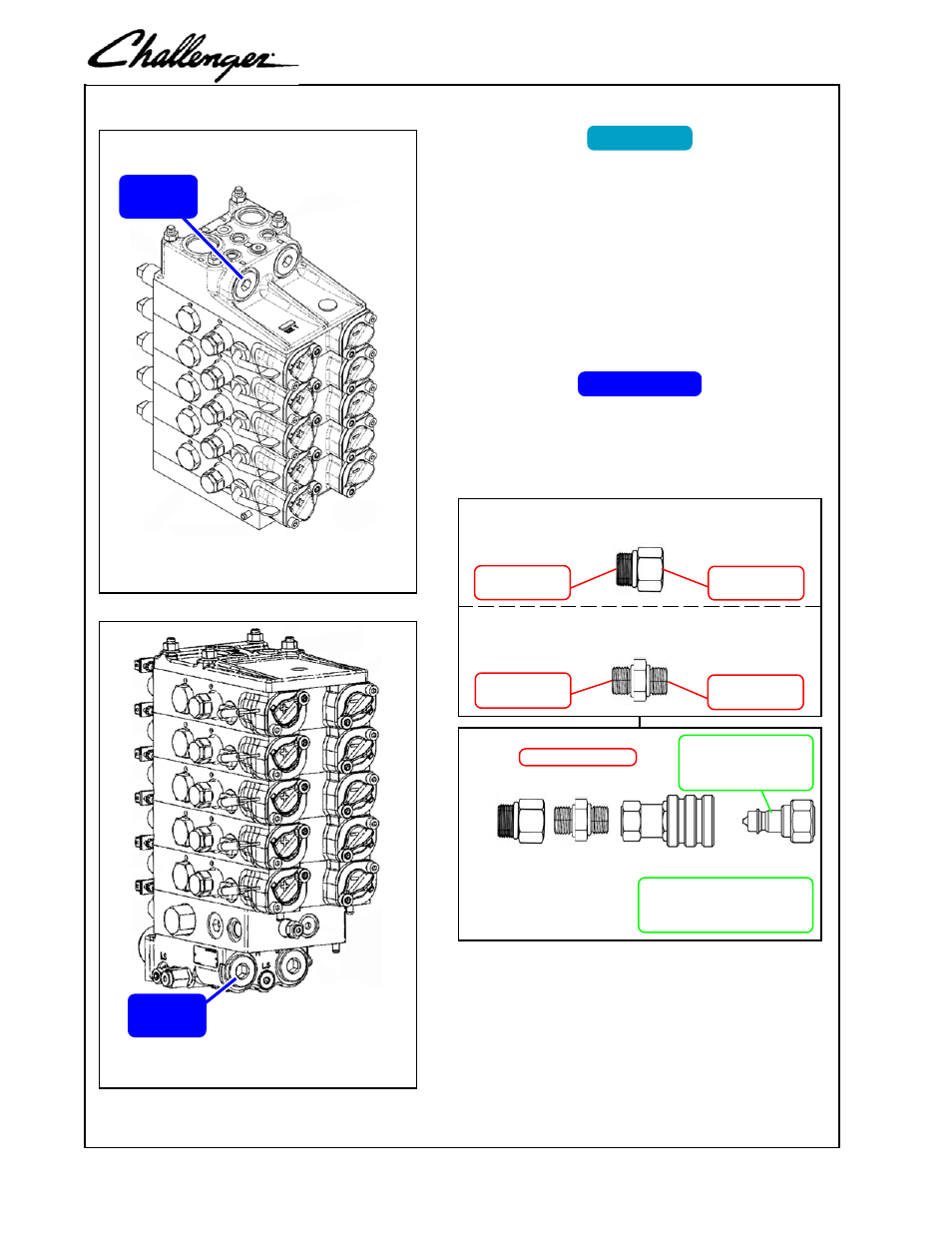

Case Drain
If the tractor is not equipped with a 3/8” body size
female flat face case drain coupler, then order
and install kit part number 512468D1 through a
Challenger dealer.
Location of the case drain varies depending on
model, year manufactured, and tractor options.
Installation instructions are included with the kit.
Consult a Challenger dealer for more
information.
Motor Return
If the tractor is not equipped with a 3/4” body
size, ISO 7241-1 Series A, female motor return
coupler, then order and install the following
parts:
Top Configuration
Bottom Configuration
IMPORTANT: ALWAYS connect case drain first,
motor return second, then pressure line to prevent
motor damage. ALWAYS disconnect pressure
line first, motor return second, then case drain last
to prevent motor damage.
Motor
Return
Motor
Return
1-1/16-12
FORB
1-5/16-12
MORB
Eaton Aeroquip P/N FF1010-1612S
Parker P/N 16-12F5OG5-S
Eaton Aeroquip P/N 2229-1212S
Parker P/N 12F5OHAO-S
1-1/16-12
FORB
1-1/16-12
MORB
supplied with Great Plains
planters and air drills
p/n 811-069C
connected to fan
motor return hose
from Great Plains
}
}
connect to tractor
