page 13 of 28
Great Plains Manufacturing reserves the right to make changes or to add improvements to this guide at any time without notice or obligation.
ba082710 r3
CDMR 08/27/10

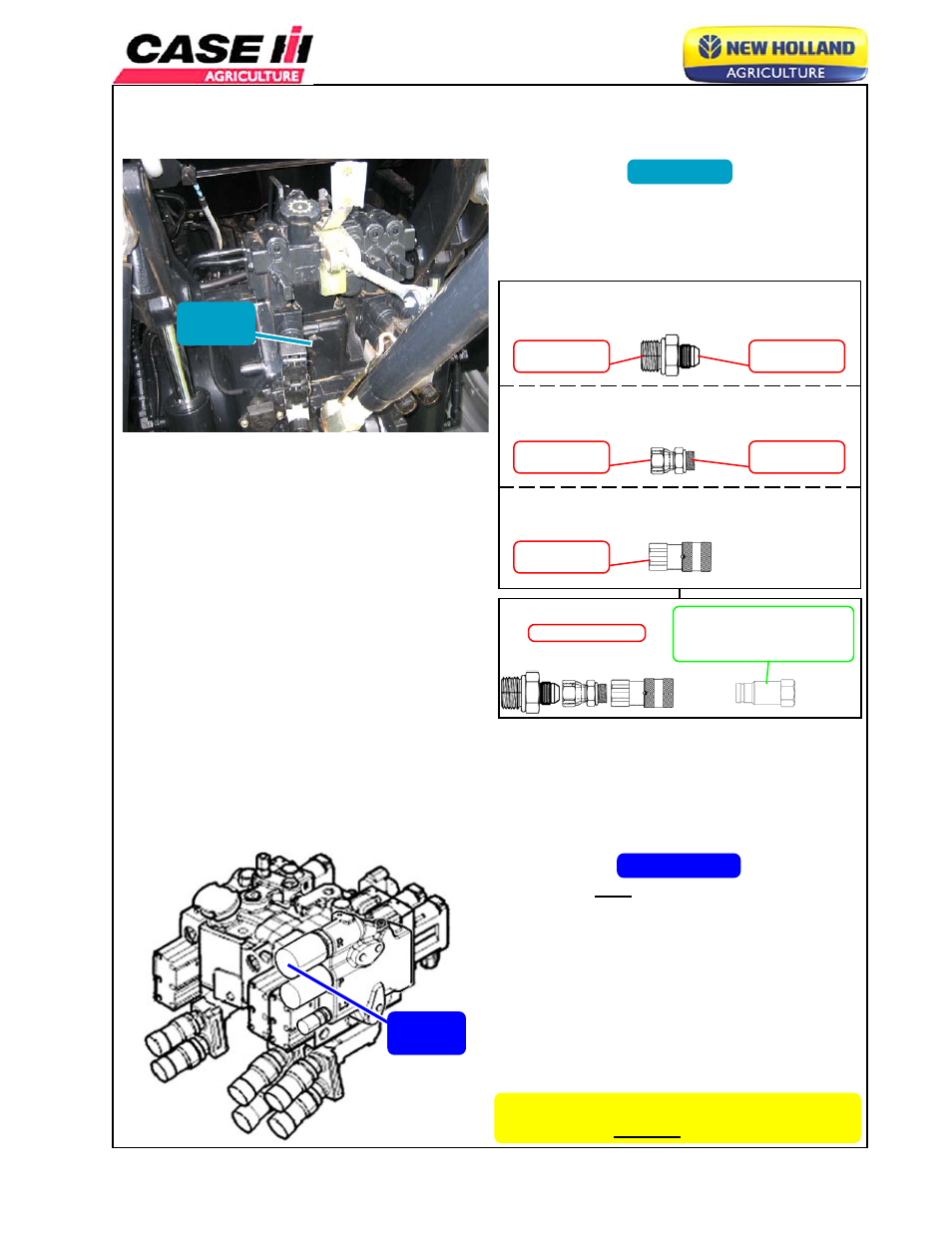

Puma 165, 180, 195, 210, & 225
T7000 Series
Case Drain
If the tractor is not equipped with a 3/8” body
size ISO 16028 zero pressure female flat face
case drain coupler, then order and install the
following:
IMPORTANT: ALWAYS connect case drain
first, motor return second, then pressure line to
prevent motor damage. ALWAYS disconnect
pressure line first, motor return second, then
case drain last to prevent motor damage.
CNH P/N 85999238
Eaton Aeroquip P/N FF-371-8FO
Eaton Aeroquip P/N GG106-NP08-12
Parker P/N 8-12F42EDMXS
Eaton Aeroquip P/N 2266-8-8S
Parker P/N 8F65OXS
3/4-16
FJIC
3/4-16
MORB
3/4-16
FORB
flush face coupler
connected to fan case drain
hose from Great Plains
}
connect to tractor
Motor Return
(with power beyond)
If tractor is equipped with power beyond, then
connect motor return to coupler shown.
G3/4-14
BSPP
3/4-16
MJIC
NOTE: See next page for information for
motor return without power beyond.
Motor
Return
Case
Drain
