17 X-Press Trailing Kit
Operating Instructions
3. Adjustment/Operation
3. Adjustment / Operation
3.1 Description

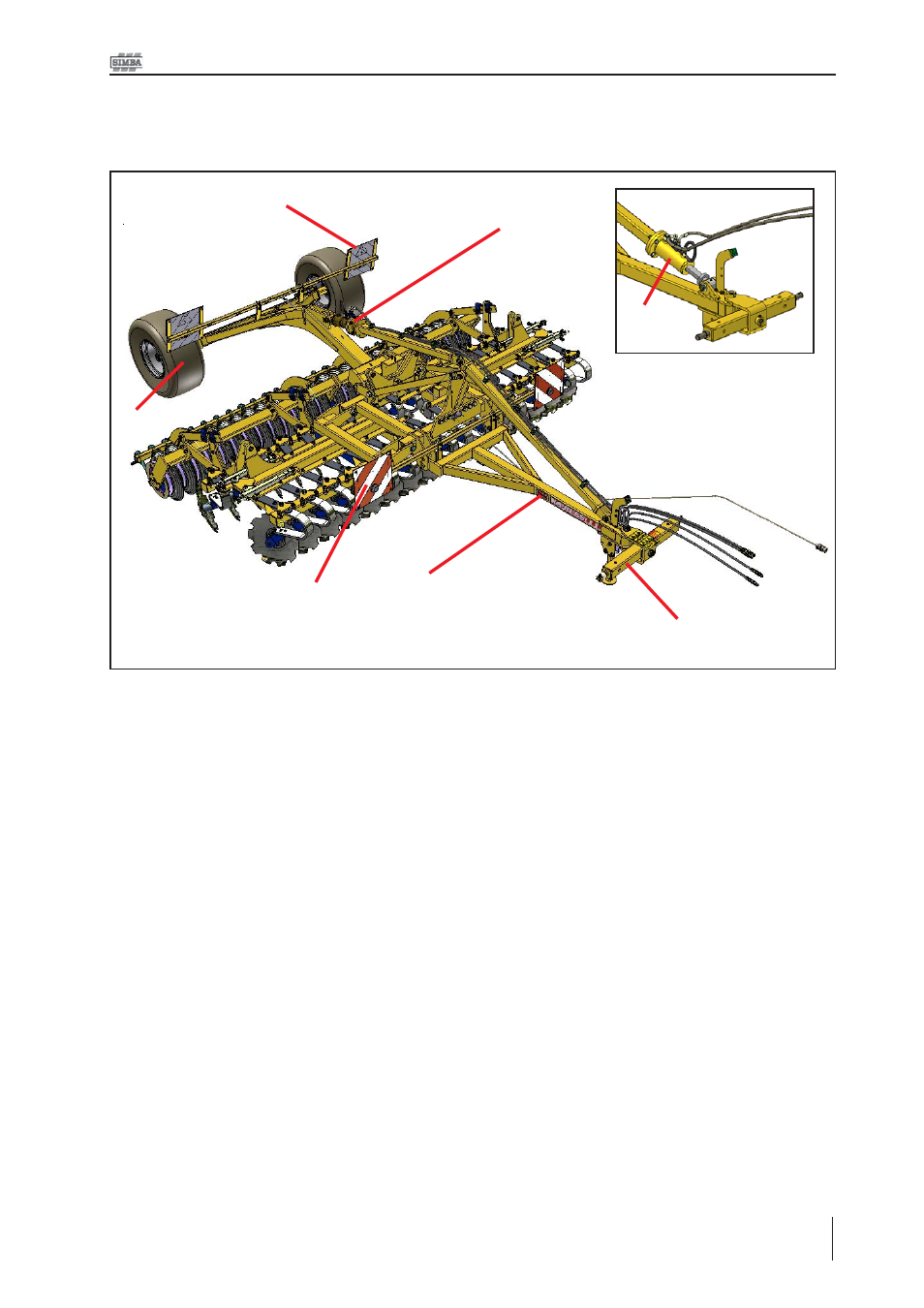

Fig. 3.01: Simba 4m Mounted X-Press with Trailing Kit fitted
1. Bar Coupler
2. Drawbar
3. Front Lights
4. Transport Wheels
5. Rear Lights
6. Rear Lift Cylinder
7. Optional Front Lift Cylinder
1
2
5
4
3
6
The SIMBA X-Press Trailing Kit can be fitted
to 4m Folding Mounted X-Presses
manufactured from 2007 onwards. The kit
converts a 3 point linkage machine requiring
125-150hp into a semi mounted trailed unit
requiring 100-125hp.
The wheel units are used for road transport
and headland turns. The machine is lifted
clear of the ground using the rear hydraulic
cylinder.
7
